• Model NO.：75-5 cable
• Wire Core Material：Bare Copper Wire
• Certification：RoHS, CE, ISO9001
• Brand：Hanli
• Model No.：Coaxial Cable 75-5 & 75-3
• Transport Package：200
• Specification：1,0.8CU+PE+B+PVC
• Trademark：HANLI
• Origin：Zhejiang
• HS Code：8544200000
• Production Capacity：2000000,Month

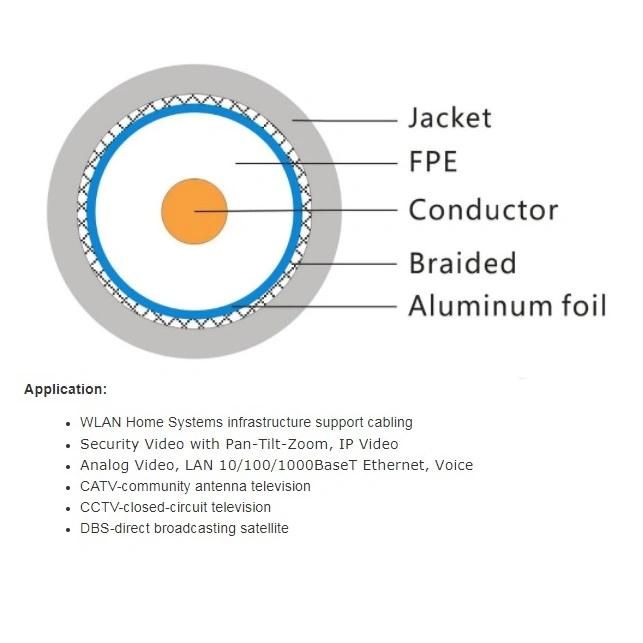

Inner conductorPlain copperΦ0.65±0.025mmDielectricF. PEΦ3.7±0.10mmOuter conductorTinned copper112x0.13mmShield coverage 95%SheathPVC o rLSZHΦ5.00±0.10mmElectrical & Mechanical CharacteristicsImpedance53±3 Ohm0Nominal capacitance94pF/mVelocity of propagation66%Insulation resistance>2000 Mohm.KmInner conductor resistance35.0 Ohm/KmOuter conductorresistance16.5Ohm/KmTest/Operatig Voltage(max)5KV/2KVOperating temperaturerange-30°C-+70°CCopper Weight18.7Kg/KmCable weight(approx.)39.9Kg/KmScreening effectiveness100-900MHz>55dBAttenuationFrequency(MHz)Attenuation(dB/100m)Attenuation(dB/100ft)509.12.7710013.13.9920019.45.9140028.48.6650032.29.8260035.710.8886044.813.66100049.014.94Return Loss30-300MHz>26dB300-600MHz>25dB600-900MHz>24dB
