Coaxial Cable 50 Ohm D-Fb Series 5D-Fb/Computer Cable/ Data Cable/ Communication Cable/ Audio Cable

Zhejiang Kuayue Cable Co., Ltd.
  • Application：DVD Player, Monitor, Telephone, iPod, Microphone, Coaxial Cable
  • Color：Black
  • Type：Coaxial
  • Species：Coaxial Cable
  • Connector：RCA
  • Material Shape：Round Wire

Base Info

  • Model NO.：50 ohm D-Fb
  • Wire Core Material：Bare Copper Wire
  • Certification：RoHS, CE, ISO9001
  • Brand：Hanli
  • Model No.：Coaxial Cable 50 Ohm D-Fb Series 5D-Fb
  • Transport Package：200
  • Specification：1,0.8CU+PE+B+PVC
  • Trademark：HANLI
  • Origin：Zhejiang
  • HS Code：8544200000
  • Production Capacity：2000000,Month

Description

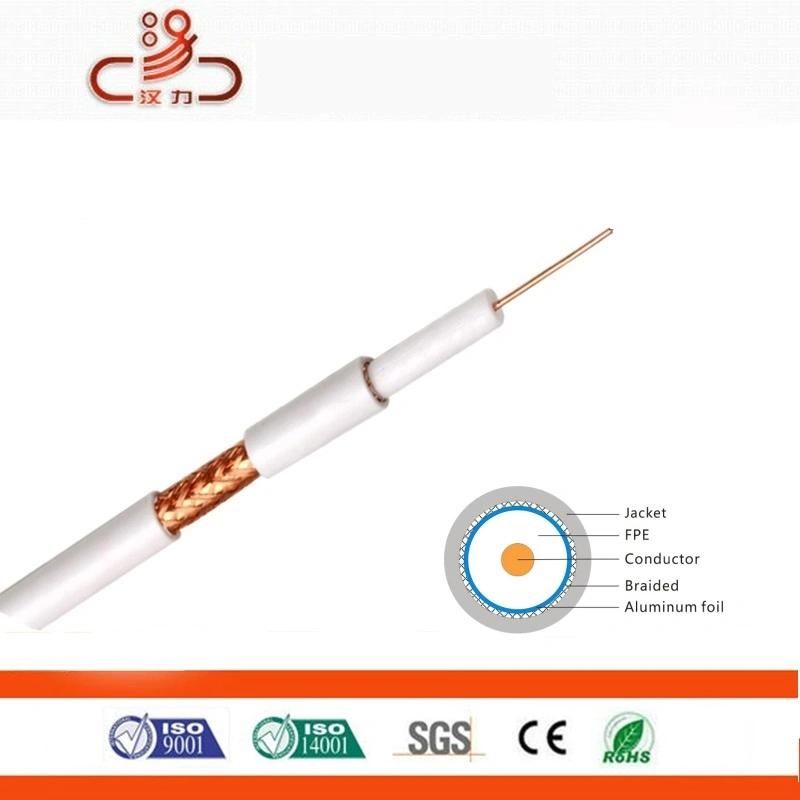

Inner conductorPlain copperΦ1.8±0.025mmDielectricF. PEΦ5.0±0.10mmOuter conductorTinned copper112x0.13mmShield coverage 95%SheathPVC o rLSZHΦ7.5±0.10mmElectrical & Mechanical CharacteristicsImpedance53±3 Ohm0Nominal capacitance94pF/mVelocity of propagation66%Insulation resistance>2000 Mohm.KmInner conductor resistance35.0 Ohm/KmOuter conductorresistance16.5Ohm/KmTest/Operatig Voltage(max)5KV/2KVOperating temperaturerange-30°C-+70°CCopper Weight18.7Kg/KmCable weight(approx.)39.9Kg/KmScreening effectiveness100-900MHz>55dBAttenuationFrequency(MHz)Attenuation(dB/100m)Attenuation(dB/100ft)509.12.7710013.13.9920019.45.9140028.48.6650032.29.8260035.710.8886044.813.66100049.014.94Return Loss30-300MHz>26dB300-600MHz>25dB600-900MHz>24dBCoaxial Cable 50 Ohm D-Fb Series 5D-Fb/Computer Cable/ Data Cable/ Communication Cable/ Audio CableCoaxial Cable 50 Ohm D-Fb Series 5D-Fb/Computer Cable/ Data Cable/ Communication Cable/ Audio CableCoaxial Cable 50 Ohm D-Fb Series 5D-Fb/Computer Cable/ Data Cable/ Communication Cable/ Audio CableCoaxial Cable 50 Ohm D-Fb Series 5D-Fb/Computer Cable/ Data Cable/ Communication Cable/ Audio CableCoaxial Cable 50 Ohm D-Fb Series 5D-Fb/Computer Cable/ Data Cable/ Communication Cable/ Audio CableCoaxial Cable 50 Ohm D-Fb Series 5D-Fb/Computer Cable/ Data Cable/ Communication Cable/ Audio CableCoaxial Cable 50 Ohm D-Fb Series 5D-Fb/Computer Cable/ Data Cable/ Communication Cable/ Audio Cable

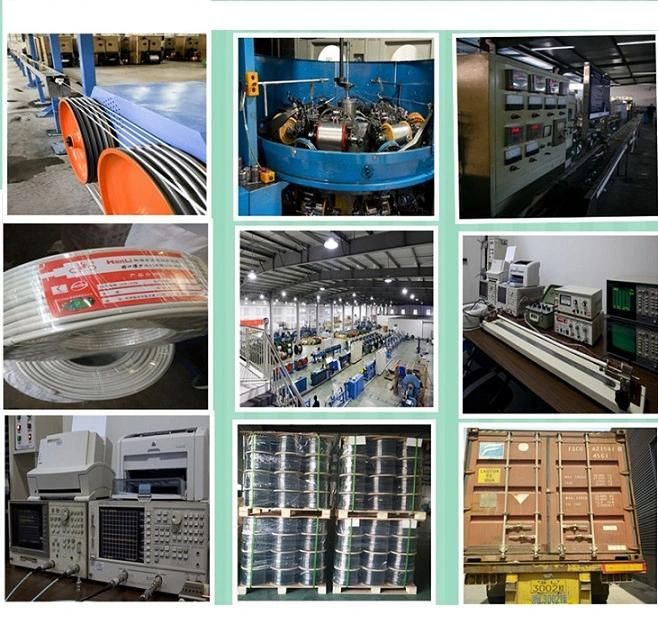

Welcome to visit our factory and  get our samples.
