Drop Wire Xdsl Telephone/Computer Cable/ Data Cable/Network Cable

Zhejiang Kuayue Cable Co., Ltd.
  • Application：Drop Wire Idsl Telephone
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PE
  • Type：Drop Wire Idsl Telephone
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：drop wire IDSL telephone
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS
  • Model：Drop Wire Idsl Telephone
  • Brand：Hanli
  • Transport Package：305,1000m
  • Specification：24awg
  • Trademark：hanli
  • Origin：Zhejiang
  • HS Code：8544491100
  • Production Capacity：2000000m,Month

Description

A-Outdoor Cable02YCellular Polyethylene (FOAM PE) insulationF Continuous core filling(L)2Y Laminated sheath(copolymer-coated aluminium tape laminated to PE outer sheath)SR Corrugated steel tapebArmouringT Messenger of galvanized steel wiresStIIIStar quad in local cablesBd Unit-type stranding
Electrical PropertiesNominal Conductor Diametermm0.40.60.8Conductor Gauge SizeAWG26-20Conductor Sizemm20.1260.2830.5Maximum Average Conductor Resistance @20°C/km1436334.6Minimum Insulation Resistance @500V DCM.km500050005000Maximum Mutual Capacitance @800Hz 95% of all valuesnF/km404040                                                              100% of all valuesnF/km424242Capacitance Unbalance @800Hz pair-to-pair             K1          100% of values maxpF/500m980800800                        98% of values  maxpF/500m420400400         K9-12    100% of values maxpF/500m800300300                        90% of values  maxpF/500m200100100Maximum Conductor Loop Resistance @20°C/km30013073.2Impedance @0.8KHz 994665500Maximum Average Attenuation @0.8KHzdB/km1.450.910.68Dielectric Strength 50Hz             Conductor to Conductor (2mins)V AC500500500         Conductor to Screen (2mins)V AC200020002000Maximum Operating Voltage Peak ValueV150225225Nominal Insulation Thickness (Air Core)mm0.200.250.3                                                  (Jelly Filled)mm0.260.360.44Nominal Insulated Conductor Diameter (Air Core)mm0.81.11.4                                                                (Jelly Filled)mm0.921.321.68




Temperature range during operation (fixed state): -30°C - +70°C
Temperature range during installation (mobile state): -20°C - +50°C
Minimum bending radius: 10 x Overall Diameter
Drop Wire Xdsl Telephone/Computer Cable/ Data Cable/Network CableDrop Wire Xdsl Telephone/Computer Cable/ Data Cable/Network CableDrop Wire Xdsl Telephone/Computer Cable/ Data Cable/Network CableDrop Wire Xdsl Telephone/Computer Cable/ Data Cable/Network CableDrop Wire Xdsl Telephone/Computer Cable/ Data Cable/Network Cable

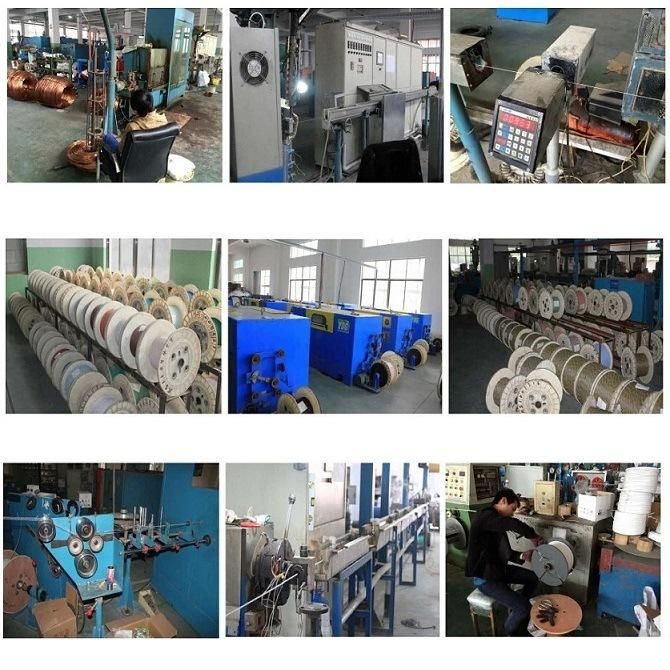

Welcome to visit our factory and  get our samples.
  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
