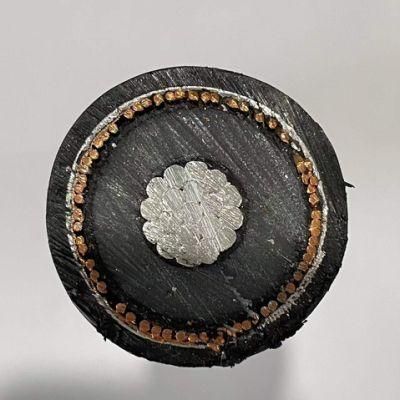

Na2xs (FL) 2y 12/20 Kv 1X95/50mm2 Longitudinal Sealing HDPE Cable
Henan Hongda Cable Co., Ltd.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：HDPE
- Material Shape：Round Wire
Base Info
- Model NO.：NA2XS(FL)2Y 12,20 KV 1X95,50mm2
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE, RoHS
- Model：Na2xs(FL)2y
- Brand：Hongda
- Armour：Non
- Conductor Material：Copper,Aluminum
- Standard：VDE 0482-332-1-2, DIN En 60332-1-2 , IEC 60332-1
- Quality Guarantee：Ten Years
- Core：1core,Three Cores
- Insulated Color：as Your Requirement
- Sheath Color：Black
- Screen：Copper Wires
- Manufacture：Yes
- Transport Package：Wooden Drum
- Specification：12,20 KV 1X95,50mm2
- Trademark：Hongda
- Origin：China, Henan
- HS Code：8544492100
- Production Capacity：1000km,Per Months
Description
| Conductor | N | According to VDE Standard (No abbreviation for copper conductor) |
| A | Aluminum conductors | |
| Y | Insulation of thermoplastic Polyvinyl chloride (PVC) | |
| 2X | Insulation cross-linked Polyethylene (XLPE) | |
| Concentric Conductor, Shielding | C | Concentric conductors of copper wires and copper tape, helically wounded |
| CW | Concentric conductors of copper wires in wave conal formation and and copper tape, helically wounded | |
| CE | Concentric conductors of copper wires and copper tape over each individual conductor, helically wounded | |
| Shielding | S | Shielding of copper wires and copper tape, helically wounded |
| SE | Shielding of copper wires and copper tape over each individual conductor, helically wounded | |
| (F) | Longitudinally water-proof shielding | |
| Armor | B | Armor of steel tape |
| F | Armor of galvanized flat steel wires | |
| G | Counter helix of galvanized steel tape | |
| Jacket | K | Lead jacket |
| Outer Jacket | Y | PVC jacket |
| 2Y | PE jacket | |
| Cable for U0/U 0.6/1 kV are additionally designated with | ||
| -J | Cables with green-yellow (green-natural) conductor are marked with protective conductor | |
| -O | Cables without green-yellow (green-natural) conductor are marked without protective conductor | |
| Description & No. Conductors x cross-sec. mm2, Nominal Voltage | Operation Voltage max. | Insul. Thick-ness mm | Jacket Thick-ness mm | Outer | Dia. min.-max. Copper Weight | kg/km Alu weight kg/km | Weight ca. kg/km | AWG | NA2XSY 6/10kV 1X50 rm/16 | 12 | 3.4 | 2.5 | 24.0 - 29.0 | 182.0 | 145.0 | 780.0 | 1 | NA2XSY 6/10kV 1X70 rm/16 | 12 | 3.4 | 2.5 | 26.0 - 31.0 | 182.0 | 203.0 | 875.0 | 2/0 | NA2XSY 6/10kV 1X95 rm/16 | 12 | 3.4 | 2.5 | 27.0 - 32.0 | 182.0 | 276.0 | 990.0 | 3/0 | NA2XSY 6/10kV 1X120 rm/16 | 12 | 3.4 | 2.5 | 29.0 - 34.0 | 182.0 | 348.0 | 1110.0 | 4/0 | NA2XSY 6/10kV 1X150 rm/16 | 12 | 3.4 | 2.5 | 30.0 - 35.0 | 182.0 | 435.0 | 1240.0 | 300 kcmil | NA2XSY 6/10kV 1X150 rm/25 | 12 | 3.4 | 2.5 | 30.0 - 35.0 | 283.0 | 435.0 | 1310.0 | 300 kcmil | NA2XSY 6/10kV 1X185 rm/25 | 12 | 3.4 | 2.5 | 32.0 - 37.0 | 283.0 | 537.0 | 1460.0 | 350 kcmil | NA2XSY 6/10kV 1X185 rm/16 | 12 | 3.4 | 2.5 | 32.0 - 37.0 | 182.0 | 537.0 | 1405.0 | 350 kcmil | NA2XSY 6/10kV 1X240 rm/25 | 12 | 3.4 | 2.5 | 34.0 - 39.0 | 283.0 | 696.0 | 1660.0 | 500 kcmil | NA2XSY 6/10kV 1X240 rm/16 | 12 | 3.4 | 2.5 | 34.0 - 39.0 | 182.0 | 696.0 | 1615.0 | 500 kcmil | NA2XSY 6/10kV 1X300 rm/25 | 12 | 3.4 | 2.5 | 36.0 - 41.0 | 283.0 | 870.0 | 1910.0 | 600 kcmil | NA2XSY 6/10kV 1X400 rm/35 | 12 | 3.4 | 2.5 | 40.0 - 45.0 | 394.0 | 1160.0 | 2315.0 | 750 kcmil | NA2XSY 6/10kV 1X500 rm/35 | 12 | 3.4 | 2.5 | 43.0 - 48.0 | 394.0 | 1450.0 | 2750.0 | 1000 kcmil | | NA2XSY 12/20kV 1X50 rm/16 | 24 | 5.5 | 2.5 | 28.0 - 33.0 | 182.0 | 145.0 | 950.0 | 1 | NA2XSY 12/20kV 1X70 rm/16 | 24 | 5.5 | 2.5 | 30.0 - 35.0 | 182.0 | 203.0 | 1110.0 | 2/0 | NA2XSY 12/20kV 1X95 rm/16 | 24 | 5.5 | 2.5 | 31.0 - 36.0 | 182.0 | 276.0 | 1220.0 | 3/0 | NA2XSY 12/20kV 1X120 rm/16 | 24 | 5.5 | 2.5 | 33.0 - 38.0 | 182.0 | 348.0 | 1310.0 | 4/0 | NA2XSY 12/20kV 1X150 rm/16 | 24 | 5.5 | 2.5 | 34.0 - 39.0 | 182.0 | 435.0 | 1460.0 | 300 kcmil | NA2XSY 12/20kV 1X150 rm/25 | 24 | 5.5 | 2.5 | 34.0 - 39.0 | 283.0 | 435.0 | 1520.0 | 300 kcmil | NA2XSY 12/20kV 1X185 rm/16 | 24 | 5.5 | 2.5 | 36.0 - 41.0 | 182.0 | 537.0 | 1660.0 | 350 kcmil | NA2XSY 12/20kV 1X185 rm/25 | 24 | 5.5 | 2.5 | 36.0 - 41.0 | 283.0 | 537.0 | 1720.0 | 350 kcmil | NA2XSY 12/20kV 1X240 rm/25 | 24 | 5.5 | 2.5 | 39.0 - 44.0 | 283.0 | 696.0 | 1910.0 | 500 kcmil | NA2XSY 12/20kV 1X240 rm/16 | 24 | 5.5 | 2.5 | 39.0 - 44.0 | 182.0 | 696.0 | 1860.0 | 500 kcmil | NA2XSY 12/20kV 1X300 rm/25 | 24 | 5.5 | 2.5 | 41.0 - 46.0 | 283.0 | 870.0 | 2220.0 | 600 kcmil | NA2XSY 12/20kV 1X400 rm/35 | 24 | 5.5 | 2.5 | 44.0 - 49.0 | 394.0 | 1160.0 | 2620.0 | 750 kcmil | NA2XSY 12/20kV 1X500 rm/35 | 24 | 5.5 | 2.5 | 47.0 - 52.0 | 394.0 | 1450.0 | 3030.0 | 1000 kcmil | | Description & No. Conductors x cross-sec. mm2, Nominal Voltage | Operation Voltage max. | Insul. Thick-ness mm | Jacket Thick-ness mm | Outer | Dia. min.-max. Copper Weight | kg/km Alu weight kg/km | Weight ca. kg/km | AWG | NA2XSY 18/30kV 1X50 rm/16 | 36 | 8.0 | 2.5 | 33.0 - 38.0 | 182.0 | 145.0 | 1260.0 | 1 | NA2XSY 18/30kV 1X70 rm/16 | 36 | 8.0 | 2.5 | 35.0 - 40.0 | 182.0 | 203.0 | 1360.0 | 2/0 | NA2XSY 18/30kV 1X95 rm/16 | 36 | 8.0 | 2.5 | 36.0 - 41.0 | 182.0 | 276.0 | 1510.0 | 3/0 | NA2XSY 18/30kV 1X120 rm/16 | 36 | 8.0 | 2.5 | 38.0 - 43.0 | 182.0 | 348.0 | 1610.0 | 4/0 | NA2XSY 18/30kV 1X150 rm/25 | 36 | 8.0 | 2.5 | 39.0 - 44.0 | 283.0 | 435.0 | 1810.0 | 300 kcmil | NA2XSY 18/30kV 1X150 rm/16 | 36 | 8.0 | 2.5 | 39.0 - 44.0 | 182.0 | 435.0 | 1760.0 | 300 kcmil | NA2XSY 18/30kV 1X185 rm/16 | 36 | 8.0 | 2.5 | 41.0 - 46.0 | 182.0 | 537.0 | 1960.0 | 350 kcmil | NA2XSY 18/30kV 1X185 rm/25 | 36 | 8.0 | 2.5 | 41.0 - 46.0 | 283.0 | 537.0 | 2020.0 | 350 kcmil | NA2XSY 18/30kV 1X240 rm/25 | 36 | 8.0 | 2.5 | 43.0 - 48.0 | 283.0 | 696.0 | 2260.0 | 500 kcmil | NA2XSY 18/30kV 1X240 rm/16 | 36 | 8.0 | 2.5 | 43.0 - 48.0 | 182.0 | 696.0 | 2210.0 | 500 kcmil | NA2XSY 18/30kV 1X300 rm/25 | 36 | 8.0 | 2.5 | 46.0 - 51.0 | 283.0 | 870.0 | 2560.0 | 600 kcmil | NA2XSY 18/30kV 1X400 rm/35 | 36 | 8.0 | 2.5 | 49.0 - 54.0 | 394.0 | 1160.0 | 2960.0 | 750 kcmil | NA2XSY 18/30kV 1X500 rm/35 | 36 | 8.0 | 2.6 | 52.0 - 57.0 | 394.0 | 1450.0 | 3460.0 | 1000 kcmil | | ||||||||||||||||
Packaging&Delivery.

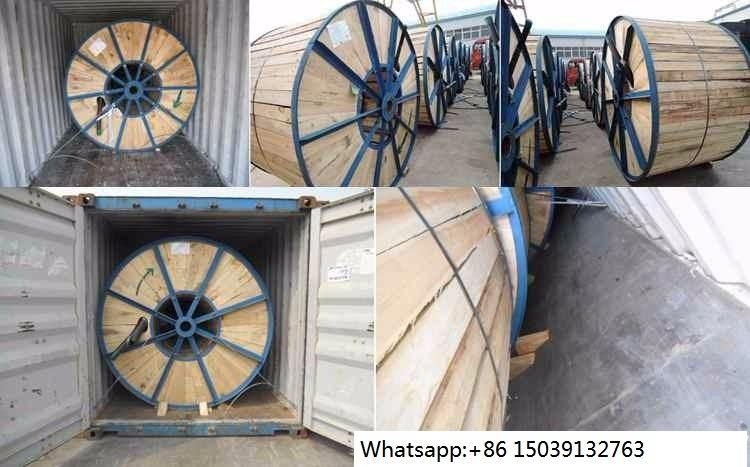

Packaging Details:Wooden drums,steel wooden drums or as your requirement
Delivery Time:Normally within 30 days(detailly depend on the order quantity)
