3*25+54.6+1*16 Aluminum Cable Twisted Overhead Cable

Henan Hongda Cable Co., Ltd.
  • Application：Overhead
  • Voltage：Low and Medium Voltage Cable
  • Current：DC Cable
  • Insulation Material：XLPE
  • Sheath Material：No Jacket
  • Material Shape：Round Wire

Base Info

  • Wire Core Material：Aluminum and All Alloy Aluminum
  • Certification：ISO, CCC
  • Model：ABC
  • Brand：OEM
  • Standard：NFC 33209
  • Conductor：Aluminum and All Alloy Conductor

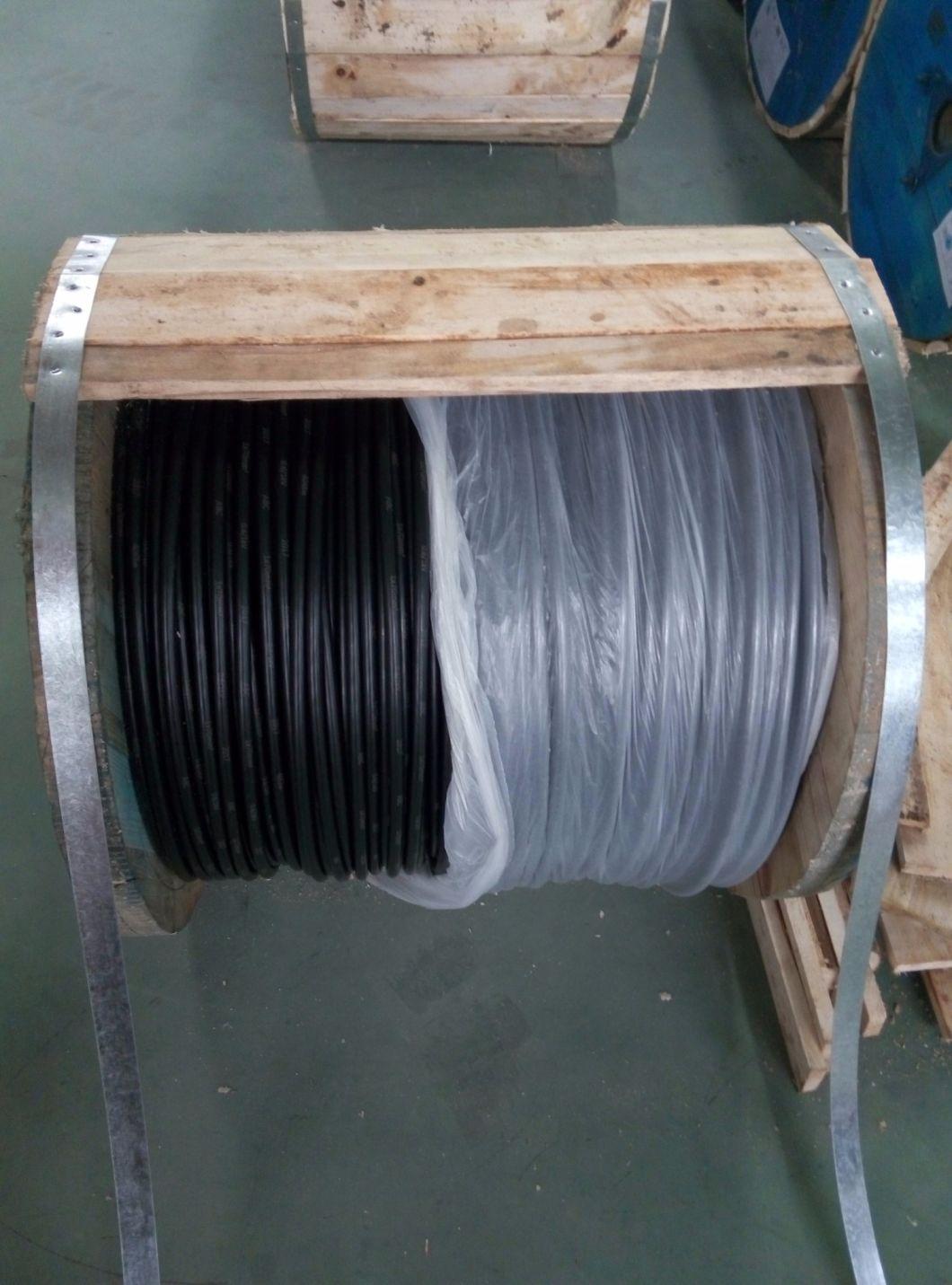

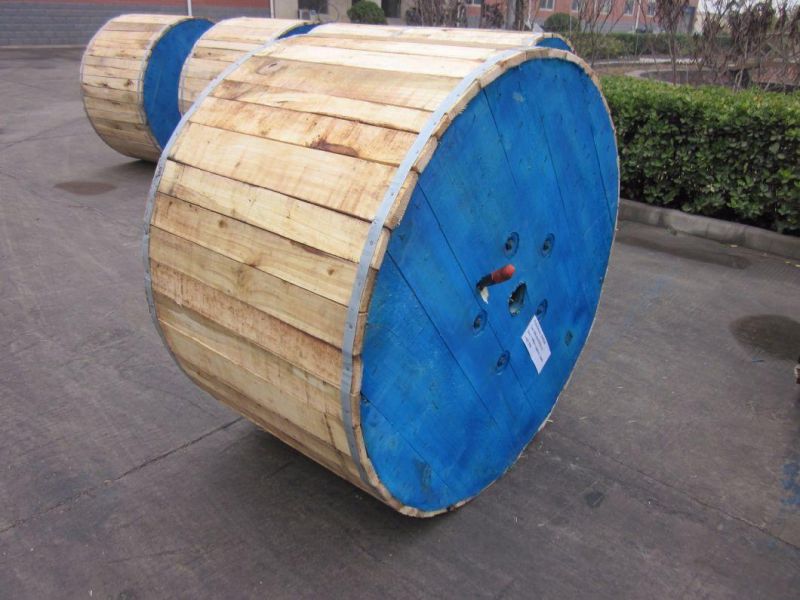

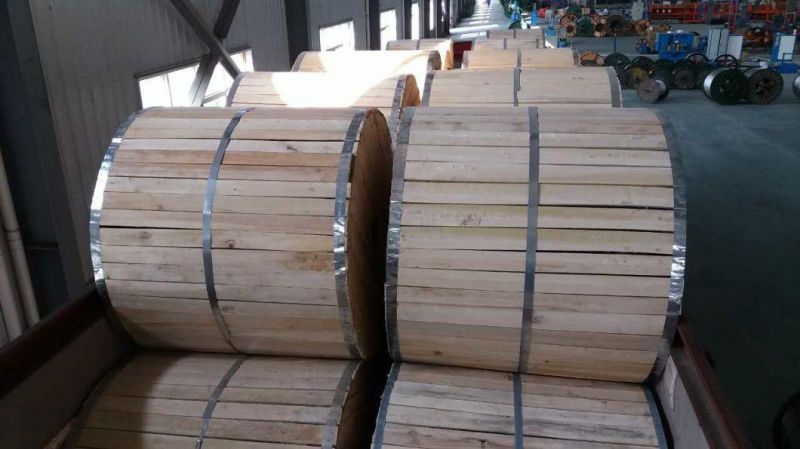

  • Transport Package：in Drum or in Pallent
  • Specification：3*70+54.6+1*16
  • Trademark：NO
  • Origin：Henan
  • HS Code：8544492100
  • Production Capacity：10000 M Per Day

Description

SPEC
mm2Conductor structure  Insulation
MaterialInsulation
Thickness
(mm)Approx overall diameter
(mm)Approx weight
(kg/km)Phase (compacted Al)Neutral
(alloy)No./mmNo./mm1*16+1*167/1.727/1.72XLPE
Or
PVC
or
PE

  1.212.5110.11*25+1*257/2.157/2.151.214.9163.91*35+1*357/2.547/2.541.417.5229.01*50+1*507/2.927/2.921.420.1300.01*70+1*7019/2.1519/2.151.423.6423.21*95+1*9519/2.5419/2.541.627.6585.42*16+1*167/1.727/1.721.214.2175.82*25+1*257/2.157/2.151.216.7258.42*35+1*357/2.547/2.541.419.7361.22*50+1*507/2.927/2.921.422.5472.12*70+1*7019/2.1519/2.151.426.1658.32*95+1*9519/2.5419/2.541.630.5908.23*16+1*167/1.727/1.721.216.3241.53*25+1*257/2.157/2.151.219.1353.63*35+1*357/2.547/2.541.422.5493.53*50+1*507/2.927/2.921.425.7644.13*70+1*7019/2.1519/2.151.429.7895.23*95+1*9519/2.5419/2.541.634.61233.5
