Mgsgo Screened Rubber Sheath Cable Marine Power Cable for Shipboard

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Chloroprene Based Outer Jacket
  • Insulation Material：Epr
  • Material Shape：Round Wire

Base Info

  • Model NO.：MGSGO Cable
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multi core
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

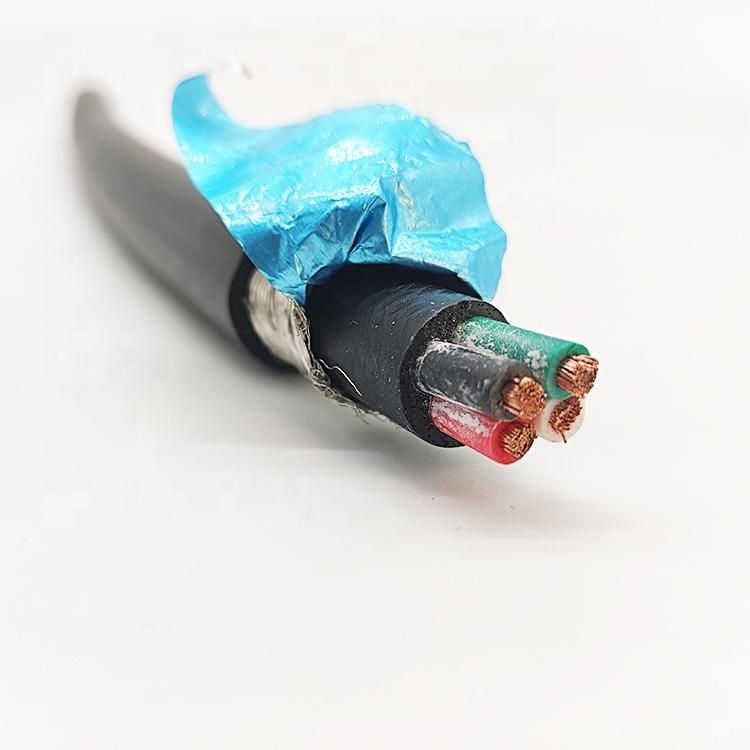

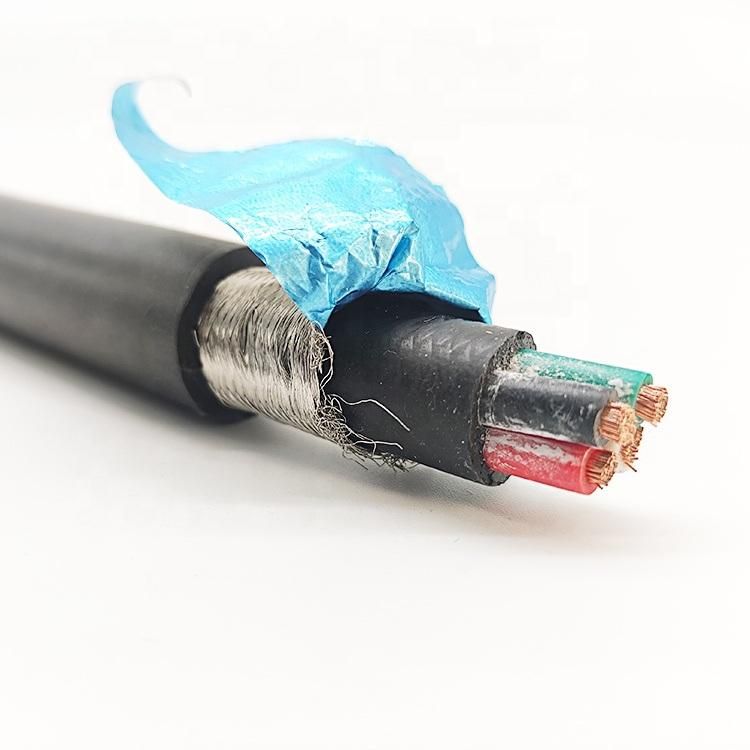

ItemMGSGO Marine CableConductorStranded copper conductorsInsulationHeat resistant EPR insulationScreen* Filling compound covering all conductors
* Foil shield
* Plain copper braided shield
* Polyester tapeSheathChloroprene based outer jacketNominal VoltageU0/U 0.6/1 kVTemperature RangeMax. +85°C/+185°FMinimum Bending RadiusApprox. 5x cable ØColorOptionalMeter MarkingSupportCertificationCEApplicationHalogen-free power cables for marine craft are used for permanent installation on ships in all rooms and open decks as control and power cables.Mgsgo Screened Rubber Sheath Cable Marine Power Cable for Shipboard
