China Price RoHS CE Approved UTP Cat5e Flat Elevator Cable LAN Cable Networking Cables

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Cat 5
  • Material Shape：Round Wire
  • Conductor Type：Stranded

Base Info

  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, ETL
  • Model：Cat5
  • Brand：Risun
  • Color：Gray, White, Black
  • Inner Conductor：24 AWG Bc,CCA
  • Nom. Thick：0.55mm
  • Export Length：100m,Roll, 200m,Roll, 305m,Roll
  • Pairs：4 Pairs
  • Transport Package：Pull out Box, Carton Box, Pallet
  • Specification：0.50cu, 0.90HDPE, 5.0PVC, LSZH, PE
  • Trademark：Risun
  • Origin：Zhejiang, China
  • HS Code：8544491100
  • Production Capacity：30000boxes,Month

Description

ElongationMin. 300%Temperature Range-20 up to +75° CTensile StrengthMin 1.68kg/mm²

Electrical Properties:

Conductor ResistanceMax. 9.38 ohm/100mResistance UnbalanceMax. 2%Insulation Resistance150 ohm/KMMutual CapacitanceMax. 5600pF/100mCapacitance UnbalanceMax. 330pF/100mImpedance100+/-15 ohmSpark Test2000VVelocity of Propagation67%

Technical Performance:

          Attenuation         RL    Next        PS Next       (Mhz)          (dB/100M)        (dB)     (dB)      (dB/100m)       1MHz               2.0         20    65.3          63.5       4MHz               4.1         23    56.3          54.2       8MHz               5.8        24.5    52.4          50.5      10MHz               6.6         25    51.3          49.2      16MHz               8.2         25    49.3          47.4      20MHz               9.3         25    48.8          46.9      25MHz              10.4         24    45.3          43.4   31.25MHz              11.7         23    43.0          41.8     62.5MHz              17.0         21    39.2          37.2     100MHz              22.0         20    36.3          34.4

Application & Certificates:


China Price RoHS CE Approved UTP Cat5e Flat Elevator Cable LAN Cable Networking CablesChina Price RoHS CE Approved UTP Cat5e Flat Elevator Cable LAN Cable Networking Cables
China Price RoHS CE Approved UTP Cat5e Flat Elevator Cable LAN Cable Networking Cables

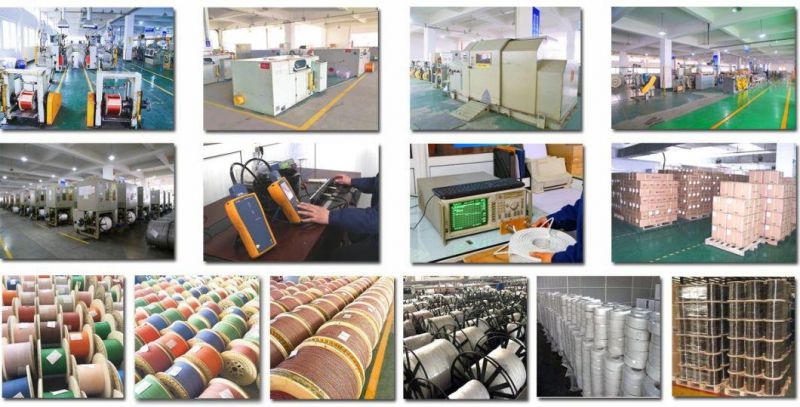

Company Introduction
RISUN is Professional in manufacturing of high quality network cable/lan cable , coaxial cable, telephone wire and alarm cable. We specialize in this field for 15 years, and have already get ETL, CE, RoHS, ISO9001,CPR certification etc.

We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.
China Price RoHS CE Approved UTP Cat5e Flat Elevator Cable LAN Cable Networking CablesChina Price RoHS CE Approved UTP Cat5e Flat Elevator Cable LAN Cable Networking Cables
Packing:
China Price RoHS CE Approved UTP Cat5e Flat Elevator Cable LAN Cable Networking Cables

FAQ

Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?

A: We are factory.


Q2. HOW LONG IS YOUR DELIVERY TIME?

A:Generally it is  5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.


Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?

A: Normally, 10kms per one specification and one color


Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.


Q5. HOW TO PROCEED AN ORDER FOR CABLES?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.


Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
A: Yes. Please inform us formally before our production.

Q7. WHAT IS YOUR TERMS OF PAYMENT?
A: Payment<=60km,100% in advance,payment >=60KM,30%TT in advance ,balance before shipment .
