Nyy H07rn-F Nyfgby 0.6/1kv Copper Conductor PVC Insulated Swa PVC Sheated Electrical Cable Size 185mm2 Aluminium Control Electric Coaxial Waterproof Wire Cable

Tianjin Feiya Electric Wire & Cable Co., Ltd.
  • Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Car, Installation in Ground, Indoors,Outdoors.
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：PVC(Polyvinyl Chloride
  • Sheath Material：PVC(Polyvinyl Chloride
  • Material Shape：Round Wire

Base Info

  • Model NO.：NYFGbY,YVZ3V
  • Wire Core Material：Copper or Aluminum
  • Certification：ISO, CCC, CE, RoHS, UL, VDE
  • Model：Nyfgby,Yvz3V
  • Brand：Feiya
  • Temperature Range：-5 Degree Till +70 Degree
  • OEM&ODM：Yes
  • Rated Voltage：0.6,1kv
  • Operating Environment：Underground
  • Material：PVC Jacket
  • Other Service：Can Be Customized
  • Use Place：Power Transmission and Distribution
  • Lowsmokezerohalogan：LSZH, Lsoh, Ls0h, Lsfh, Ohls
  • Colors：Can Be Customized
  • Transport Package：Wooden Box Packing or Pallet Shipping Containers
  • Specification：copper,aluminum,pvc
  • Trademark：Feiya
  • Origin：China
  • HS Code：8544
  • Production Capacity：80000 Meter,Meters Per Month

Description

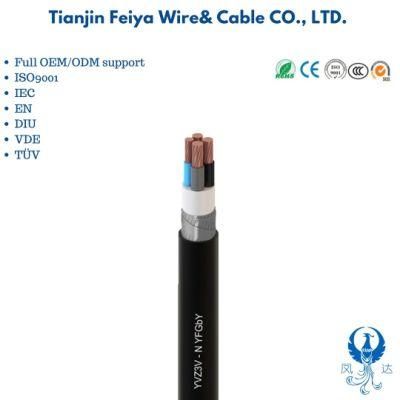

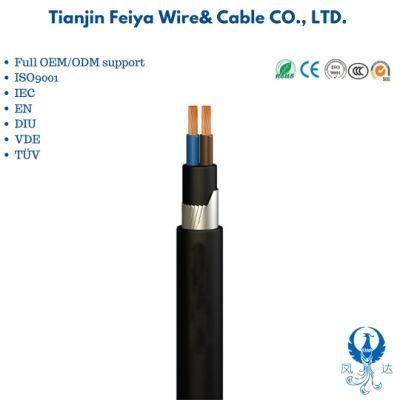

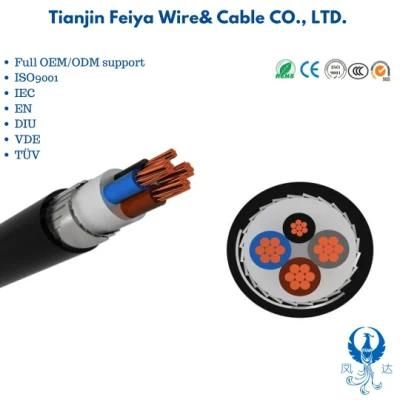

NYFGbY
0.6/1kV
Cu/PVC/SFA/PVCRated voltageUο/U = 0.6/1 kVTest voltage4 kVMax. working temp.+70ºCMax. temp. at short circuit within 5s+160ºCTemp. range during installation:-5ºC--+50ºC
fixed installation:-30ºC----+70ºCMax. tensile strenghth50 N/mm²Min. bending radius Single core: x 15 D; Multi core: x 12 D

NYFGbY 4 x (1.5-300) mm² 0.6/1kV Cu/PVC/SFA/PVC  Standard: IEC60502-1

Nos. of cores
x Nominal
cross sectionConductor typeNos. of
wires in the conductor Cable
overall
diameterCable
approx.
WeightConducror
DC resistance
at 20ºCN x mm² /N mmkg/kmΩ/km4 x 1.5SE114.747512.14 x 2.5SE116.35457.414 x 4.0SE117.97354.614 x 6.0SE119.18833.084 x 10SE121.01,1341.834 x 16SE124.51,4791.154 x 25SM728.62,0500.7274 x 35SM731.12,5800.5244 x 50SM1936.02,9950.3874 x 70SM1939.53,9480.2684 x 95SM1944.75,1860.1934 x 120SM3749.66,2740.1534 x 150SM3754.47,6430.1244 x 185SM3758.59,8300.09914 x 240SM6165.012,4350.07544 x 300SM6171.015,2400.0601
