Outdoor Use UTP Cat5e PE Jacket 305m/ Pull Box LAN Cable

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Cat 5
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：UTP Cat5e
  • Wire Core Material：Tinned Wire
  • Certification：CE, ISO, RoHS, UL, ETL SGS CPR
  • Model：UTP Cat5e
  • Brand：Risun or OEM
  • Insulation：HDPE
  • UV, Jelly, Fr：Available
  • Transport Package：305m,Pull Box, 2boxes,CTN.
  • Specification：ETL, CE, RoHS, SGS, ISO9001
  • Trademark：RISUN or OEM
  • Origin：Hangzhou, Zhejiang, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Month

Description

Basic Info.

Model NO. UTP Cat5e Wire Core Material Tinned Wire Certification CE, ISO, RoHS, UL, ETL SGS CPR Model UTP Cat5e Brand Risun or OEM Insulation HDPE UV, Jelly, Fr Available Transport Package 305m/Pull Box, 2boxes/CTN. Specification ETL, CE, RoHS, SGS, ISO9001 Trademark RISUN or OEM Origin Hangzhou, Zhejiang, China(Mainland) HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

Outdoor Use UTP Cat5e PE Jacket 305m/ Pull Box lan Cable

Product Description
Outdoor Use UTP Cat5e PE Jacket 305m/ Pull Box LAN Cable

construction:
conductor24awg (solid or strand) cu/cca/ccs
insulationhdpe 0.90±0.02mm
sheath5.0±0.1mm pvc (fr,rohs,uv)/ lsoh / pe
cores/pairs8/4

mechanical properties:
elongationmin. 300%
temperature range-20 up to +75° c
tensile strengthmin 1.68kg/mm²

electrical properties:
resistancemax. 9.38 ohm/100m
resistance unbalancemax. 2%
insulation resistance150 ohm/km
mutual capacitancemax. 5600pf/100m
capacitance unbalancemax. 330pf/100m
impedance100+/-15 ohm
spark test2000v
velocity of propagation67%

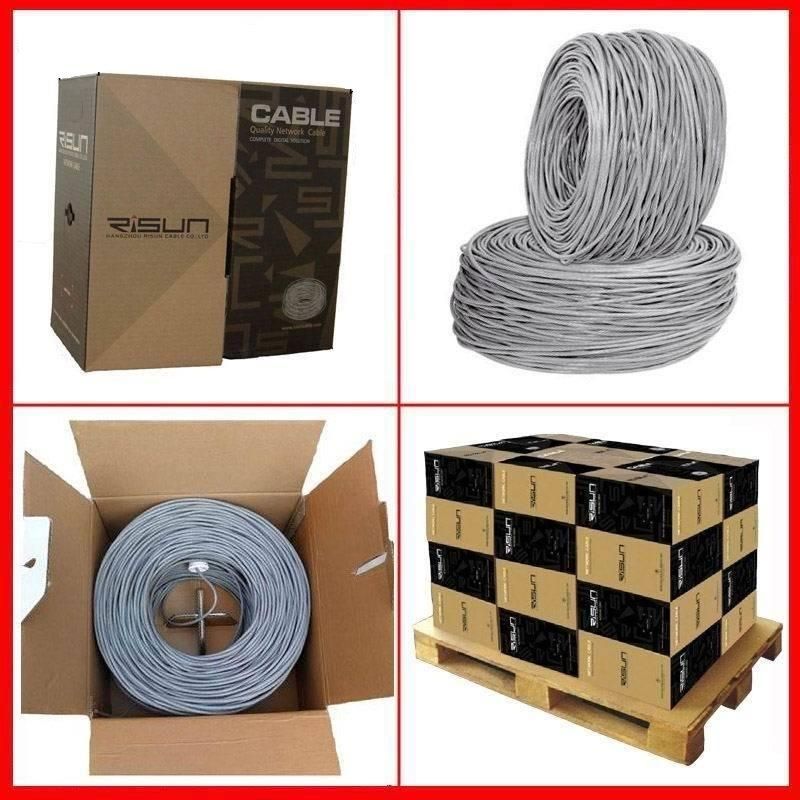

packing

1) packing lengths: 305m/roll, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.

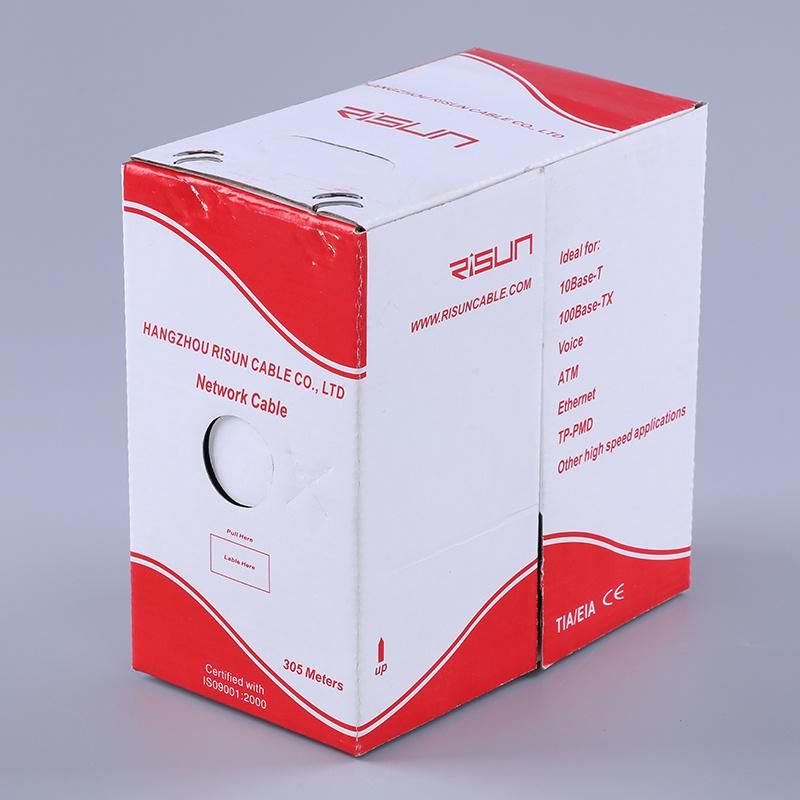

Packing:
Outdoor Use UTP Cat5e PE Jacket 305m/ Pull Box LAN Cable

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.

company profile

Risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.

95% of our goods for the export market. 15 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.

in the past 15 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.
Outdoor Use UTP Cat5e PE Jacket 305m/ Pull Box Internet Cable

process of production:
Outdoor Use UTP Cat5e PE Jacket 305m/ Pull Box Internet Cable
