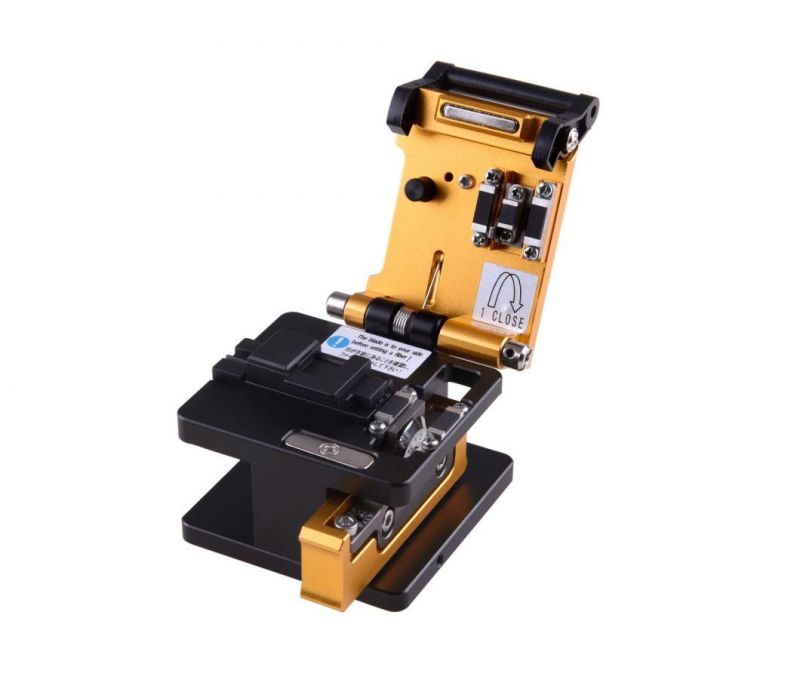

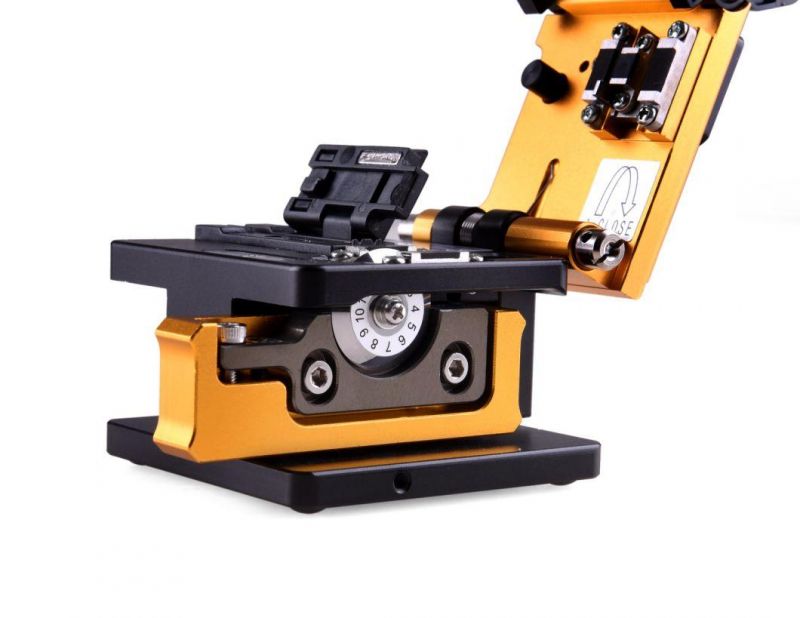

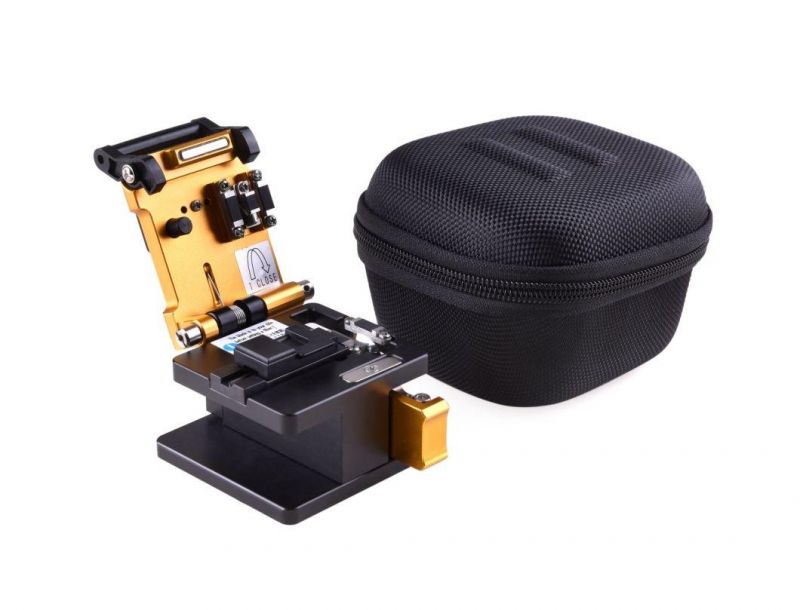

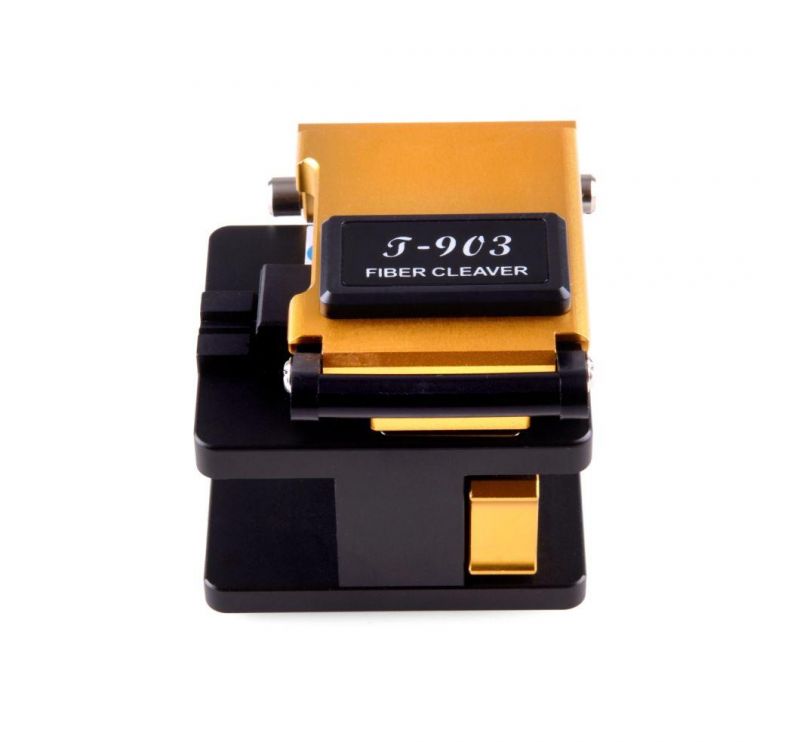

Skycom Fiber Optic Cleaver High Quality T-903
Nanjing Tianxingtong Electronic Technology Co., Ltd.- Type：Optical Fiber Cleaver
- Applicable Fibers：Sm, mm, Nz-Ds, Edf, Pigtail, Rubber-Insulated Wire
- Fiber Diameter：100~150um
- Blade Lifetime：36000 Cleaves
- Transport Package：Carton
- Specification：CE, SGS, ISO9001,
Base Info
- Model NO.：SKYCOM T-903
- Trademark：SKYCOM
- Origin：Nanjing, China
- Production Capacity：500PCS,Month
Description
Description
The T-903 is an economic multi-action and high precision fiber cleaver, standard length 16mm. Compact, slim and simple is available for application.
General
1) Weight: 0.45kg.
2) Dimensions: 63(W) x 76(D) x 63(H)mm.
Features
♦ Stable operation with Multi-Action process
♦ Typical cleave angle: 90°± 0.5°
♦ Compact & handy outfit design
♦ High precision cleaving blade with 16 cleave spots
♦ Scratch-free anodized body surface
♦ Simplified blade adjustment & replacements
♦ Built-in maintenance tool attached: on the bottom
Specification
♦ Applicable fiber: SM, MM, DS, NZ-DS, EDF, 125um OD of Nude Fiber Cable
♦ Fiber Diameter: Core of Fiber Cable single(∮0.25 & 0.9mm)
♦ Coating Diameter: 100~1000um
♦ Cleave Angle: 90°± 0.5°
♦ Cut Length of Fiber Cable 9~16mm (∮0.25mm),10~16mm (∮0.9mm)
♦ Blade Lifetime: 36000 cleaves
