23AWG FTP CAT6 4pair Twisted Pair Data Cable 305m

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC,PE,LSZH
  • Type：Cat 6
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：ftp cat6
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, CPR,ETL,SGS
  • Model：FTP CTA6
  • Brand：Risun or OEM
  • Color：as Request
  • Insulation：HDPE
  • Transport Package：305m,Pull Box, 2boxes,CTN
  • Specification：0.57cu, 1.00HDPE, 7.4VC, LSZH, PE
  • Trademark：Risun or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Month

Description

Basic Info.

Model NO. ftp cat6 Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CPR,ETL,SGS Model FTP CTA6 Brand Risun or OEM Color as Request Insulation HDPE Transport Package 305m/Pull Box, 2boxes/CTN Specification 0.57cu, 1.00HDPE, 7.4VC, LSZH, PE Trademark Risun or OEM Origin Hangzhou, China(Mainland) HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

ftp cta6 Twisted Pair Data Cable 305m 4Pair 23AWG Solid Copper PVC
Company informationFTP CAT6A Buitenkabel Soepel 100m CCA23AWG FTP CAT6 LAN Cable Double Jacket

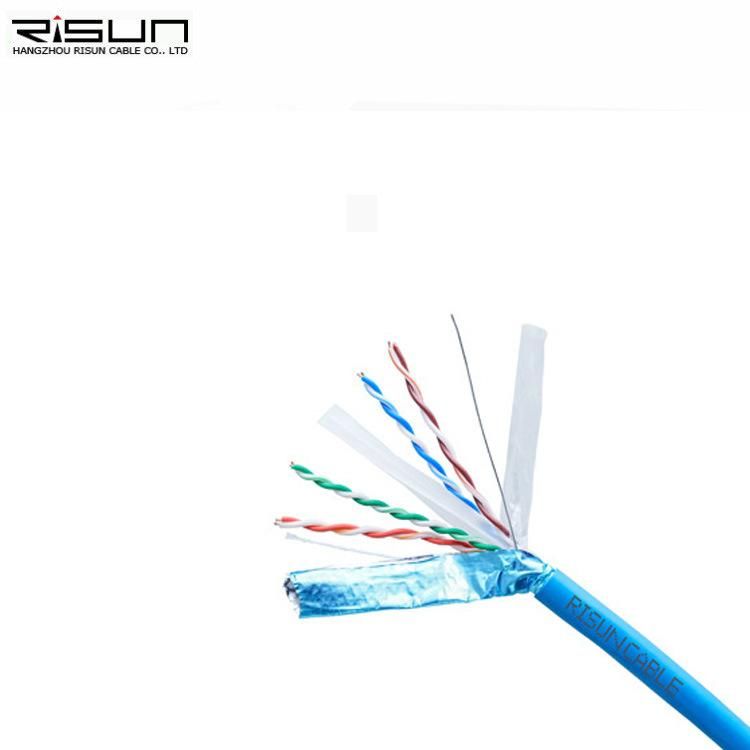

Configuration
1. Conductor: 0.57±0.01mm(23AWG) Bare copper
2. Insulation: 1.350±0.05mm FPE
3. Shield: Al Foil
4. Drain wire: 0.4mmTC
5. Ripcord
6. Sheath: LSZH

Electrical Specifications
dc Resistance, maximum7.61 ohms/100 m | 2.32 ohms/100 ft
Mutual Capacitance at Frequency4.2 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)79 %
Operating Frequency, maximum500 MHz

Packing

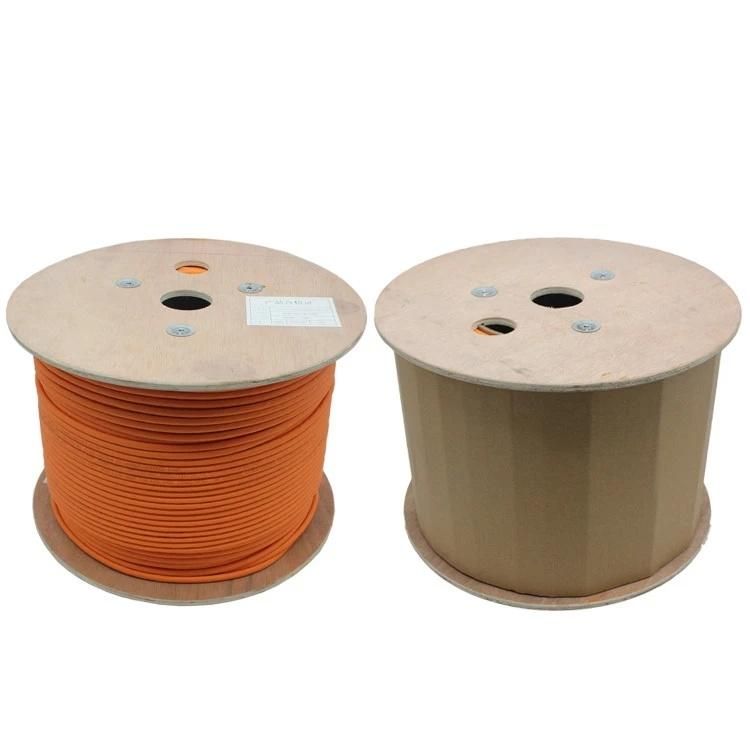

1) packing lengths: 305m/wooden drum, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.

1000FT CAT6A U/FTP 23AWG 4-Pair Ethernet Cable
1000FT CAT6A U/FTP 23AWG 4-Pair Ethernet Cableprocess of production1000FT CAT6A U/FTP 23AWG 4-Pair Ethernet Cable
FAQ:

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A: Mass production time needs 20-25 days.

Q3. Do you have any MOQ limit for order?
A: Normally, 10kms per one specification and one color.

Q4. How do you ship the goods and how long does it take to arrive?
A: Normally by sea shipping. (sample order also available by air or courier)

Q5. How to proceed an order for cables?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q6. Is it OK to print my logo on cables?
A: Yes. Please inform us formally before our production.
