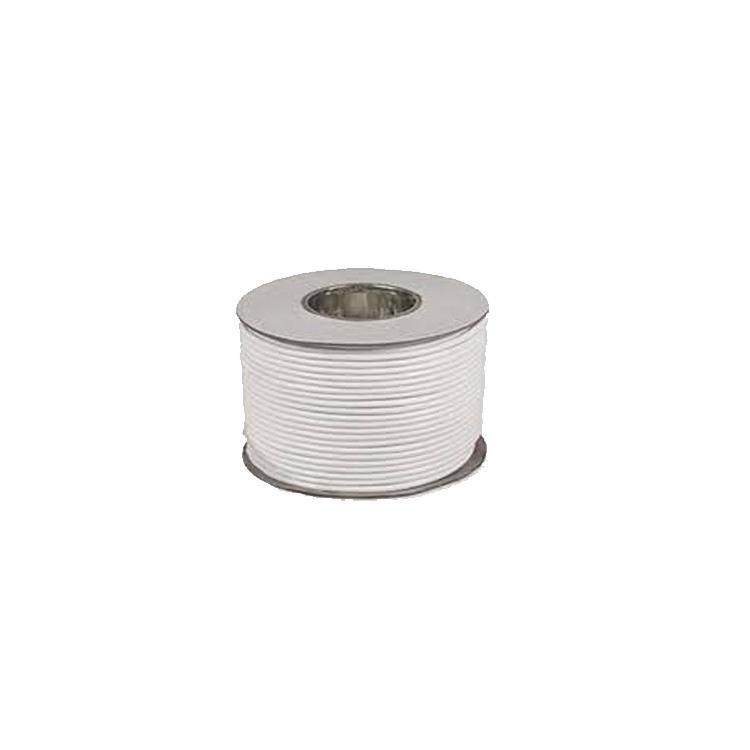

Factory Wholesale Price 75ohm Coaxial Cable

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, Coaxial Cable
  • Conductor Material：Cu,CCS,Bc,Tc
  • Cover Material：PVC,PE,LSZH
  • Type：Coaxial Cable
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：75ohm Coaxial cable
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, CPR,ETL,SGS
  • Model：75ohm
  • Brand：Risun or OEM
  • Color：Black
  • Insulaton：PE
  • Transport Package：305m,Pull Box, 2boxes,CTN
  • Specification：CPR,ETL,CE,SGS,RoHS,ISO9001
  • Trademark：Risun or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Month

Description



China 75 Ohm-European Standard-17vatc Coaxial CableCoaxial cables for satellite receiving systems.ConductorBare copper1,13+/-0,01 mmInsulationFoamed PE4,80 +/-0,10 mm1st ShieldTape Aluminum/Polyester/Aluminum 2nd ShieldAluminum alloy braid 16 x 6 x 0,12mm60%3rd ShieldTape Aluminium SheathPVC6,90+/-0,10 mmColorGreenBending radius≥ 8 x Diameter (mm) Installation

Storage temperature

 -15ºC + 70ºC



ELECTRICAL SPECIFICATIONSNominal Impedance75+/-3OhmCapacitance approx52+/-3pF/mVelocity ratio84%Attenuation at 20°C  MHzdB/100 m51.5504.12008.140011.780017.086218.395019.2135023.3175026.0215030.0300036.9

PACKING

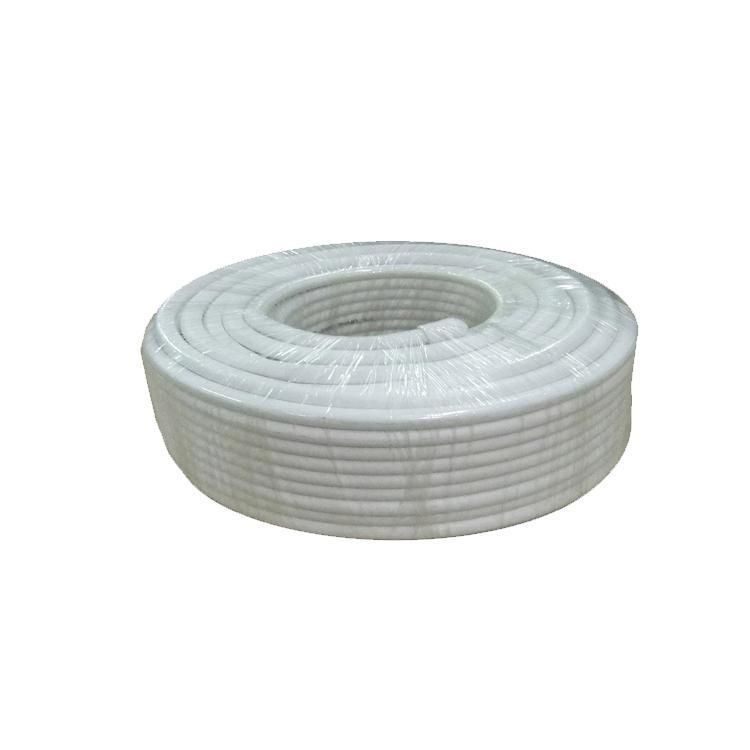

100m/coil
100m/box
200m/box

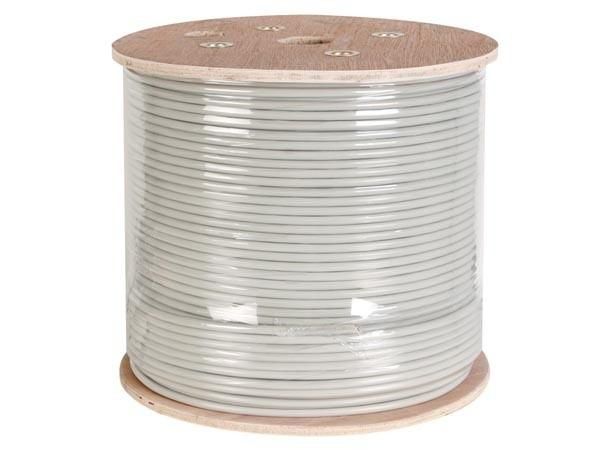

305m/wooden drum
305m/plastic
500m/wooden drum
1000 m/wooden drum



All sizes and values without tolerances are reference values. We reserves the right to amend this specification without prior notice.

 17 dB/100 M 800 MHz - 17 Vatc - Class a17 dB/100 M 800 MHz - 17 Vatc - Class a


Packing:17 dB/100 M 800 MHz - 17 Vatc - Class a17 dB/100 M 800 MHz - 17 Vatc - Class a17 dB/100 M 800 MHz - 17 Vatc - Class a
We can offer same as per customer's requirement for option! Mainly we can offer Wooden Drum ,Plastic Drum,Pallet for choice.Any Other Packing Requirement can be acceptable.


FAQ

Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?

A: We are factory.


Q2. HOW LONG IS YOUR DELIVERY TIME?

A:Generally it is  5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.


Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?

A: Normally, 10kms per one specification and one color


Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.


Q5. HOW TO PROCEED AN ORDER FOR CABLES?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.


Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
A: Yes. Please inform us formally before our production.

Q7. WHAT IS YOUR TERMS OF PAYMENT?
A: Payment<=60km,100% in advance,payment >=60KM,30%TT in advance ,balance before shipment .
