• Model NO.：ftp cat6
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, CPR,ETL,SGS
• Model：FTP CAT6
• Brand：Risun or OEM
• Color：as Request
• Insulation：HDPE
• Shield：Polyester Tape+Aluminum Foil
• Transport Package：305m,Pull Box, 2boxes,CTN
• Specification：0.57cu, 1.00HDPE, 7.4VC, LSZH, PE
• Trademark：Risun or OEM
• Origin：Hangzhou, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes , Month

Basic Info.

Model NO. ftp cat6 Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CPR,ETL,SGS Model FTP CAT6 Brand Risun or OEM Color as Request Insulation HDPE Shield Polyester Tape+Aluminum Foil Transport Package 305m/Pull Box, 2boxes/CTN Specification 0.57cu, 1.00HDPE, 7.4VC, LSZH, PE Trademark Risun or OEM Origin Hangzhou, China(Mainland) HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

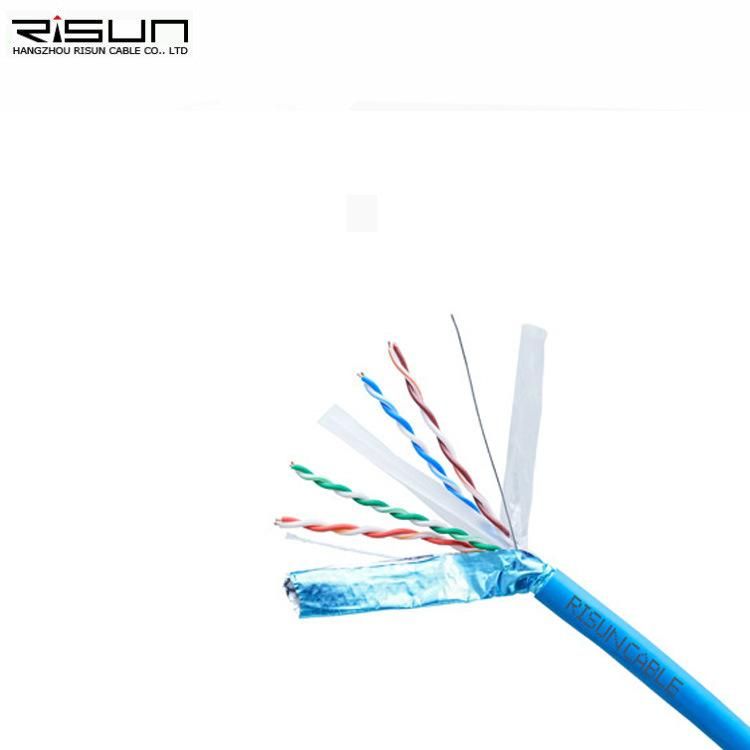

 FTP Cat6 Bulk Ethernet LAN Network Cable 1000FT Pull Box

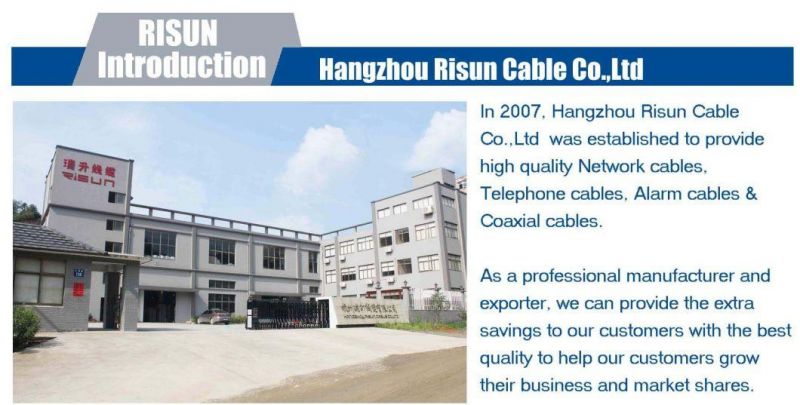

Company information
Configuration
1. Conductor: 0.57±0.01mm(23AWG) Bare copper
2. Insulation: 1.350±0.05mm FPE
3. Shield: Al Foil
4. Drain wire: 0.4mmTC
5. Ripcord
6. Sheath: LSZH

Electrical Specifications

dc Resistance, maximum	7.61 ohms/100 m | 2.32 ohms/100 ft
Mutual Capacitance at Frequency	4.2 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)	79 %
Operating Frequency, maximum	500 MHz

Packing

1) packing lengths: 305m/wooden drum, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.


process of production
FAQ:

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A: Mass production time needs 20-25 days.

Q3. Do you have any MOQ limit for order?
A: Normally, 10kms per one specification and one color.

Q4. How do you ship the goods and how long does it take to arrive?
A: Normally by sea shipping. (sample order also available by air or courier)

Q5. How to proceed an order for cables?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q6. Is it OK to print my logo on cables?
A: Yes. Please inform us formally before our production.
