• Model NO.：UTP CAT6
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, CPR,ETL,SGS
• Model：UTP CAT6
• Brand：Risun or OEM
• Color：as Request
• Insualtion：HDPE
• UV, Jelly, Fr：Available
• Transport Package：305m,Pull Box, 2boxes,CTN
• Specification：0.57cu, 1.00HDPE, 6.2PVC, LSZH, PE
• Trademark：Risun or OEM
• Origin：Hangzhou, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes , Month

Basic Info.

Model NO. UTP CAT6 Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CPR,ETL,SGS Model UTP CAT6 Brand Risun or OEM Color as Request Insualtion HDPE UV, Jelly, Fr Available Transport Package 305m/Pull Box, 2boxes/CTN Specification 0.57cu, 1.00HDPE, 6.2PVC, LSZH, PE Trademark Risun or OEM Origin Hangzhou, China(Mainland) HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

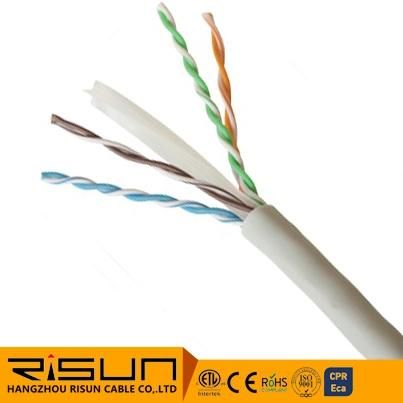

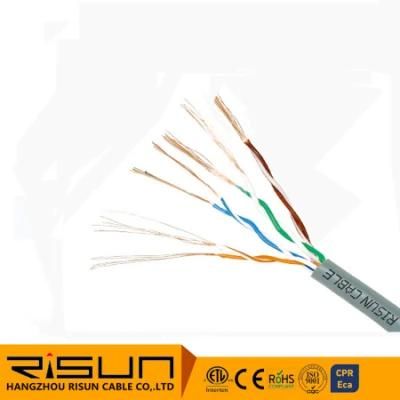

23AWG utp Cat6 Outdoor Solid PVC lan Cable
company information
Product Description:


  construction:

conductor	23awg (solid or strand) cu
insulation	hdpe 1.00±0.02mm
sheath	6.2±0.1mm pvc (fr,rohs,uv)/ lsoh / pe
cores/pairs	8/4

mechanical properties:

elongation	min. 300%
temperature range	-20 up to +75° c
tensile strength	min 1.68kg/mm²

electrical properties:

resistance	max. 9.38 ohm/100m
resistance unbalance	max. 2%
insulation resistance	150 ohm/km
mutual capacitance	max. 5600pf/100m
capacitance unbalance	max. 330pf/100m
impedance	100+/-15 ohm
spark test	2000v
velocity of propagation	67%

Company Profile

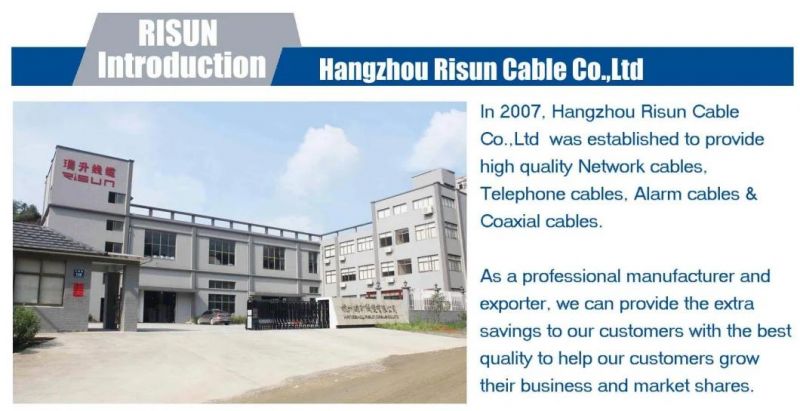

Risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.

95% of our goods for the export market. 14 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.

in the past 14 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.






Packing&Shipping:



























Why Choose Us:







FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.

Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.

Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)

Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.

Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100="">=60km, 30% T/T in advance ,balance before shippment.
