• Model NO.：NFA2X
• Wire Core Material：Aluminum
• Certification：ISO, CCC, CE, RoHS, VDE
• Model：NFA2X
• Brand：Boan
• Code Name：NFA2X
• Conductor：Aluminum
• Insulation：XLPE
• Rated Voltage：0.6,1kv
• Conductor Construction：Class 2, Stranded
• Certificate：ISO9001,ISO14001 ,Ohsas18001,CCC
• Transport Package：Fumigated Steel-Wooden Drum,Wooden Drum
• Specification：AL XLPE Overhead Cable
• Trademark：Dingan
• Origin：China Mainland(Jiangsu Wuxi)
• HS Code：8544492100
• Production Capacity：22000 Kilometres Per Year

Basic Info.

Model NO. NFA2X Wire Core Material Aluminum Certification ISO, CCC, CE, RoHS, VDE Model NFA2X Brand Boan Code Name NFA2X Conductor Aluminum Insulation XLPE Rated Voltage 0.6/1kv Conductor Construction Class 2, Stranded Certificate ISO9001/ISO14001 /Ohsas18001/CCC Transport Package Fumigated Steel-Wooden Drum/Wooden Drum Specification AL XLPE Overhead Cable Trademark Dingan Origin China Mainland(Jiangsu Wuxi) HS Code 8544492100 Production Capacity 22000 Kilometres Per Year

Product Description

Production Description:
The power cables with XLPE insulation for overhead lines - self-supporting type are designed for transfer, distribution and supply with electrical power in networks low voltage Uo/U 0.6/1 kV. In constructions for distribution networks these cable permit suspension on fasades and trees. They allow crossing of forest areas without cutting and maintenance of openings in the wood. The suspension and support of the whole bundle is carried out by the phase ( basic ) insulated current-conductive.
Technical Data:

Number of cores and size	Insulation thickness	Outer diameter	Weight of cable
mm2	mm	D approx. mm	approx. kg/km
1 x 25 RM	1,33	9,0	105
1 x 35 RM	1,33	10,0	135
1 x 50 RM	1,53	12,0	180
1 x 70 RM	1,53	13,5	245
4 x 25 RM	1,33	20,5	425
4 x 35 RM	1,33	23,5	535
4 x 50 RM	1,53	28,0	730
4 x 70 RM	1,53	32,5	990
4 x 95 RM	1,73	37,0	1355

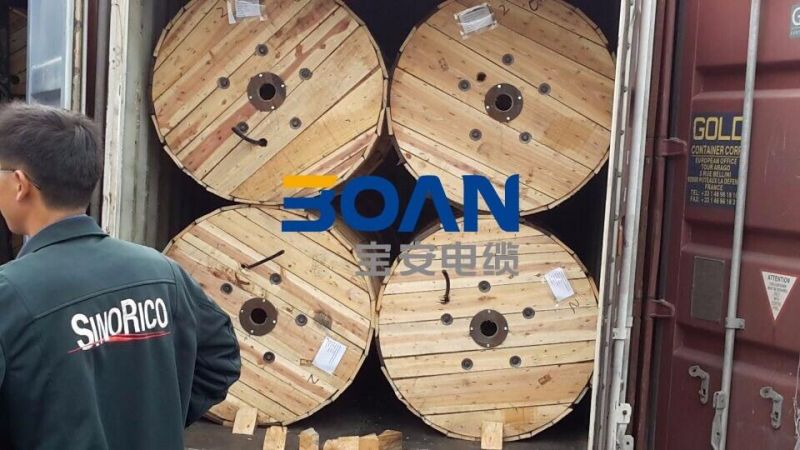

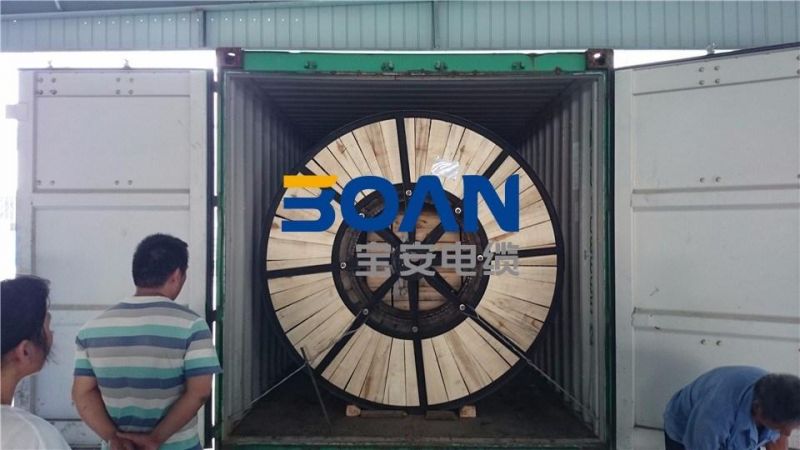

Packaging & Shipping:
Fumigated steel wooden drum/wooden drum


Company Information:

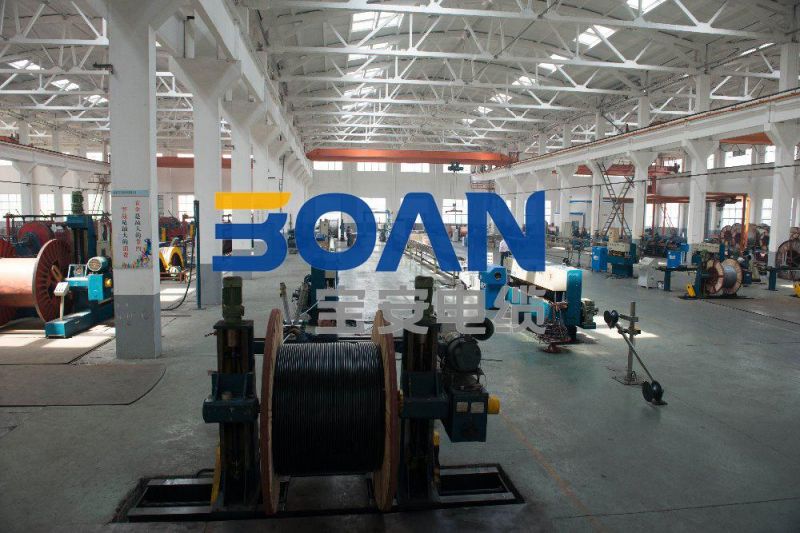

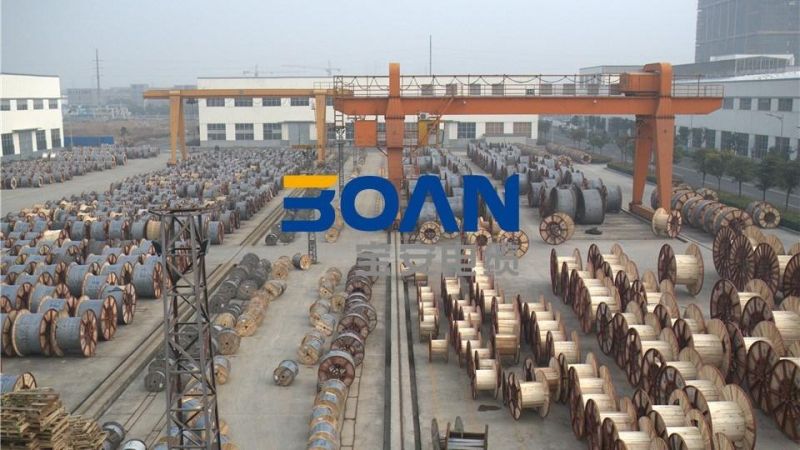

Jiangsu Boan Cable Co., Ltd. was founded in 1996 with a registered capital of 216 million RMB. It is one of key enterprises of China wire and cable industry, the national high-tech enterprises, the innovation and development pilot enterprises of Jiangsu Province, the private technology enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-grade credit enterprise. We have also passed ISO9001 Quality System, ISO14001 Environment Management System Certificate and GB/T28001 Occupational Health and Safety Management System Certificate.


Certifications:
