All Aluminium Alloy Conductor Butte 266.8mcm (AAAC Conductor)
YIFANG ELECTRIC GROUP INC.- Application：Construction, Overhead, Industrial, Power Station
- Voltage：High Voltage Cable
- Current：DC & AC
- Insulation Material：Bare
- Sheath Material：None
- Material Shape：Round Wire
Base Info
- Model NO.：AAAC Conductor
- Wire Core Material：Bare Conductor
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：AAAC
- Brand：Yifang
- Insulation：Available as Per Requirement
- Standard：IEC61089, ASTM B-399, BS3242, CSA60104, DIN 48201,

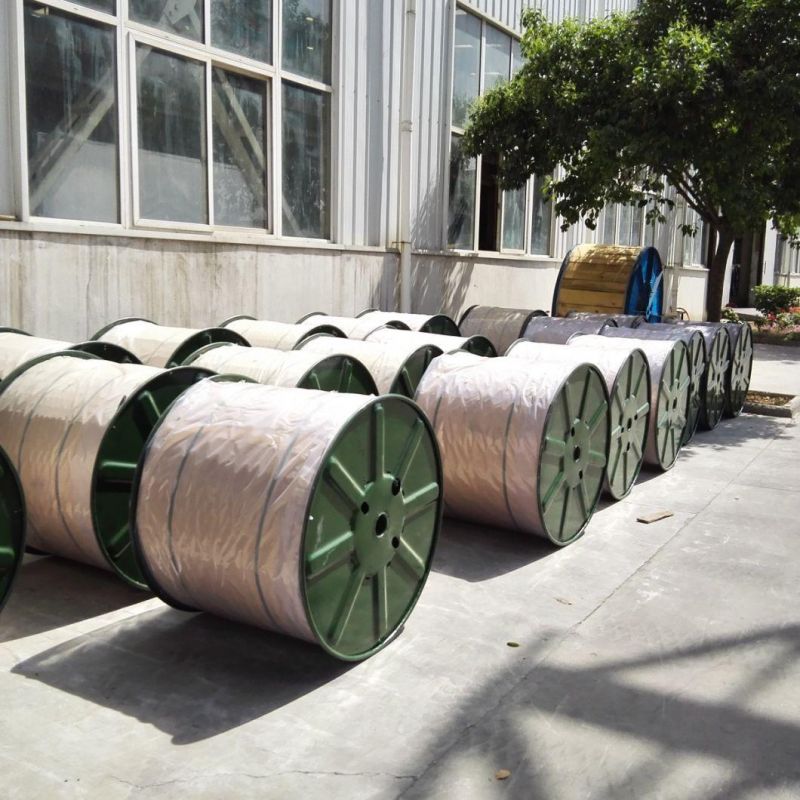

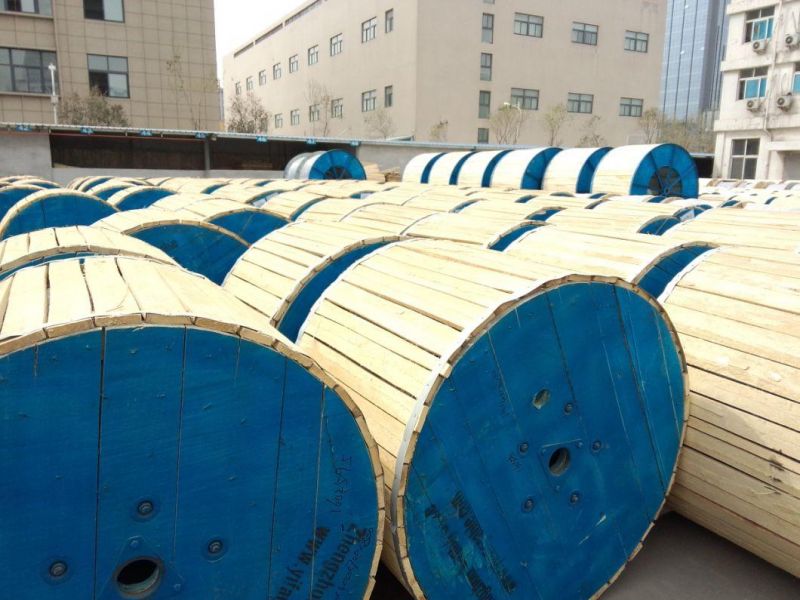

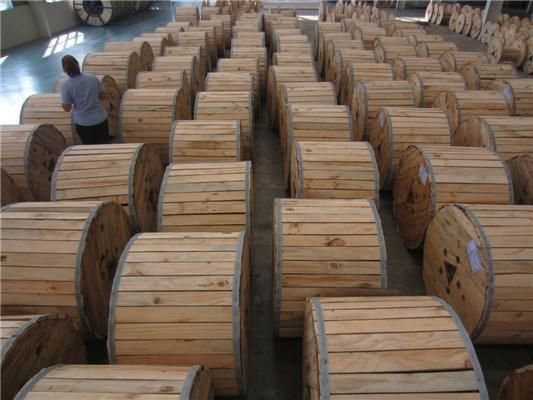

- Transport Package：Drum
- Specification：10mm2~1000mm2
- Trademark：Yifang cable
- Origin：Henan Zhengzhou
- HS Code：7614900000
- Production Capacity：500ton Per Month
Description
Code
Name
Total Area
1350 Grade Equivalent
(Approx)
Stranding
Conductor
Nominal
diameter
Nominal Weight
Rated Strength
Maximum DC
resistance at 20 oC
AWG or
MCM
mm2
AWG or
MCM
No / mm
mm
kg/km
kN
Ω /km
Akron | 30.58 | 15.52 | 6 | 7 x 1.68 | 5.04 | 43 | 4.92 | 2.1588 |
Alton | 48.69 | 24.71 | 4 | 7 x 2.12 | 6.36 | 68 | 7.83 | 1.3557 |
Ames | 77.47 | 39.19 | 2 | 7 x 2.67 | 8.01 | 108 | 12.42 | 0.8547 |
Azusa | 123.3 | 62.44 | 1.0 | 7 x 3.37 | 10.11 | 171 | 18.88 | 0.5365 |
Anaheim | 155.4 | 78.55 | 2/0 | 7 x 3.78 | 11.34 | 216 | 23.75 | 0.4264 |
Amherst |
195.7 |
99.30 |
3/0 |
7 x 4.25 |
12.75 |
272 |
30.03 |
0.3373 |
Alliance | 246.9 | 125.10 | 4/0 | 7 x 4.77 | 14.31 | 343 | 37.83 | 0.2678 |
Butte | 312.8 | 158.60 | 266.8 | 19 x 3.26 | 16.30 | 435 | 46.46 | 0.2112 |
Canton | 394.5 | 199.90 | 336.4 | 19 x 3.66 | 18.30 | 548 | 58.56 | 0.1676 |
Cairo | 465.4 | 236.40 | 397.5 | 19 x 3.98 | 19.90 | 649 | 69.25 | 0.1417 |
Darien |
559.5 |
283.57 |
477.0 |
19 x 4.36 |
21.80 |
778 |
83.10 |
0.1181 |
Elgin | 652.6 | 331.00 | 556.5 | 19 x 4.71 | 23.55 | 908 | 96.98 | 0.1012 |
Flint | 740.8 | 374.50 | 636.0 | 37 x 3.59 | 25.13 | 1028 | 107.36 | 0.0894 |
Greeley | 927.2 | 469.60 | 795.0 | 37 x 4.02 | 28.14 | 1289 | 134.62 |
