1.10mm Casing Thickness Railway Rolling Stock Cable for Electrical Cabinet Wiring
Metallurgica Bresciana (Maanshan) Special Cables Co., Ltd.- Type:Insulated
- Conductor Type:Conforms to IEC 60228 Category 6 Conductor
- Application:Overhead, Underground
- Conductor Material:Tinned Wire Copper
- Sheath Material:Crosslinking
- Insulation Material:Foamed Polyethylene
Base Info

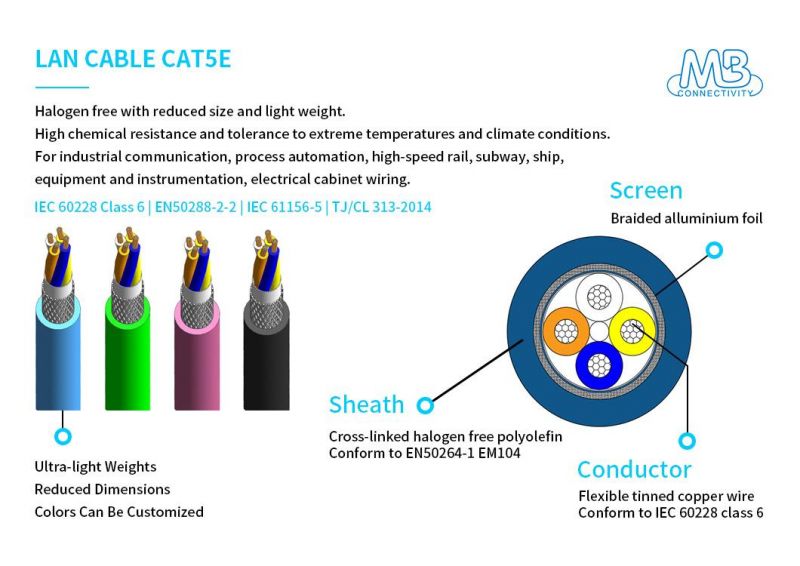

- Model NO.:CAT5E 4x20AWG
- Material Shape:Round Wire
- Range of Application:Flame Retardant
- Certification:ISO9001, China Railway Inspection and Certification Center
- Cable Structure:Star
- Insulation Diameter:2.0mm
- Filling Material:PE
- Shield Material:Aluminium Foil
- Shield Coverage:Min.90%
- Casing Diameter:7.80mm
- Casing Thickness:1.10mm
- Working Temperature:-40 ~ +90ºC
- Usage:Industrial Communication,Automation,Rail,Subway
- Color:Blue or Customized
- Guideline:En50288-2-2, IEC 61156-5, Tj,Cl 313-2014
- MOQ:100 Meters
- Transport Package:Drum,Bobbin,Coil
- Specification:76kg,km
- Trademark:METALLURGICA BRESCIANA
- Origin:Anhui, China
- Production Capacity:1000000meters,Month
Description
Mechanical Physical Properties Production Line Company Profile Our Customers The quality of cables we are making are the key factor for the safety of mass transportation. We are dedicated to the satisfaction and success of every customer. Q1: Are you the real factory? A:Yes, we are one of the production plant of our international company. A:Cables for different industries and uses. We offer customized solutions. Q3: What is your delivery time? A: Withing 15 days for about 30km of standard product. Time is variable for special solutions. Q4: MOQ: what is your minimum quantity? A: 300 meters. A: For large orders: customized.Working temperature range -40 ~ +90ºC Operating voltage 30V Weight 93kg/km Minimum bending radius (fixed) 47mm Sheath tensile strenght ≥10MPa Sheath elongation ≥125% Sheath aging conditions 120x240ºCxh Change rate of sheath tensile strength ≤30% Sheath elongation resistance rate of change ≤30% Sheath thermal extension test conditions 200x15ºCxmin Thermal extension test mechanical stress 20N/cm2 Elongation rate under load in hot extension test ≤100% Hot elongation test elongation rate when unloading ≤25% High frequency electrical performance Characteristic impedance (Z0) 100±5Ω (1~100MHz) Attenuation (ATT) Compliant with EN50288-2-2 Return loss (RL) Compliant with EN50288-2-2 &IEC61156-5 Near-end crosstalk (NEXT) Compliant with IEC61156-5 Near-end crosstalk power sum (PSNEXT) Compliant with IEC61156-5 Equal level far-end crosstalk (ACR-F) Compliant with EN50288-2-2 Equal level far-end crosstalk power sum (PSACR-F) Compliant with EN50288-2-2 FeaturesDelay (PD) Compliant with IEC61156-5
Q2: What is your main products?
Q5: Package & Shipping & Delivery
