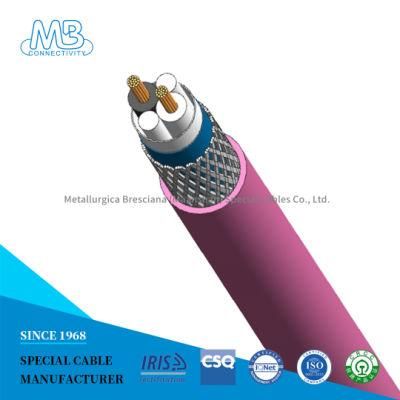

ISO9001 Certificated Connector Wiring with a Maximum Speed of 100MB Per Second

Metallurgica Bresciana (Maanshan) Special Cables Co., Ltd.
  • Type：Insulated
  • Conductor Type：Conforms to IEC 60228 Category 6 Conductor
  • Application：Overhead, Underground
  • Conductor Material：Bare Soft Copper Wire
  • Sheath Material：Crosslinking
  • Insulation Material：PE

Base Info

  • Model NO.：CAT5E SF,UTP 4x2x24AWG PATCH
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant
  • Certification：ISO9001, China Railway Inspection and Certification Center
  • Cable Structure：Twisted
  • Insulation Diameter：1.10mm
  • Shield Material：Aluminium Foil
  • Shield Coverage：Min.65%
  • Casing Diameter：6.80mm
  • Casing Thickness：0.5mm
  • Working Temperature：-40 ~ +70ºC
  • Usage：Cloud Computing Center,Data Room,Rail,etc.
  • Color：Grey or Customized
  • Guideline：En50288-2-2,IEC 61156-5,Tj,Cl 313-2014
  • MOQ：100 Meters
  • Transport Package：Drum,Bobbin,Coil
  • Specification：54kg,km
  • Trademark：METALLURGICA BRESCIANA
  • Origin：Anhui, China
  • Production Capacity：1000000meters,Month

Description

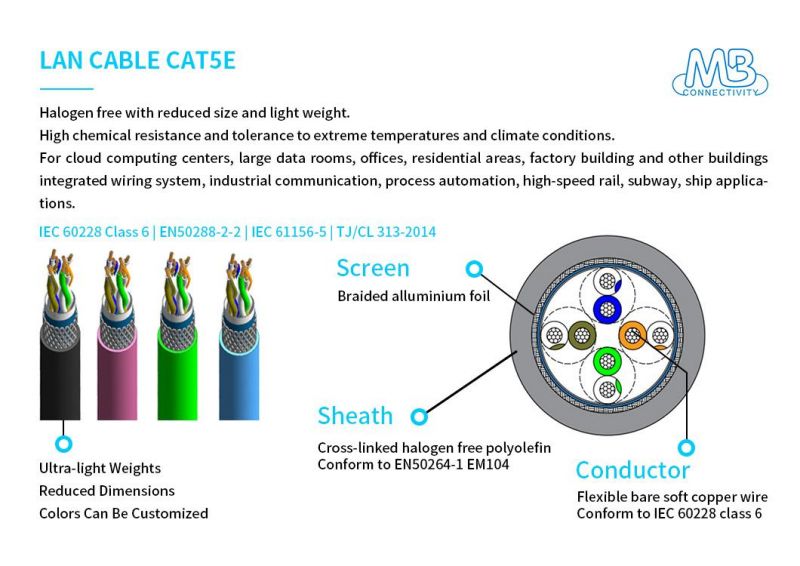

Overview Product Description

Mechanical Physical PropertiesWorking temperature range-40 ~ +70ºCOperating voltage230VWeight54kg/kmMinimum bending radius (fixed)62mmSheath tensile strenght≥10MPaSheath elongation≥125%Sheath aging conditions120x240ºCxhChange rate of sheath tensile strength≤30%Sheath elongation resistance rate of change≤30%Sheath thermal extension test conditions200x15ºCxminThermal extension test mechanical stress20N/cm2Elongation rate under load in hot extension test≤100%Hot elongation test elongation rate when unloading≤25%High frequency electrical performanceCharacteristic impedance (Z0)100±5Ω (1~100MHz)Attenuation (ATT)Compliant with EN50288-2-2Near-end crosstalk (NEXT)Compliant with EN50288-2-2

ISO9001 Certificated Connector Wiring with a Maximum Speed of 100MB Per Second

Features

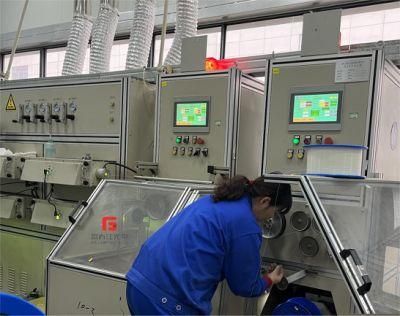

Production Line



Our Advantages

Company Profile

Our Customers

The quality of cables we are making are the key factor for the safety of mass transportation. We are dedicated to the satisfaction and success of every customer.
ISO9001 Certificated Connector Wiring with a Maximum Speed of 100MB Per Second

Certifications

ISO9001 Certificated Connector Wiring with a Maximum Speed of 100MB Per Second

FAQ

Q1: Are you the real factory?
A:Yes, we are one of the production plant of our international company.

Q2: What is your main products?
A:Cables for different industries and uses. We offer customized solutions.

Q3: What is your delivery time?
A: Withing 15 days for about 30km of standard product. Time is variable for special solutions.

Q4: MOQ: what is your minimum quantity?
A: 300 meters.

Q5: Package & Shipping & Delivery
A: For large orders:  customized.
