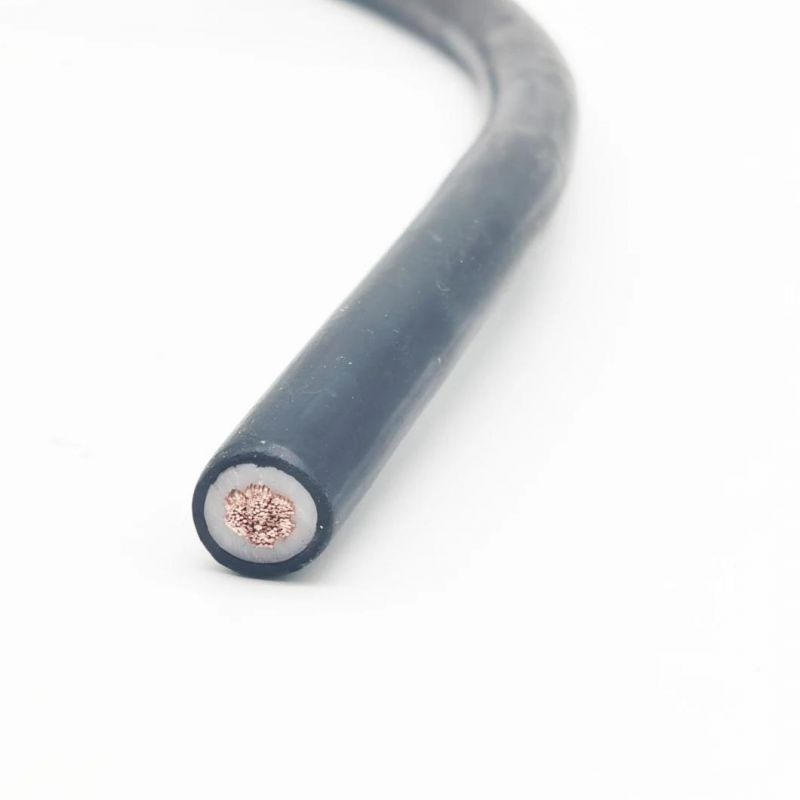

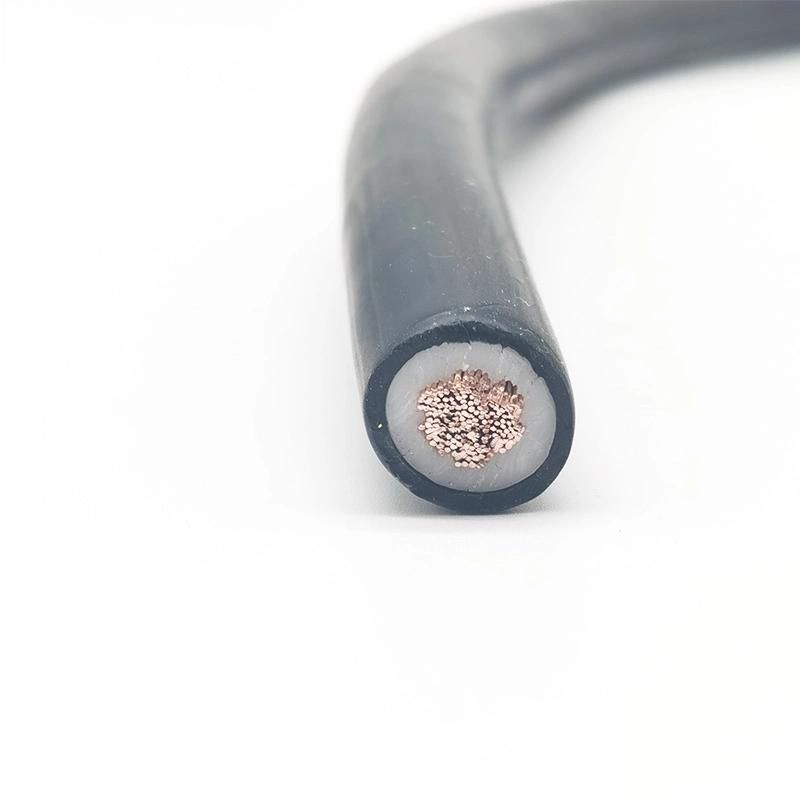

VDE 0472 Nshxafo Flexible Cable LSZH Epr Insulated Polymer Jacket Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Polymer Jacket
  • Insulation Material：Epr
  • Material Shape：Round Wire

Base Info

  • Model NO.：NSHXAFO Cable
  • Range of Application：LSOH
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemLSZH NSHXAFO CableConductorCopperInsulationEthylen-Propylen-Rubber (EPR) Outer sheathPolymer jacketNominal VoltageAC U0/U 1.8/3 kV Test Voltage6 kVTemperature RangeFlexing:-5°C to +80°C (+23°F to +176°F)
Fixed Installation:-25°C to +80°C (-13°F to +176°F)Minimum Bending RadiusFlexing: 10x cable Ø
Fixed: 6x cable ØColorOptionalCertificationCEApplicationParticularly suitable for protection against short circuits in laying and for inherently ground-fault-proof routing in rail vehicles and omnibuses. Also suitable for laying in dry environments. In switching units and distributors they are considered to be short circuit and inherently ground proof to 1000 V.
Note: Considered as being short circuit safe and ground fault proof are those operating materials and conducting assemblies where because of suitable measures and/or means applied, neither a short circuit nor a short to ground is to be expected under operating conditions which are in accordance which those specified for the intended application.VDE 0472 Nshxafo Flexible Cable LSZH Epr Insulated Polymer Jacket Cable
