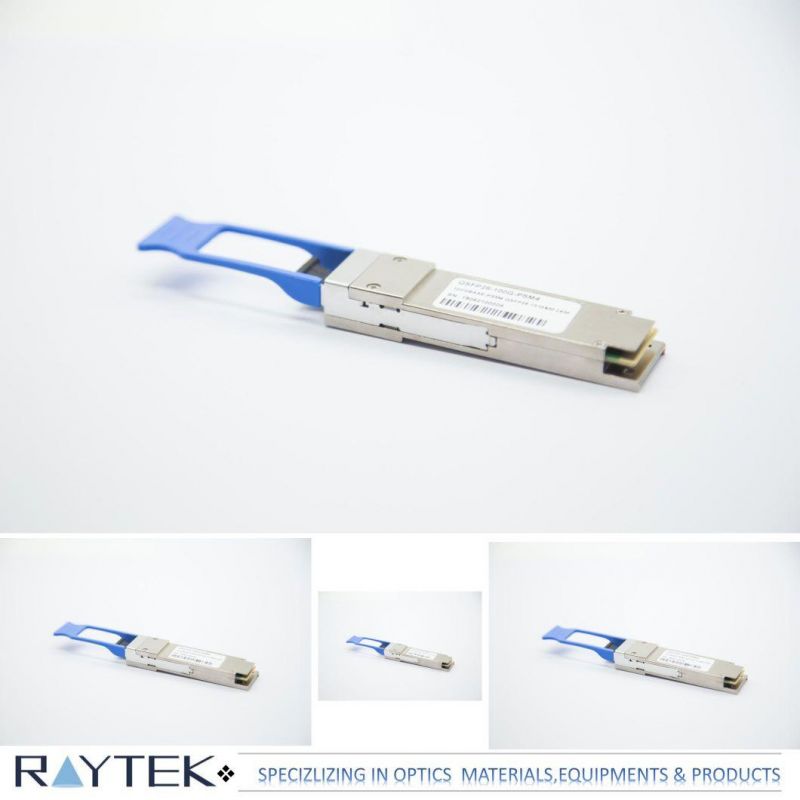

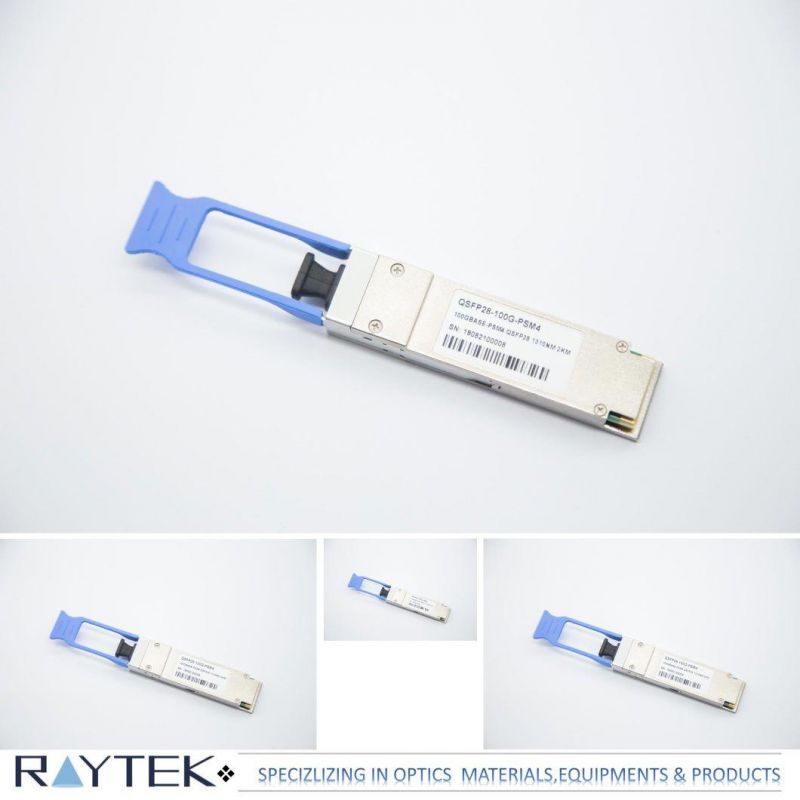

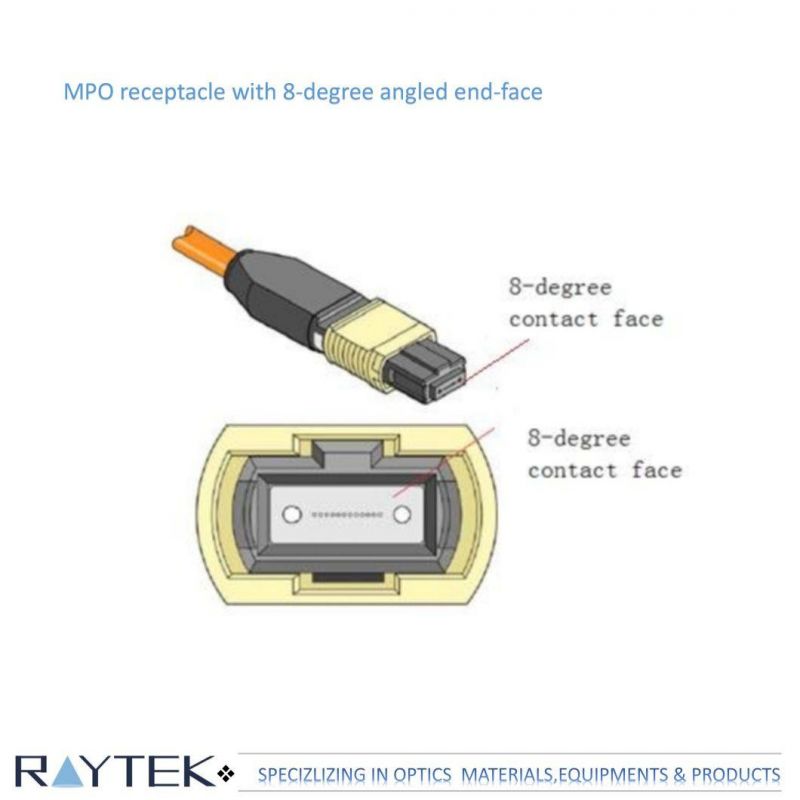

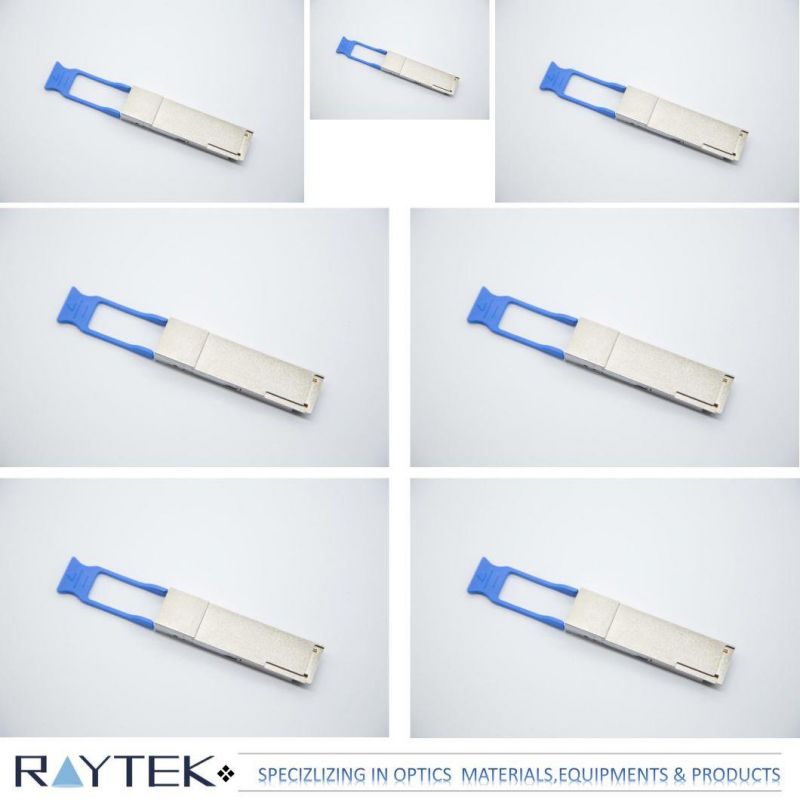

4X25.78125g Qsfp28 Psm4, MPO Connector, 2km Over Single Mode Fiber
Shanghai Rui Tai Photoelectric Technology Co., Ltd.- Application：Communication, Art, Sensor, Medicine, Probe, Sensing
- Type：Single-Mode & Multi-Mode
- Connection Structure：All Models
- Material Shape：Round Wire
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：>10000N
Base Info
- Model NO.：RAY-OF2016#
- Core：Single-Core,Multi-Core, Double-Core
- Certification：RoHS, UL, CE, ISO9001, VDE, CCC
- Brand：Raytek
- Sheath Material：Customized
- Power Consumption：3.5W
- Supply Current：1.06A
- Transceiver Power-on Initialization Time：2000ms
- Data Dependent Pulse Width Shrinkage (Dd：0.07ui
- Transport Package：1PCS Per Box
- Specification：custom as per demand
- Trademark：Raytek
- Origin：China
- HS Code：8536700000
- Production Capacity：100, 000, 0PCS Per Year
Description
TransmitterCenter Wavelength λC 1295 1325 nm 1 RMS Spectral Width λrms - 3.5 nm 1 Average Launch Power, each lane PAVG -6 -0.5 +2.0 dBm Optical Modulation Amplitude (OMA) POMA -5 -0.5 +2.2 dBm 1 Difference in Launch Power between
any two lanes
Ptx,diff
5.0
dB
Transmitter and dispersion penalty (TDP), each lane (max)
TDP
2.9
dBm
1Rise/Fall Time Tr/Tf 30 ps Extinction Ratio ER 3.5 dB Relative Intensity Noise Rin -128 dB/Hz
Digital Diagnostic Functions:
The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.Parameter Symbol Min Max Unit Notes
Temperature monitor absolute error
DMI_Temp
-3
3
degCOver operating
temp
Supply voltage monitor absolute error
DMI _VCC
-0.1
0.1
VFull operating
range Channel RX power monitor absolute error DMI_RX -3 3 dB Per channel Channel Bias current monitor DMI_Ibias -10% 10% mA Per channel
Temperature monitor absolute error
DMI_Temp
-3
3
degCOver operating
temp
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Mexico, Brazil, Argentina,Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optical transceiver products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
