Single Mode G652D Fiber Optical Cable
Hangzhou Softel Optic Co., Ltd.- Application：Fiber Optic Cable
- Conductor Material：Fiber
- Cover Material：PE
- Type：G652D
- Material Shape：Hollow Line
- Conductor Type：Stranded
Base Info
- Model NO.：Optical Cable
- Wire Core Material：Steel
- Certification：CE, ISO
- Apply for：Aerial, Duct ,Direct Burial
- Fiber Count：12cores
- Cable Type：Sm or Mm
- Fiber Type：G652,G655
- Material of Jacket：MDPE,HDPE
- Fiber Optic Cable Tube：Central Loose Tube
- Model Name：Fiber Optic Cable
- Model No.：GYXTW
- Delivery Time：10 Days
- MOQ：2 Drum

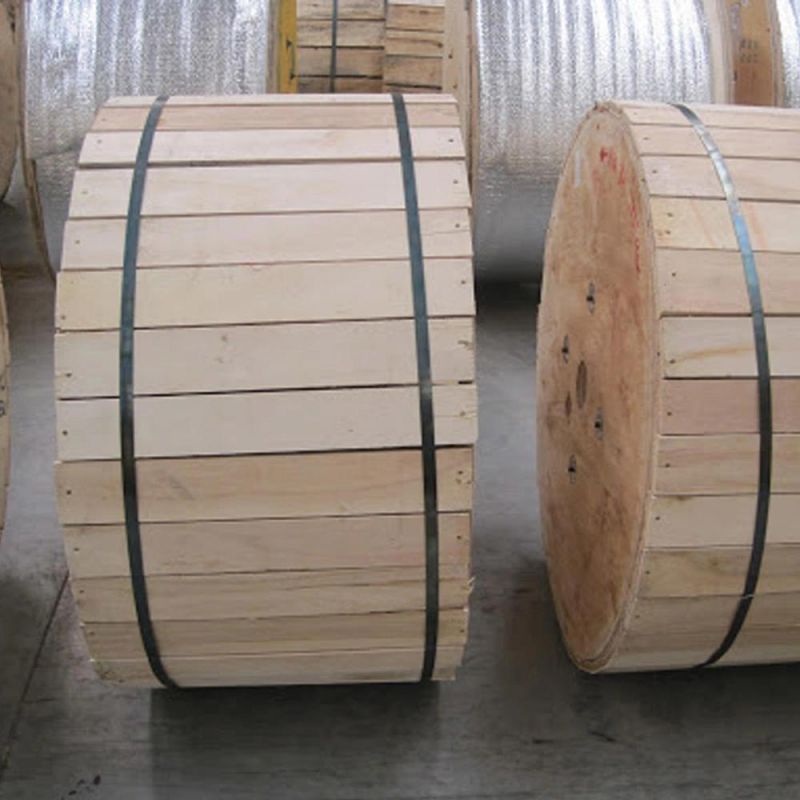

- Transport Package：4km Wooden Drum
- Trademark：SOFTEL
- Origin：China
- HS Code：85176229
- Production Capacity：1000km Per Month
Description
Overview
Product Description
Main application:
1. Suitable for aerial, pipeline laying method
2. Long distance and local area network communication
3. With small cable diameter, light cable weight, easily to lay.
4. Rural communication, local trunk line, CATV & computer networks system
Feature:
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
Compact structure and lightness, flexible and good bend-resistant performance
With small cable diameter, light cable weight, self-supporting

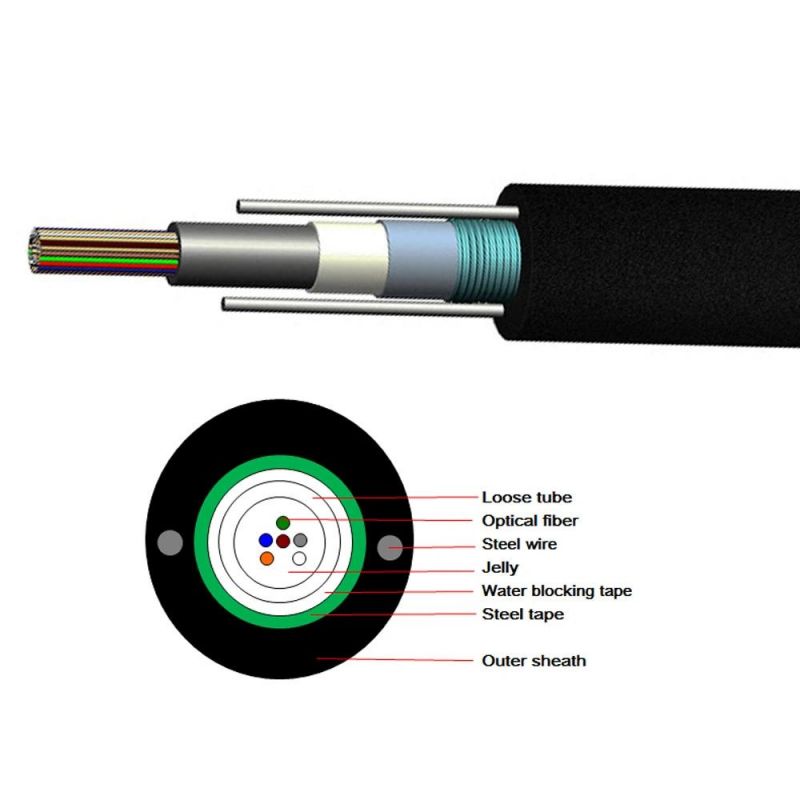

To fill the single mode or multi-mode fibers into the PBT loose tube made of high modulus polyester.
The inside of the tube is filled with water-proof compounds.
The outside of loose tube is longitudinally wrapped with plastic coated steel tapes.
Between the steel tape and the loose tube, water-proof material is filled to ensure the compactness and the water resistence of the cable.
Two parallel steel wires are placed at the two sides of the steel tape. The steel wires are all inside the (PE) outer jacket.Product Parameters Fiber
count
Cable
dia.(mm) Cable net
weight(Kg/km) Min. bending
radius(mm) Min. tensile
strength(N) Min. crush
pressure(N/100mm) Static state Dynamic
state Short term Long term Short term Long
term 2-6 10.1 104 110 220 1500 600 1000 300 8-12 10.6 114 110 220 1500 600 1000 300 14-24 11.2 128 120 240 1500 600 1000 300
Main application:
1. Suitable for aerial, pipeline laying method
2. Long distance and local area network communication
3. With small cable diameter, light cable weight, easily to lay.
4. Rural communication, local trunk line, CATV & computer networks system
Feature:
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
Compact structure and lightness, flexible and good bend-resistant performance
With small cable diameter, light cable weight, self-supporting
To fill the single mode or multi-mode fibers into the PBT loose tube made of high modulus polyester.
The inside of the tube is filled with water-proof compounds.
The outside of loose tube is longitudinally wrapped with plastic coated steel tapes.
Between the steel tape and the loose tube, water-proof material is filled to ensure the compactness and the water resistence of the cable.
Two parallel steel wires are placed at the two sides of the steel tape. The steel wires are all inside the (PE) outer jacket.Product Parameters Fiber
