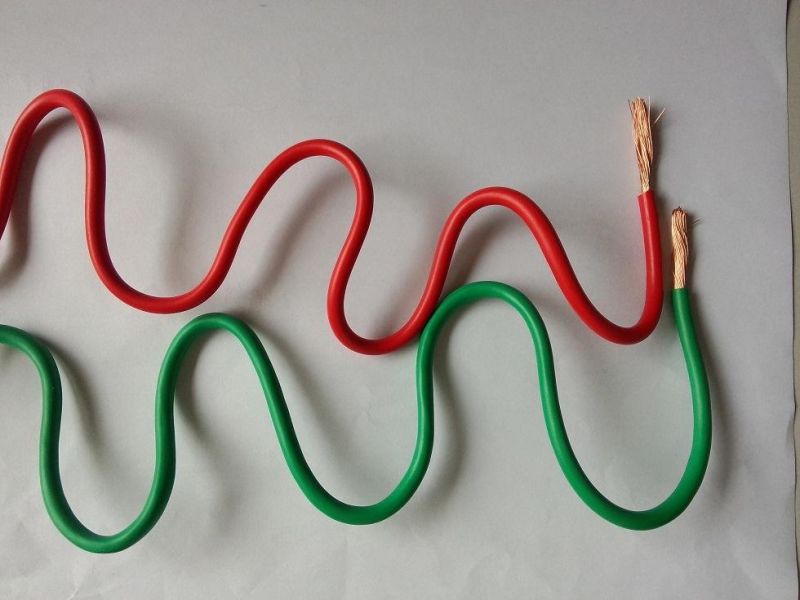

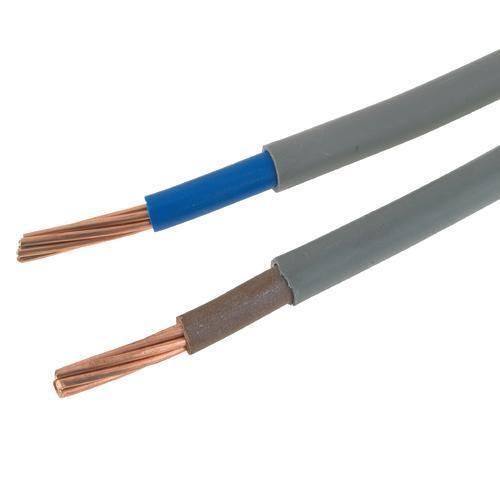

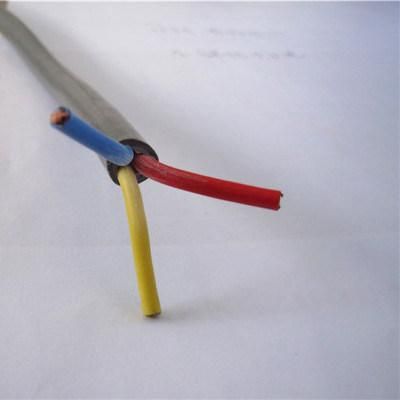

300/500V 450/750V Electrical Wire 1.5mm 2.5mm 4mm 6mm Colorful House Building Wire

YIFANG ELECTRIC GROUP INC.
  • Type：Insulated
  • Conductor Type：Stranded,Solid
  • Application：Heating, Underground, Equipment,Building
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：Building Wire
  • Material Shape：Round Wire
  • Range of Application：Home or Building or Equipment
  • Certification：ISO9001, CE, UL, CCC, RoHS, VDE
  • Brand：Yifang
  • Conductor：Class1, Class 2 , Class 5
  • Cores Number：1~5
  • Colour：White,Black,Brown,Red,Blue,Yellow,Green,etc
  • Standard：IEC 60502
  • Outer Sheath Color：Black or White

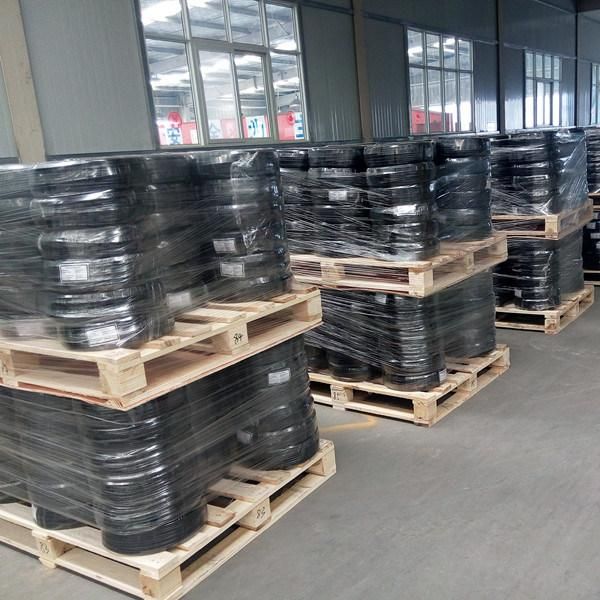

  • Transport Package：Coil, Drum, Pallet
  • Specification：0.75mm2~300mm2
  • Trademark：Yifang cable
  • Origin：Zhengzhou, Henan, China
  • HS Code：8544492100
  • Production Capacity：5000km Per Month

Description

Nominal section(mm²)Number of conductorsToplimit of overall diameter(mm)Maximum DC resistance(20ºC)(Ω/km)Minimum insulation resistance(70ºC)(MΩ.km)Recommended value of carrying capacity(A)Reference weight(kg/kmm)2.5194.17.410.01134324194.84.610.00944486195.33.080.0084586710497.31.830.00727911716498.61.150.0062111173259810.20.7270.00581462723513311.70.5240.00521803635013313.90.3870.00512284887018916.00.2680.0045281682952591.618.20.1933449441202591.619.80.15339711671503361.822.20.12445614531354272.024.60.09915191809300/500V 450/750V Electrical Wire 1.5mm 2.5mm 4mm 6mm Colorful House Building Wire
