• Model NO.：H07RN-F Cable
• Material Shape：Round Wire
• Range of Application：Mine
• Certification：ISO9001, CE, UL, CCC
• Brand：Yifang Cable
• Standards：Bs 6500,Bs7919,309 Y,Ts 9760, IEC 227, VDE 0281
• Conductor：Class 2 , Class 5
• Cores Number：1~5
• Bs Size：3092y,3093y,3094y,3095y

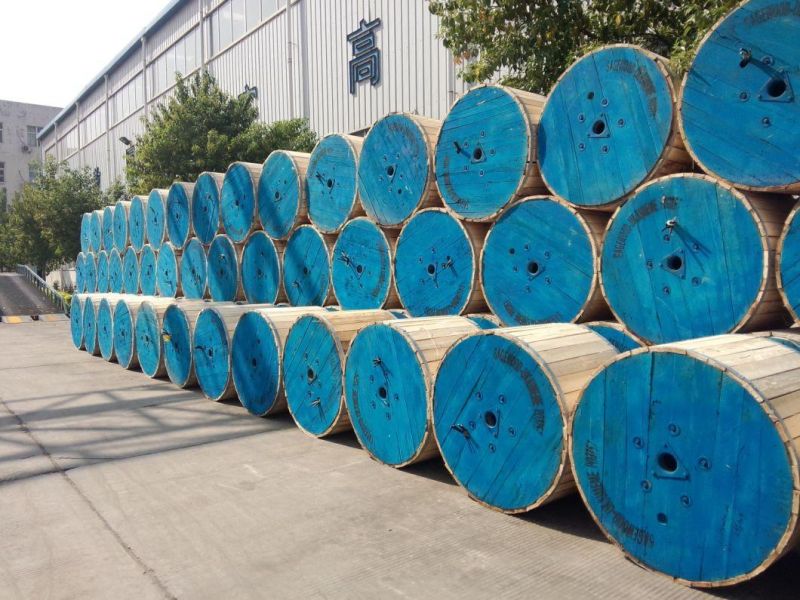

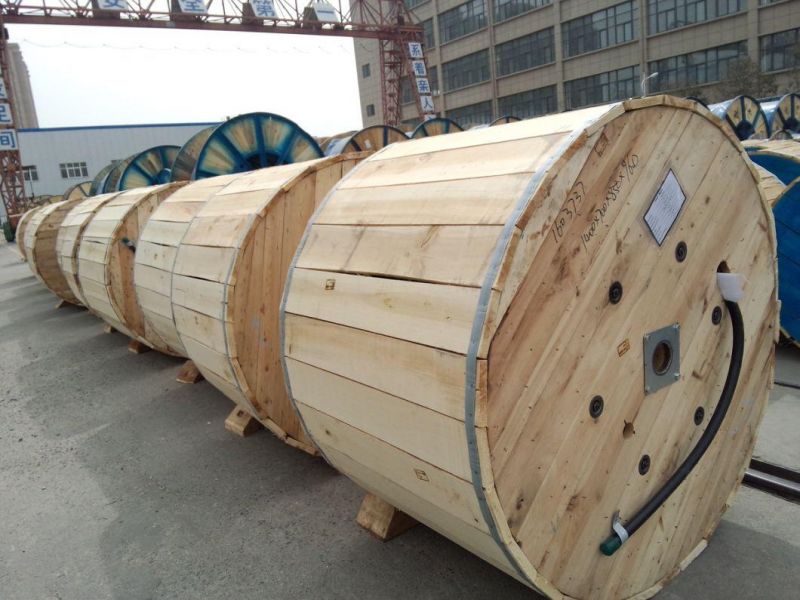

• Transport Package：Coil, Roll, Reel, Drum. 100m,Roll or More
• Specification：4x1.5 mm2
• Trademark：Yifang cable
• Origin：China
• HS Code：8544492100
• Production Capacity：60000km,Year

Rubber Flexible cable is suitable for A.C Voltage 450/750V or below domestic applicances, power-operated tools and various portable electric equipment.

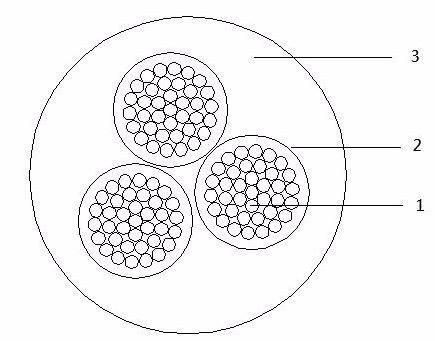

Construction:


 1. Conductor : Plain annealed stranded flexible copper or tinned copper
2. Insulation: EPR/EPDM/Natural compound rubber
3. Sheath: EPDM/Natural Compound Rubber
Standard:

IEC60245, GB/T 50134, BS, DIN, VDE etc.
                                                                                                                   >>>  Starting Business Now
     Specification
 Chinese Type
 Name
 International
typeRated voltage
(v)Number of coresNominal section area
(mm2)
 ApplicationYQ
YQWLight-type Rubber Sheath Flexible Cable 300/3002/30.3~0.5For portable electric instruments, equipment and tools60245IEC53(YZ)
60245IEC57(YZW)
Medium-type Rubber Sheathed Flexible Cable

H05RR-F
H05RN-F300/5002/3/4/5/3+1/64~6
1.5~6
0.75~6For portable electric instruments, equipment and tools and can afford larger external forcesYC


Heavy-type
Rubber Sheathed Flexible Cable



H07RN-F450/7505/3+11.5~25
2.5~150For portable electric instruments, equipment and afford large external forces and weather-resistance and oil-resistanceYC450/7501/2/3/41.5~400
1.5~95
1.5~150YCW450/7502/3/3+135~95
120~150
2.5~150
