0.6/1 kV XLPE Steel Tape Armour 185mm2 240mm2 Aluminum Copper Power Cable
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE,PVC
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：LV Cable
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE
- Model：YJV22 YJLV22
- Brand：Yifang
- Conductor Material：Cu or Al
- Sheath Colour：Black
- Standard：IEC 60502
- Armour Material：Double Steel Tape

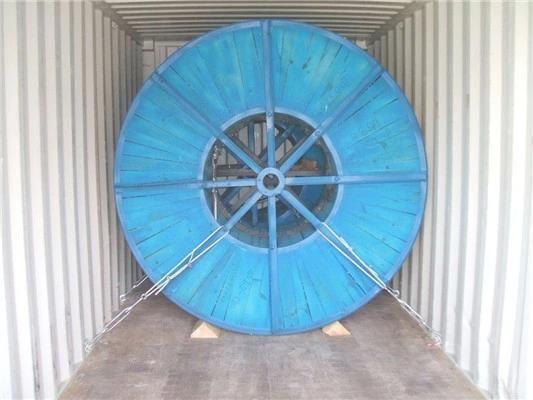

- Transport Package：Standard Export Drums
- Specification：1.5mm2-1000mm2
- Trademark：Yifang
- Origin：Zhengzhou, Henan, China
- HS Code：8544492100
- Production Capacity：1000km Per Month
Description
Approx. Overall diameter(mm)Approx. Weight(kg/km) Primary conductor Neutral line(ground line) YJV22 3*4 1*2.5 0.7 1.2 0.2 1.8 16 425 3*6 1*4 0.7 1.2 0.2 1.8 17 527 3*10 1*6 0.7 1.2 0.2 1.8 20 734 3*16 1*10 0.7 1.2 0.2 1.8 23 1019 3*25 1*16 0.9 1.2 0.2 1.8 26 1434 3*35 1*16 0.9 1.2 0.2 1.8 28 1757 3*50 1*25 1.0 1.2 0.2 1.9 30 2229 3*70 1*35 1.1 1.2 0.2 2.1 35 3386 3*95 1*50 1.1 1.2 0.2 2.2 39 4397 3*120 1*70 1.2 1.3 0.5 2.3 43 5468 3*150 1*70 1.4 1.4 0.5 2.5 47 6464 3*185 1*95 1.6 1.6 0.5 2.6 52 8004 3*240 1*120 1.7 1.7 0.5 2.8 57 10140 3*300 1*150 1.8 1.8 0.5 3.0 63 12445
