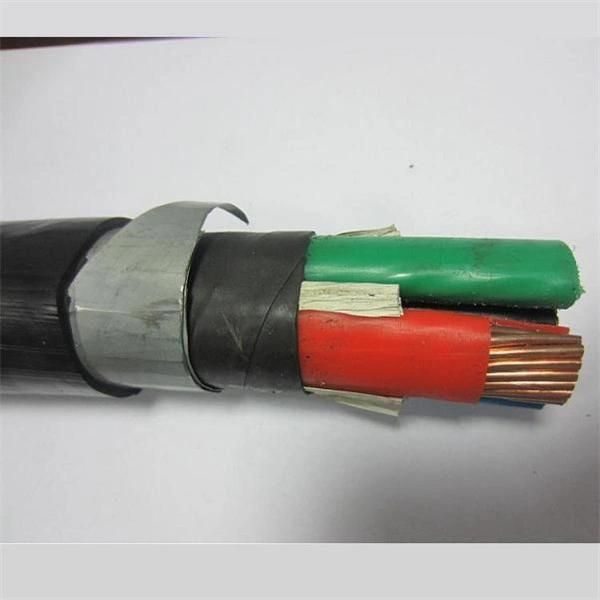

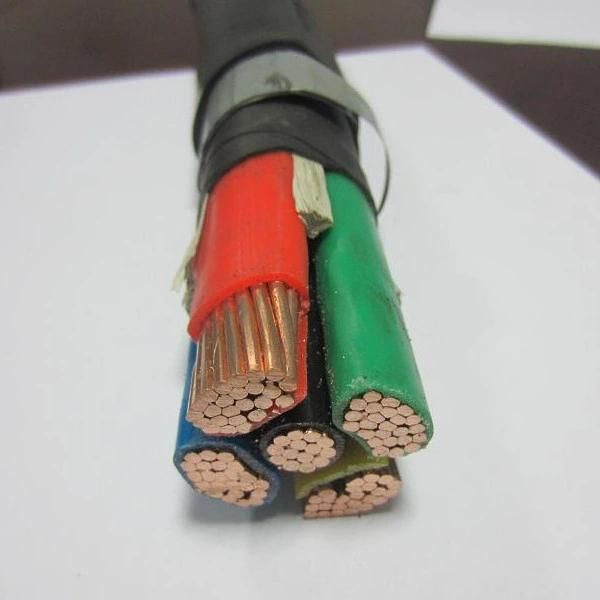

0.6/1kv 4X240 Cu XLPE PVC Double Steel Tape Armour Direct Burial Power Cable
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE,PVC
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：Power Cable
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE
- Model：Sta Armour Cable
- Brand：Yifang
- Conductor Material：Cu or Al
- Sheath Colour：Black, Other as Per Requirements
- Standard：IEC 60502
- Armour：Double Galvanized Steel Tape

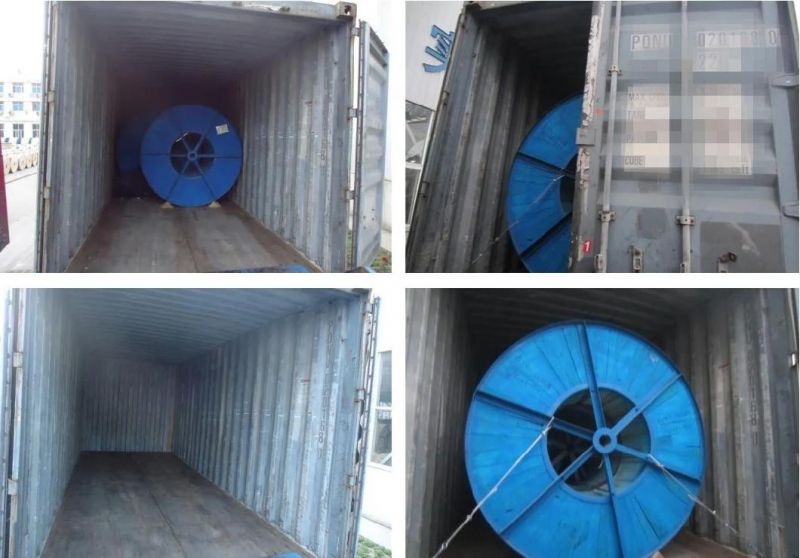

- Transport Package：Drum or Under Clients′ Request
- Specification：1.5mm2-1000mm2
- Trademark：Yifang
- Origin：Zhengzhou, China
- HS Code：8544492100
- Production Capacity：1000km,Month
Description
U0/Um(kv)
1st class
0.6/1
1.8/3
3.6/6
6/10
8.7/15
12/20
18/30
21/35
No.of Core
2nd class
1/1
3/3
6/6
8.7/10
12/15
18/20
-
26/35
1 Core
Section
area(mm2)
1.5-800
25-800
25-800
25-800
35-800
50-800
50-800
50-800
2 Core
Section
Area(mm2)
1.5-185
/
/
/
/
/
/
/
3 Core
Section
area(mm2)
1.5-400
25-400
25-400
25-400
35-400
50-400
50-400
50-400
4 Core
Section
Area(mm2)
2.5-400
25-400
/
/
/
/
/
/
5 Core
Section
area(mm2)
2.5-400
25-400
/
/
/
/
/
/
Description & Application Occasion of cable
Type
Description
Application n
Cu
Al
YJV
YJLV
XLPE insulation PVC sheath power cable
To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside
YJY
YJLY
XLPE insulation PE sheath power cable
YJV22
YJLV22
XLPE insulation, steel tape armor, PVC sheath power cable
To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force.
YJV23
YJLV23
XLPE insulation, steel tape armor, PE sheath power cable
YJV62
YJLV62
XLPE insulation, have no the magnetism steel tape armor, PE sheath power cable
YJV32
YJLV32
XLPE insulation, thin steel-wire armor, PVC sheath power cable
Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint
.
YJV72
YJLV72
XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable
YJV42
YJLV42
XLPE insulation, thick steel-wire armor, PVC sheath power cable
Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint.
Special
Note
,6272.,.
The single-core magnetism material packs the cable is not suitable for to use for the AC power supply back track, the necessity hour eligibility uses the single-core 62 or 72 type pack the cable.
Disallow the cent to cross the magnetism piping mutually when single-core cable establish, the in order to prevent results in the descent that cable transport electric current ability.
