PVC Cable Flexible 70mm Insulated Copper Flexible Cable 150sqmm X 3core
Henan Hongda Cable Co., Ltd.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：pvc cable flexible
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC
- Model：YJV
- Brand：Hongda
- Core：1 Core, 2 Core, 3 Core, 4 Core, 5 Core
- Rated Voltage：0.6,1 Kv
- Transport Package：500m Per Drum
- Specification：1.5 - 630 sq. mm
- Trademark：Hongda
- Origin：China
- HS Code：8544492100
- Production Capacity：800 Kilometers Per Month
Description

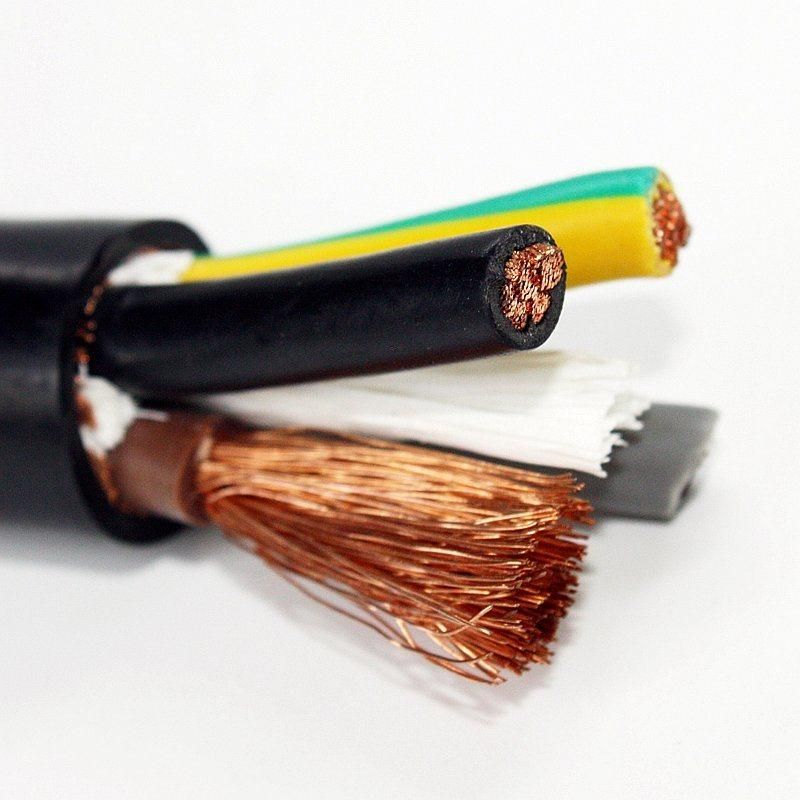

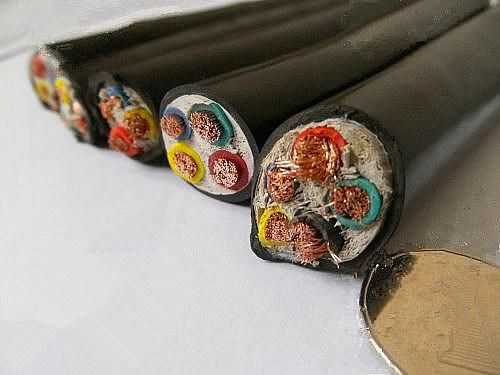

b, Cable Construction:
Conductor: Flexible copper
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Sheath: Polyvinyl chloride (PVC)
c, Cable Nominal Section:
Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800
d. Copper Cable Operating Features:
1) The maximum conductor operating temperature: 90°C
During short circuit (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250°C
Environment temperature should be no lower than 0°C for laying the cable.
2) Bending Radius of the Cable:
Single Core Cable: Non Armored Cable 20D, Armored Cable 15D
Cores Cable: Non Armored Cable 15D, Armored Cable 12D.
Remarks: D means practical external diameter of the cable
e, Copper Cable Features:
XLPE insulated power cable do not has excellent electric, mechanical properties,but also has powerful resistance against chemical corrosion,heat resistance and enviromental stress resistance. Its structure is simple. The long period operating temperature is +90 °C. It is conveninet to use and can be laid with no restriction of different level.
XLPE insulated steel wire armoured power cable: XLPE/PVC insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmetal stress resisting antichemical corrossion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.
Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology(peroxide, silane and irradiation crosslinking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke non-halogented and three classes of A, B, C.
2. Standard:
IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.
3. The Rated Voltage(kv):
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
4. Application:
1)These cables are most suitable for direct burial or for installation on trays or ducts, Where there is
a risk of mechanical damage, armoured cables should be used.
2) For laying in ground along route with large difference of level able to bear external mechanical forces.
Low Smoke, Free Halogen, Copper conductor,1x500mm XLPE Copper Cable Product Details,
Packing:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping:
Port: Qingdao, Shangai, Guangzhou or other ports as per your requirments.
Sea freight: FOB/C&F/CIF/DDU quotation are all available.
