• Model NO.：UTP Cat5e
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, SGS,CPR,ETL,ISO9001
• Model：UTP Cat5e
• Brand：Risun or OEM
• Insulation Material：HDPE
• Ripcord：500d
• UV：Available
• Waterproof：Available
• Frame Returdant：Available
• No.of Conductor：8 Core, 4pairs
• Indoor/Outdoor：PVC,PE,PVC+PE,PVC+PVC,LSZH
• N.W.：8.5kgs
• G.W.：10kgs
• Color：Blue, White or According Customer Requirement
• Transport Package：305m,Pull Box, 2 Pull Box,CTN.
• Specification：ETL, CE, RoHS, SGS, ISO9001
• Trademark：Risun or OEM
• Origin：Hangzhou, Zhejiang, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes Per Month

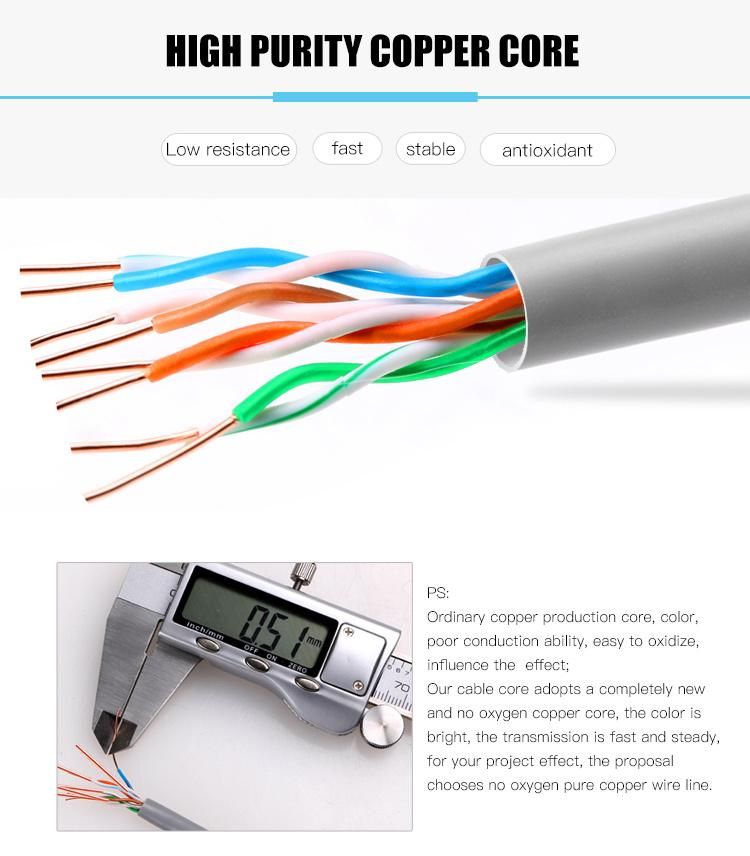

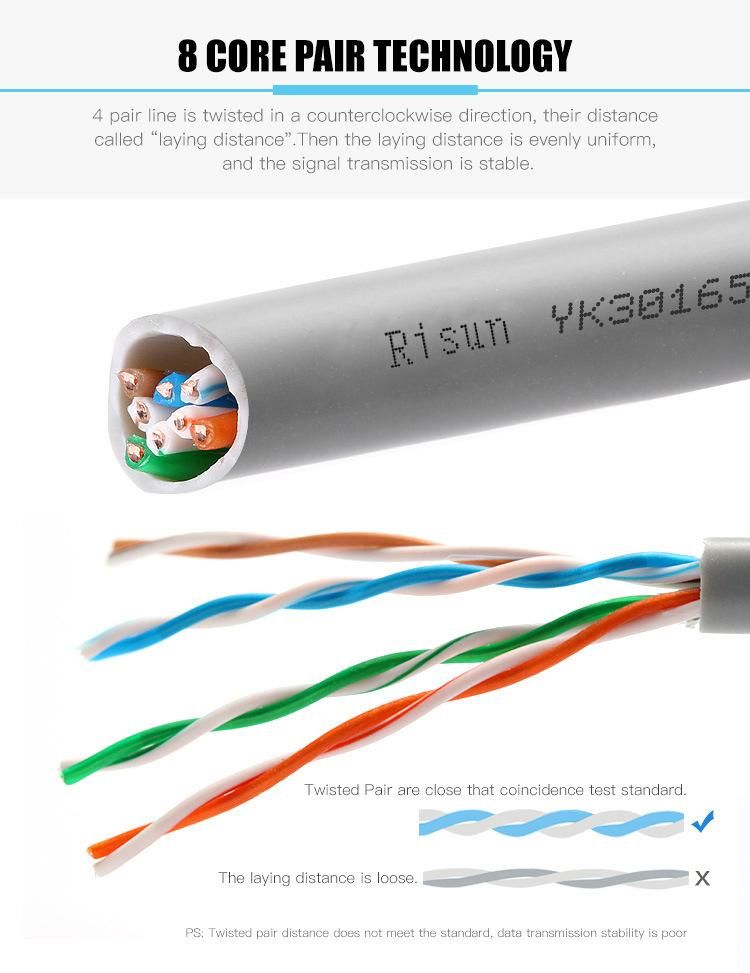

UTP CAT5E solidConductor24AWG Bare Copper   0.5±0.01mm  99.99% Bare Copper/CCAInsulationPE (Polyethylene), 0.81 mm.diameterCores/Pairs8/4Jacket5.1±0.2mm PVC(PE,LSZH)ColorBlue, White or according customer requirementPackage305M/1000ft, Wooden Reel, Carton, PalletDelivery timeNormally 25 days after received the deposit.Benefit Flexible jacket with ripcord strips clearly,
COLORSTRIPE PAIR for easy identificationApplicationGigabit Ethernet(1000 Base T), Fast Ethernet, 100 Mbps TPDDI, 10 Base T, 155 Mbps ATM, ISDN,
Broadband video and Analog voice and digital Voice (VoIP)

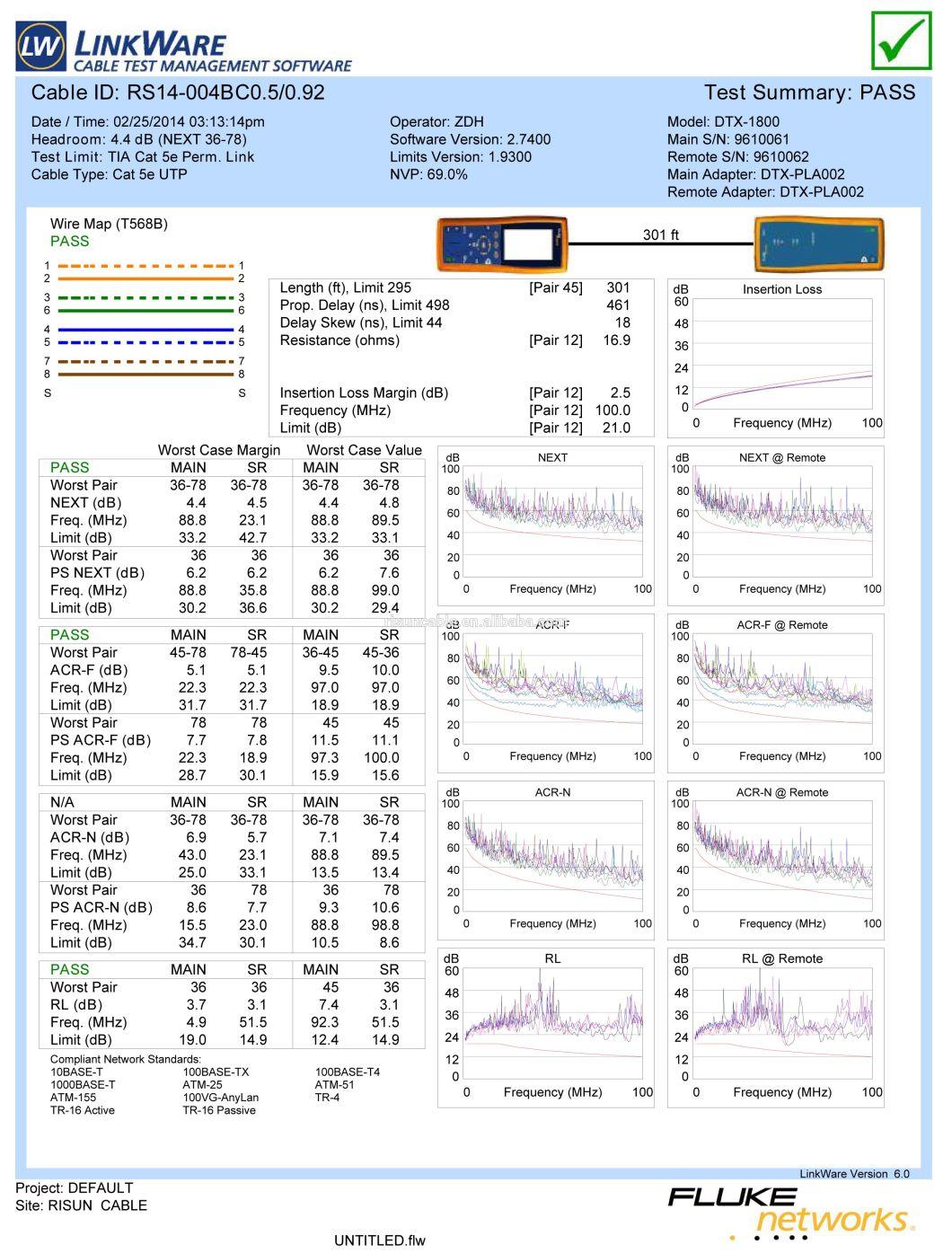

ELECTRICAL SPECIFICATIONS:Impedance100+/-15 OhmsMutual Capacitance5.6 nF max/100mDC Resistance9.38 ohms max/100m @ 100 MHzDC Resistance Unbalance5% max of a pairNormal Velocity of PropagationNon - Plenum insulated 69 %
Plenum FEP insulated 70 %Delay Skew25 ns/100 m.Propagation Delay536 ns/100 m.@350 MHzAttenuation to Crosstalk Ratiomin 16.3 dB @100 MHz, typical 20.3 dB
min 7.4 dB @155 MHz, typical 11.4 dBOperating temperature-20°C to 60°CStorage temperature-20°C to 80°CVoltage300 VAC. or VDC


Details Images:











Company Introduction:
Since its creation in 2007, RISUN cable has beenspecialized in manufacturing of high quality network cable, coaxial cable, telephone wire and alarm cable. Our company maintains a quality assurance system to international standard ISO9001 to meet all clients expectation. OEM service is available for customer's special projects at affordable prices.

We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.



Packing&Shipping:













Why Choose Us:



FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.

Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.

Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.

Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)

Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.

Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
 WELCOME TO RISUN!!!
