• Material Shape：Round Wire
• Range of Application：LSOH
• Certification：ISO9001, CE, CCC
• Transport Package：in Roll
• Specification：1.5mm2 2.5mm2 4mm2 6mm2 10mm2
• Origin：China
• HS Code：8544601200

Basic Info.

Material Shape Round Wire Range of Application LSOH Certification ISO9001, CE, CCC Transport Package in Roll Specification 1.5mm2 2.5mm2 4mm2 6mm2 10mm2 Origin China HS Code 8544601200

Product Description

Application

suitable for use in electronic and electrical equipment designed for export to European countries. It is also recommended for use as MRO replacement of European made equipment wire.

Standard

Conductor according to VDE 0295, class 5 (IEC 60228, class 5) Cable design according to VDE 0281 part 101 RoHS compliant according to 2002/95 EC

Conductor

Bare copper wire VDE 0295 / IEC 60228 class 5 The dimensions specified in the technical datasheet are regarded as standard values. The actual cross sections may vary. The cables are manufactured according to European standards with a conductor cross section, AWG sizes are approximate values and vice-versa. Always observe relevant standards valid for divergent operating conditions when laying for greater limit current loads.

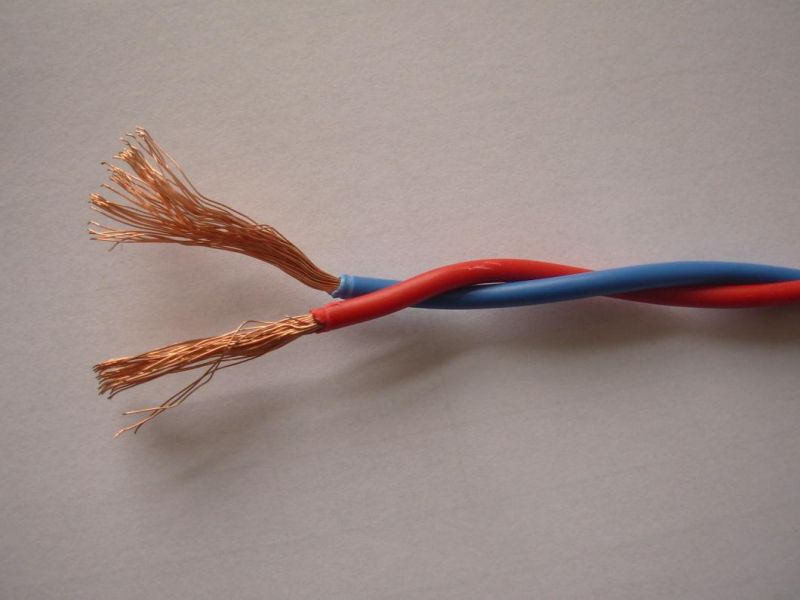

conductor:bare copper conductor, fine wired stranded, class 5. acc. to IEC 60228 / HD 383 / DIN VDE 0295

Insulation:PVC compound TI1 acc. to IEC 60227-3 / HD 21.3 S3 / DIN VDE 00281 part 3

Conductor color:acc. to IEC 60446 i.e. EN 60446 (corresponding to DIN VDE 0293)
