• Model NO.：Middle Voltage Cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Model：YJV
• Brand：Yifang Cable
• Screen：Copper Tape
• Sheath Color：Black,Red
• Transport Package：Drum, Reel or According to Cusotmer′s Request
• Specification：1*50mm2 to 3*500mm2
• Trademark：Yifang
• Origin：Henan, China
• HS Code：8544600000
• Production Capacity：50, 000, 000km,Year

Basic Info.

Model NO. Middle Voltage Cable Wire Core Material Bare Copper Wire Certification ISO, CCC, CE Model YJV Brand Yifang Cable Screen Copper Tape Sheath Color Black/Red Transport Package Drum, Reel or According to Cusotmer′s Request Specification 1*50mm2 to 3*500mm2 Trademark Yifang Origin Henan, China HS Code 8544600000 Production Capacity 50, 000, 000km/Year

Product Description

1. The products are mainly complying with iec 60502 standard, also can be produced according to OEM requirements and other standards, such as bs standard, DIN standard, ASTM standard, etc.

Voltage grade is up to 35kv, cross-section area can be up to 400 sqmm (copper or aluminiun conductor). Conductor long-time operating temperature is 90 degrees. In short circuit, conductor highest temperature should be not more than 250 degrees.

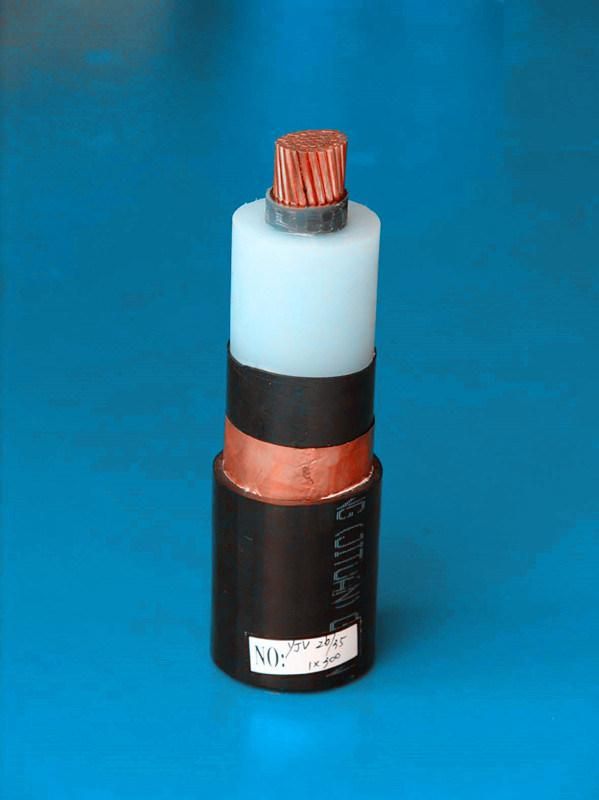

2. Brief Construction:
Single core or multi-core
Copper or aluminium conductor
XLPE insulation
Copper tape or copper wire screen
Galvanized steel wire armored
PVC or PE sheath

3. Laying conditions: For lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force
