0.5mm*2 PVC Insulated Type T Extension Cable with Ss Shield
Ohmalloy Material Co., Ltd.- Conductor Type：Solid
- Application：Temperture Measurement
Base Info
- Model NO.：TX 0.5*2
- Conductor Material：Copper,CuNi
- Sheath Material：Ss
- Insulation Material：PVC
- Material Shape：Flat Wire
- Range of Application：Temperture Measurement
- Certification：CCC, RoHS
- Brand：Ohmalloy,OEM
- Product Name：Type T Extension Cable
- Jacket Material：PVC
- Color Code：ANSI
- Cunstomized Service：Color, Insulation,Package
- MOQ for Customize：500 Meter
- Application Way：Thermocouple Extension Cable

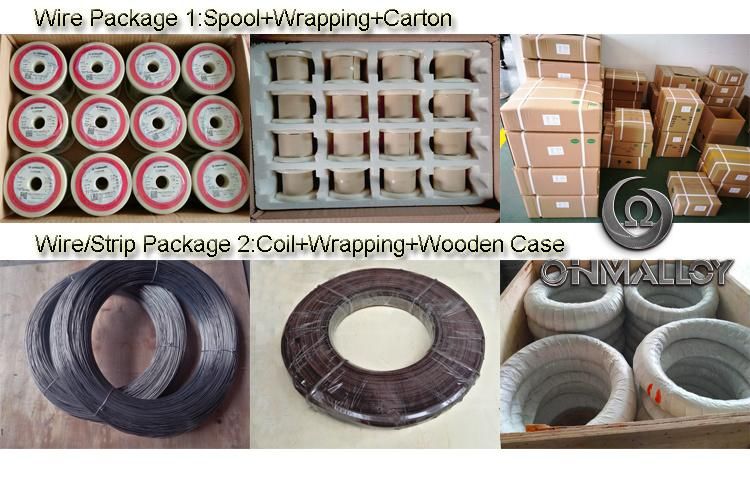

- Transport Package：Coil+ Waterproof Paper+ Wooden Case
- Specification：0.5mm*2
- Trademark：Ohmalloy,OEM
- Origin：China
- HS Code：9025900090
- Production Capacity：10000 Meter,Day
- Package size per unit product：40.00cm * 40.00cm * 20.00cm
- Gross weight per unit product：10.000kg
Description

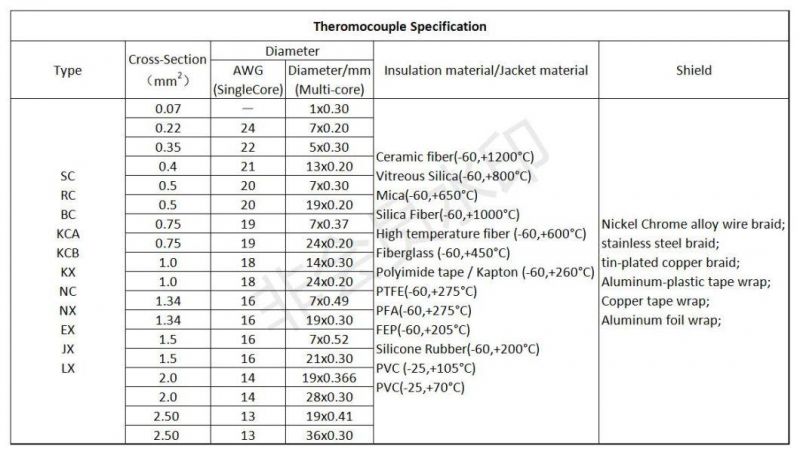

Chemical composition (%) 2. Physical Properties and Mechnical Properties Material Density(g/cm3) Melting point(ºC) Tensile Strength(Mpa) Volume resistivity(μΩ.cm) Elongation rate (%) The compensation cable has the following advantages: improving thermocouple temperature measurement line physical properties and mechanical properties; improving the measurement line flexibility and making the connection convenient by using multi-strand core or small-diameter compensation wire; easy to shield external interference; reducing measuring lines cost. Thermocouple Cable Grade A:Extension Grade Cable Whose wire composition is totally as the same as the thermocouple wire, remarked by the letter"X"after the thermocouple symbol number, such as"KX""JX""TX" B:Compensation Grade Cable Whose wire composition is different from the thermocouple wire, but its wire electromotive force (EMF) value is the same as thermocouple wire only at 0-100ºC or 0-200ºC. It remarked by the letter"C"after the thermocouple symbol number, such as"KC""JC""TC" Performance Material Linear None Accuracy Low High Price Low 2. Size Range Reference 3. Package Reference 5. Questions and Answers Q1:How can I contact with your company? A1:We have multiple communication channels Q2:Do you provide free samples? A2:Yes,we can provide free samples for your testing,but buyer should bear the shipping costs. Q3:What is your payment terms? A3:30% in advance,balance after receiving the copy of B/L. T/T,L/C,Western Union,Paypal is OK. Q4:What is your lead time? A4:On normal condition,the lead time is 7 days after the payment. Special order or quantity is subject to the negotiation. Q5:What is your working time? A5: Monday to Firday: 9:00-12:00,13:30-17:30, rest in weekend.Ni Cu Si Iron Al TP(Copper) 100 TN(Constantan) 45 55 TP(Copper) 8.9 1084 >196 1.71(20ºC) >30 TN(Constantan) 8.8 1220 >390 49.0(20ºC) >25
In actual temperature measurement, usually there are long measuring distance with the measuring device, a thermocouple compensation wire is generated to compensate the temperature difference caused by the temperature change between the measuring device and the thermocouple connecting piece.Extension Grade Compensation Grade Same as thermocouple Different from thermocouple EMF Value Feature Same as the thermocouple's at certain temperature range Same as the thermocouple's Deviation Curve Nonlinear, varies with temperature Working Temperature Range Limited(usual at 100ºC) Unlimited(depend on insulation material temperature bearing) Line Resistance Low resistance High resistance Compensation Contact Interference Different contactor material may cause interference High(about 1-2 times higher)
