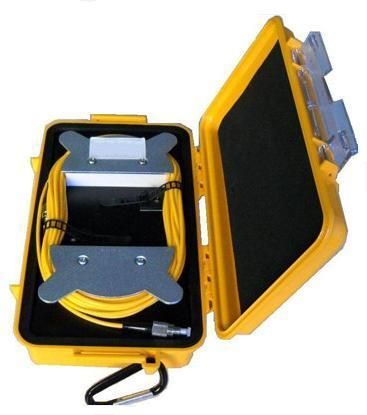

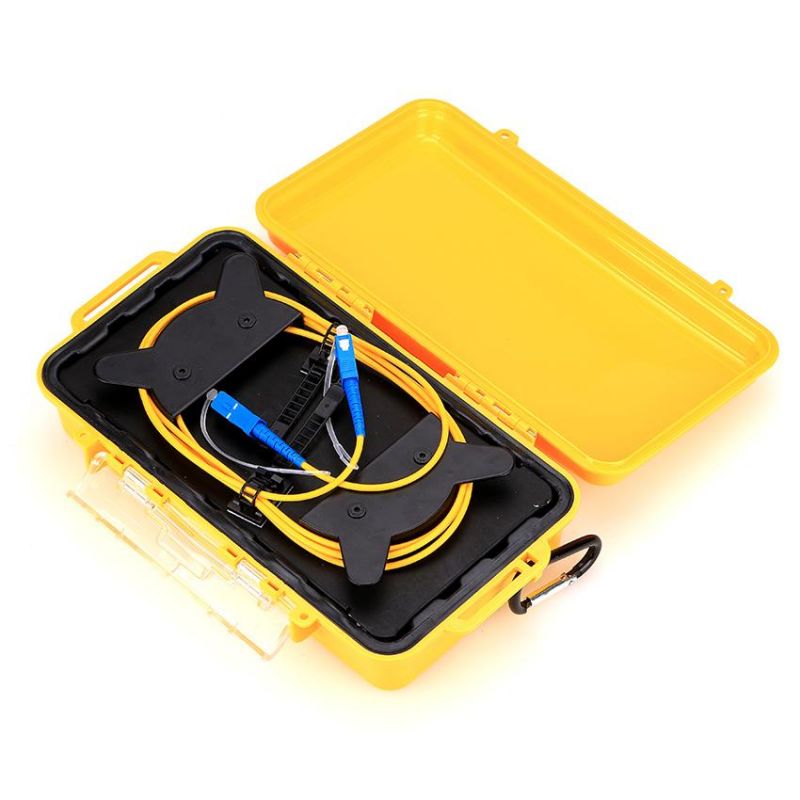

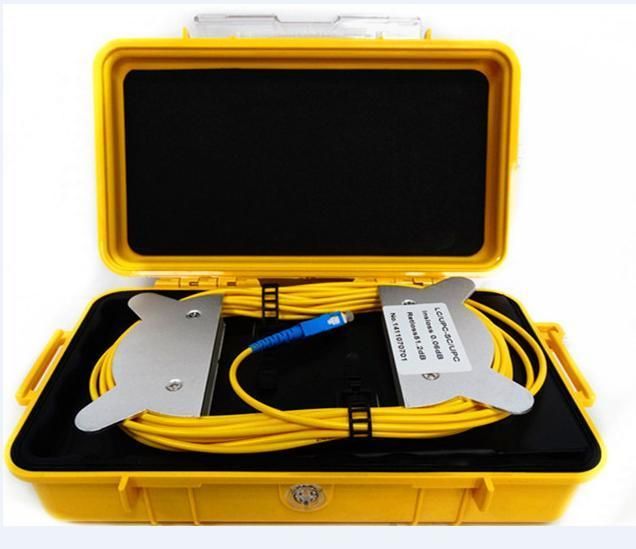

OTDR Launch Cable Box
Nanjing Tianxingtong Electronic Technology Co., Ltd.- Condition：New
- Origin：Made in China
Base Info
Description
IntroductionDesigned to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflect meters (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Available in many different configurations and fiber lengths.Feature:
Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration.
Compound Latch for positive seal and easy opening with locking feature.
Nonmetal construction will not dent, corrode, or conduce electricity.
Water and dust prove allowing the unit to be taken into almost any environment
Case can house up to 2,000 meters of fiber
Auto Purge Valve for changes in altitude and temperature
How OTDR launch cable works
Specifications:
| Length | 500M,1KM, 2KM....(customize) |
| Application | FTTH FTTB FTTX Network |
| Fiber Type | Single mode, Multimode |
| Fiber connector | FC, LC, SC, ST/PC or APC |
| Length x Width x Height | 9.37" x 5.56" x 2.62" (238x141x66mm) |
| Material | SR Polypropylene |
| Weight | 0.75kgs(without fiber) |
| Operating temperature | -40° to +55°C |
| Typical Loss | < 0.5dB @ 1310nM for 1000 meters |
