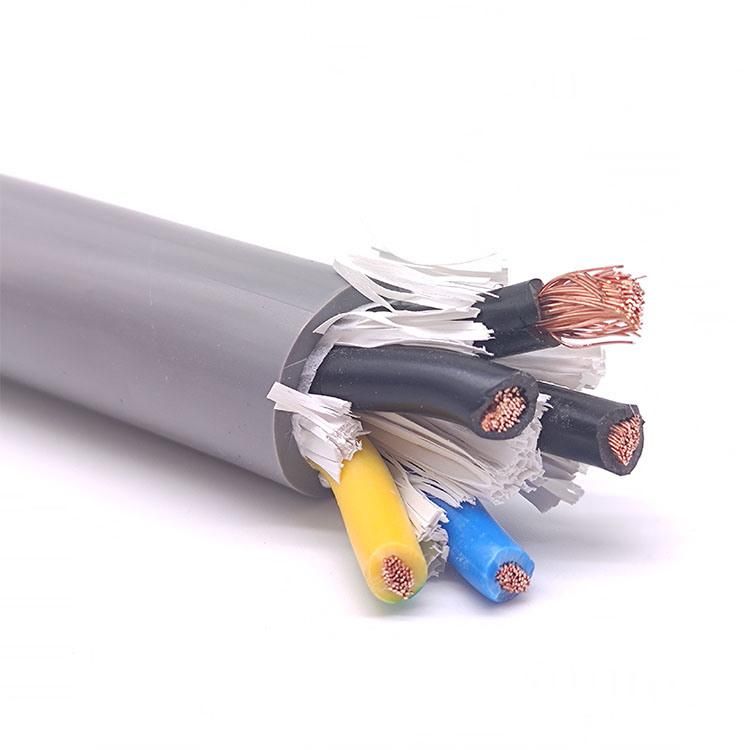

NYY-O/NYY-J Power Cable 0.6/1kv 3X6mm2+2X4mm2

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Underground, Installation
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：NYY-O,NYY-J Power Cable
  • Material Shape：Round Wire
  • Range of Application：Installation
  • Certification：ISO9001, CE, UL, RoHS
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemNYY-O/NYY-J CableConductorBare copper strandInsulationPVCOuter SheathPVCNominal VoltageU0/U: 0.6/1KVMinimum bending radiusSingle core: 15 x d ; Multi core: 12 x dTest voltage2000 VTemperature RangeOccasional flexing: -5°C to +50°C
Fixed installation: -40°C to +70°CColorOptionalCertificationCEApplicationPower cable for use in generating plants, industrial facilities, switching stations, in local networks and power supply industry. Use predominantly for laying underground, indoorand outdoor use, cable channels and in water.
