Glass Fiber Insulation Wire Silicone UL 3122 22AWG High Temperature Cable Fire Proof Fiberglass Jacket

Henan Hongda Cable Co., Ltd.

Type：Insulated
Conductor Type：Flexible
Application：Heating, Heating Light Source, Motor, Air Conditioner, Oven
Conductor Material：Tinned Cooper Wire
Sheath Material：Fiberglass
Insulation Material：Silicone Rubber

Base Info

Model NO.：glass fiber insulation wire silicone ul 3122 22awg
Material Shape：Round Wire
Range of Application：Heating Light Source, Motor, Air Conditioner, Oven
Certification：ISO9001, CE, UL, CCC, RoHS, VDE
Brand：Hongda
Standard：UL
Product Name：Glass Fiber Insulation Wire Silicone UL 3122 22AWG
Key Word：Glass Fiber Insulation Wire Silicone UL 3122 22AWG
Transport Package：Wooden Box
Specification：silicone ul 3122 22awg high temperature cable
Trademark：HONGDA CABLE
Origin：Henan China
HS Code：8544492100
Production Capacity：500000meter,Week

Description

Basic Info.

Model NO. glass fiber insulation wire silicone ul 3122 22awg Material Shape Round Wire Range of Application Heating Light Source, Motor, Air Conditioner, Oven Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Hongda Standard UL Product Name Glass Fiber Insulation Wire Silicone UL 3122 22AWG Key Word Glass Fiber Insulation Wire Silicone UL 3122 22AWG Transport Package Wooden Box Specification silicone ul 3122 22awg high temperature cable Trademark HONGDA CABLE Origin Henan China HS Code 8544492100 Production Capacity 500000meter/Week

Product Description

glass fiber insulation wire silicone ul 3122 22awg high temperature cable fire proof Fiberglass Jacket

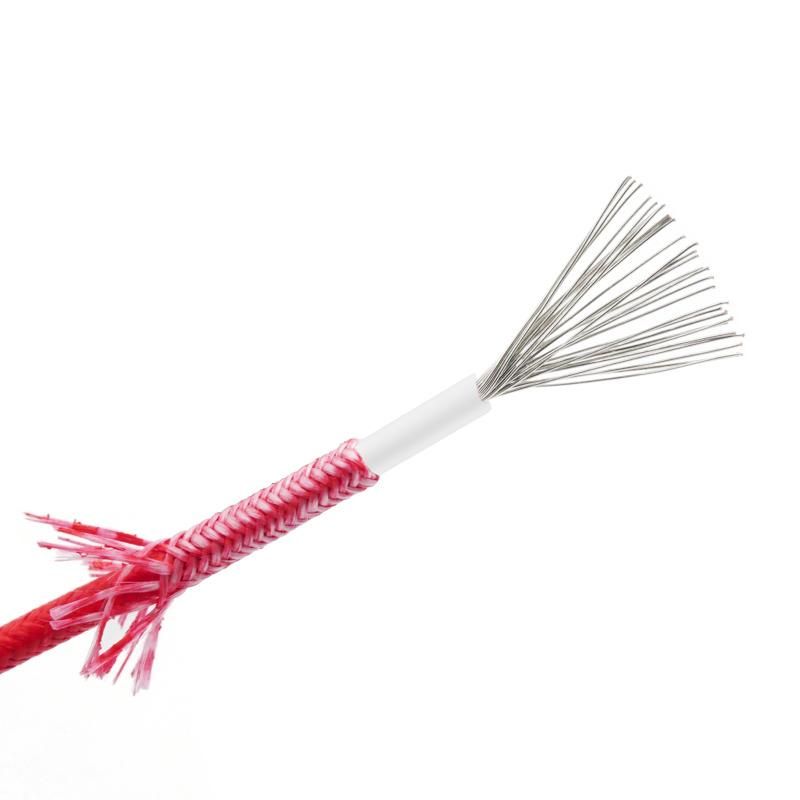

External Insulation: Fiberglass
Internal Insulation: Silicone Rubber

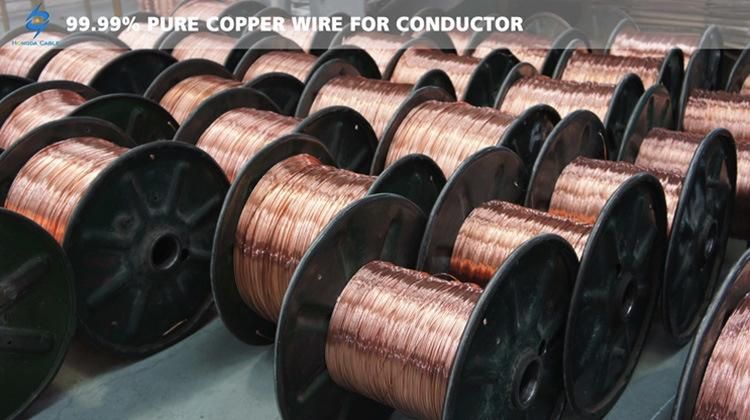

Conductor: Tinned Copper
Conductor structure: 32/0.2
Temperature: -60ºC~ +180ºC
Rated Voltage: 300/500V
Insulation Thickness: 0.5mm
OD: 2.7±0.2mm
Weight: 17±0.8kg/km
Max. Conductor Resistance DC 20ºC (Ω/km): 20

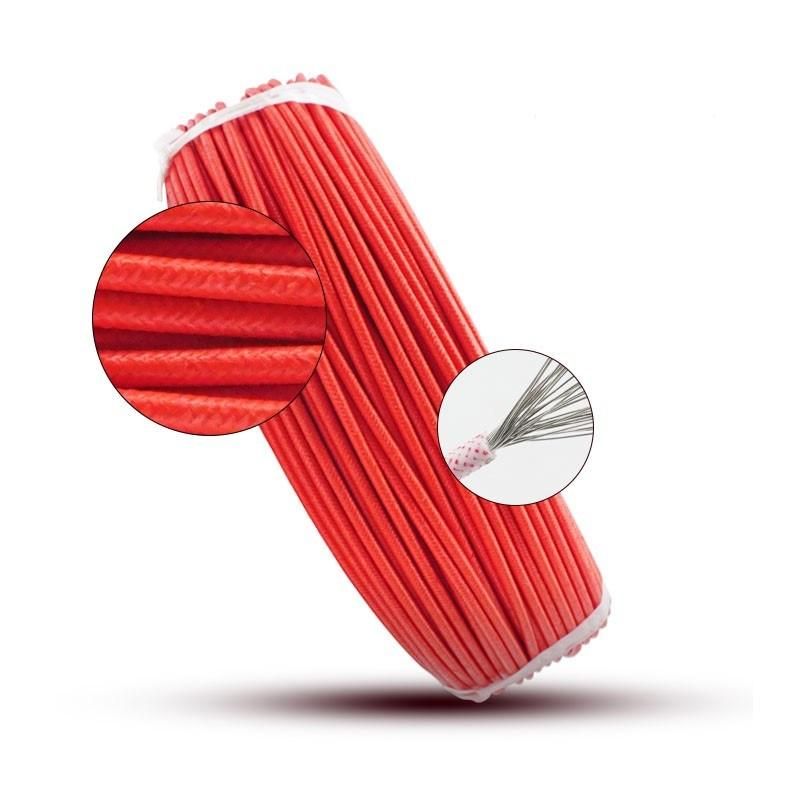

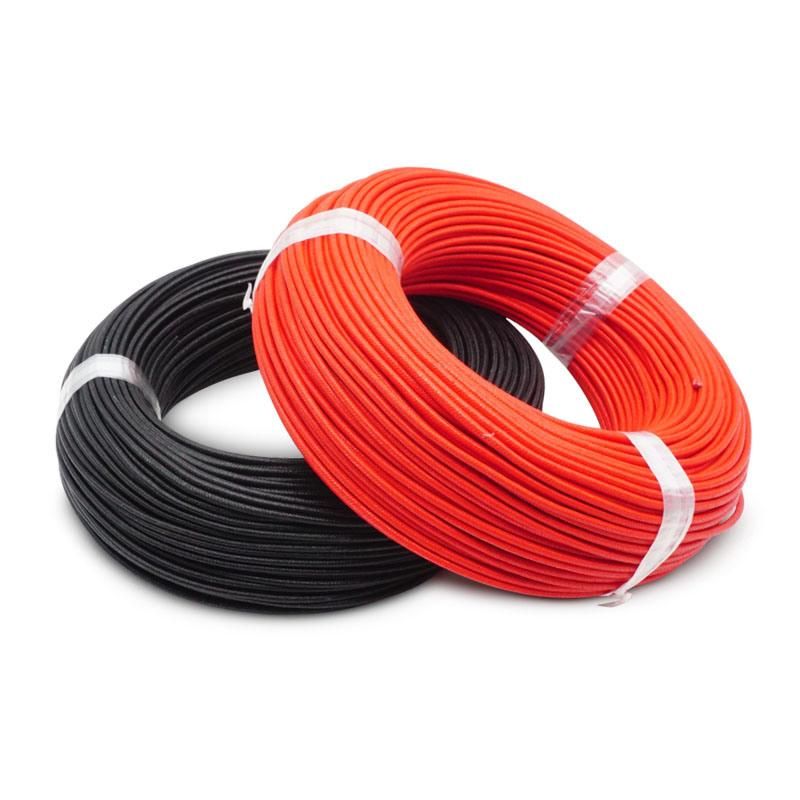

Glass Fiber Insulation Wire Silicone UL 3122 22AWG High Temperature Cable Fire Proof Fiberglass Jacket

Glass Fiber Insulation Wire Silicone UL 3122 22AWG High Temperature Cable Fire Proof Fiberglass Jacket

Glass Fiber Insulation Wire Silicone UL 3122 22AWG High Temperature Cable Fire Proof Fiberglass Jacket

Glass Fiber Insulation Wire Silicone UL 3122 22AWG High Temperature Cable Fire Proof Fiberglass Jacket

Glass Fiber Insulation Wire Silicone UL 3122 22AWG High Temperature Cable Fire Proof Fiberglass Jacket

CONTACT US FOR MORE :
