High Speed Twisted Pair Double Sheath Shield Towline Cable Anf8013 Multi-Core Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Special Thermoplastic Compound Insulation
  • Insulation Material：Special Elastomer Compound
  • Material Shape：Round Wire

Base Info

  • Model NO.：ANF8013 Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemHigh Speed Twisted Pair Double Sheath Shield Towline Cable ANF8013 Multi-core Cable ConductorSolid copper conductorInsulationSpecial thermoplastic polyestor elestomerSheildTinned copper wire braid, coverage rate 80%Outer SheathSpecial elastomer compoundCore NumberMulti-coresOperating VoltageUo/U: 300/300 V & 300/500 VTest voltage1500/2000 V Operating temperature rangeFlexible installations:-20ºC ~ +90ºC
Fixed installations:-40ºC ~ +90ºCColorOptionalApplicationThe cable adopts the core-shield twisted overall shielding structure, which can be used for transmission occasions that are easily affected by external high-frequency electric fields. It is suitable for modern machining, machine tool industry, robot and machinery production, construction machinery, heavy machinery factory,automobile manufacturing,automated warehouse, and other occasions requiring high flexibility. With abrasion resistance, low temperature resistance, environmental protection and flame retardant. The mesh-shaped shielding layer composed of high-density and high-conductivity materials, and the use of an extruded inner sheath structure can more effectively fix the position of the core, which can ensure the orderly movement of the core during the reciprocating bending of the cable, and improve the bending life. At the same time,it has strong anti-interference ability. It is particularly suitable for applications where frequent bending under high mechanical loads, flexibility at high speeds, and complex electric field interference.

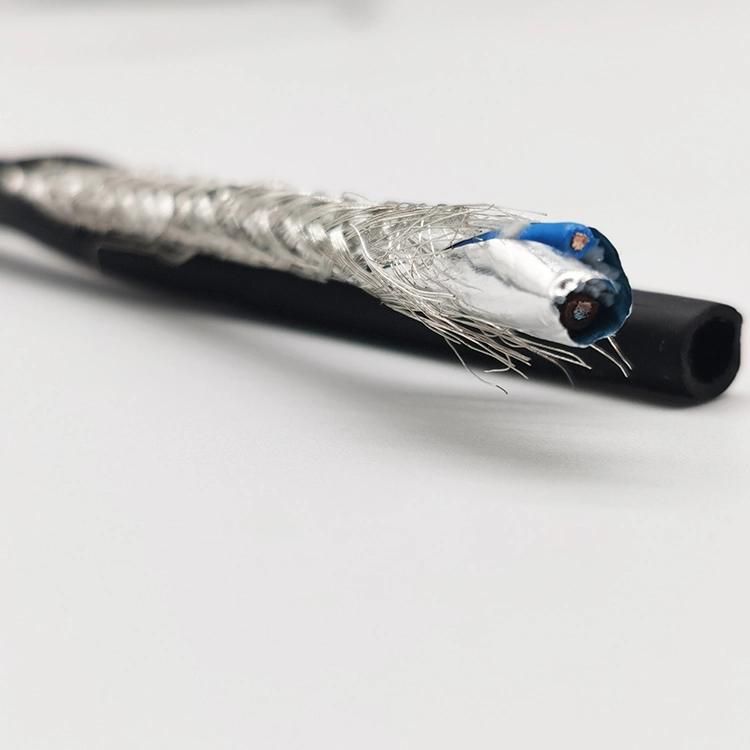

High Speed Twisted Pair Double Sheath Shield Towline Cable Anf8013 Multi-Core CableHigh Speed Twisted Pair Double Sheath Shield Towline Cable Anf8013 Multi-Core Cable

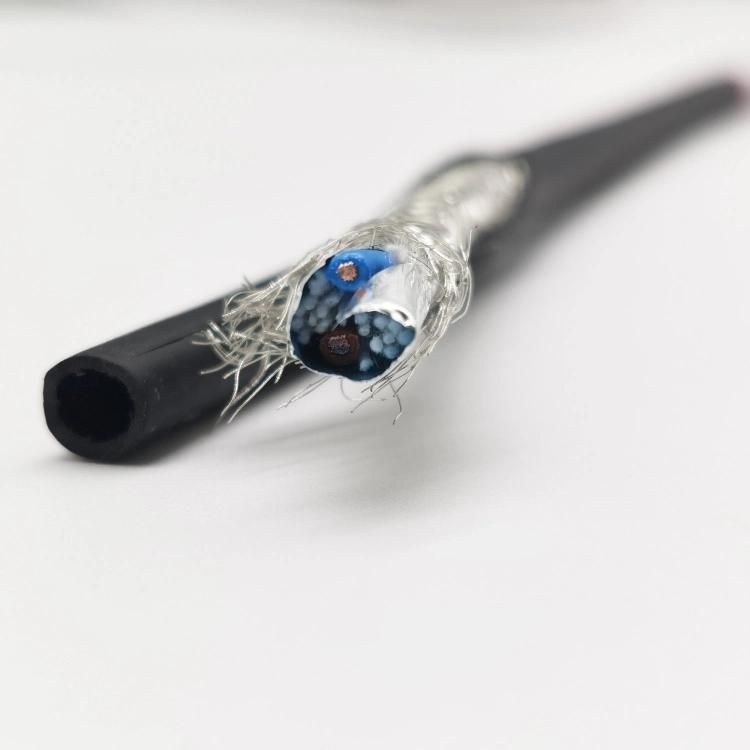

High Speed Twisted Pair Double Sheath Shield Towline Cable Anf8013 Multi-Core Cable
