0.6/1kv Copper or Aluminum Conductor 4 Core 185mm2 Armoured Power Cable

YIFANG ELECTRIC GROUP INC.
  • Application：Construction, Underground
  • Voltage：0.6,1kv
  • Current：AC Cable
  • Insulation Material：XLPE PVC
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：LV-BE55
  • Wire Core Material：Aluminum or Copper
  • Certification：ISO, CCC, CE
  • Model：Yjv Yjlv Yjv22 Yjlv22 Yjv32 Yjlv32
  • Brand：Yifang

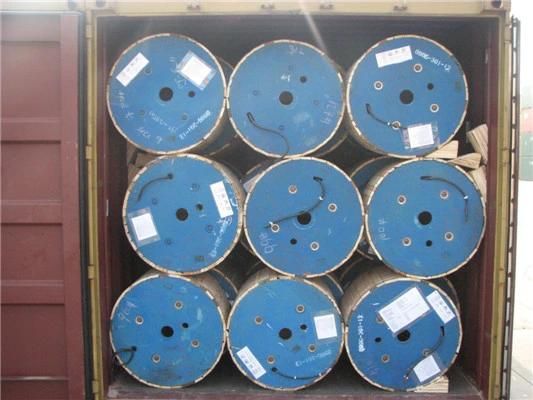

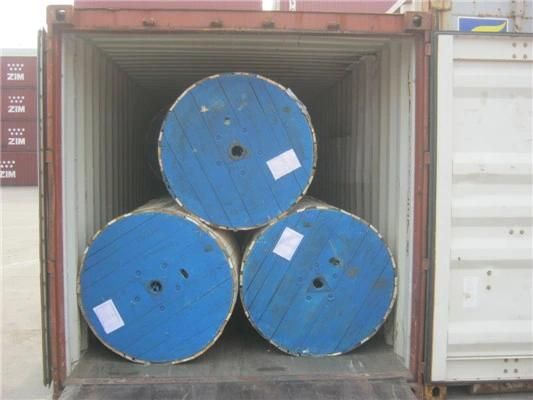

  • Transport Package：Wooden Drum or Wooden&Steel Drum
  • Specification：4*185 mm2
  • Trademark：Yifang
  • Origin：Zhengzhou City of Henan Province, China
  • HS Code：8544492100
  • Production Capacity：500 Kilometers,Month

Description

Type



Description



Main Application

Cu core

Al core

(ZR)YJV

or

(ZR)YJY

(ZR)YJLV

or

(ZR)YJLY23

(Flame retardant) Cu, Al core XLPE insulated, PVC or PE sheathed power cable.

For laying indoor, tunnel, underground and canal. Unable to bear external mechanical pulling force and pressure during laid.

(ZR)YJV22

or

(ZR)YJY23

(ZR)YJLV22

or

(ZR)YJLV23

(Flame retardant) Cu, Al core XLPE insulated, steel armoured, PVC or PE sheathed power cable.

For laying indoor, tunnel, underground and canal. Able to bear external mechanical pulling force , but unable to bear large pulling force.

(ZR)YJLV32

or

(ZR)YJLV33

(ZR)YJLV32

or

(ZR)YJLV33

(Flame retardant) Cu, Al core XLPE insulated, fine steel wire armoured, PVC or PE sheathed power cable

For laying in shaft, water under ground and large difference of level, able to bear mechanical pressure and moderate pulling force.

(ZR)YJLV42

or

(ZR)YJLV43

(ZR)YJLV42

or

(ZR)YJLV43

(Flame retardant) Cu, Al core XLPE insulated, thick steel wire armoured, PVC or PE sheathed power cable

For laying in the water, seabed and large difference of level, able to bear large mechanical pressure and pulling force.




Current rating of cablemm2mmmmmmmmmmmmkg/kmin the airunder ground4*42.250.71.20.21.81640228354*62.760.71.20.21.81748837464*104.050.71.20.21.82168847564*165.100.71.20.21.82392764764*256.000.91.20.21.827136784984*357.000.91.20.21.83015581151264*506.811.01.20.51.93321631411524*708.231.11.20.52.13624851721814*959.711.11.20.52.24128132182224*12010.951.21.30.52.44429452692674*15012.161.41.40.52.54935333133054*18513.611.61.50.52.75442363593444*24015.651.71.60.53.06056254053834*30017.531.81.70.53.1666286451422
