Cable & Wire

Customized 3 Core 2.5mm Electrical Cable Price

Henan Hongda Cable Co., Ltd.
  • Type:Insulated
  • Conductor Type:Solid or Stranded
  • Application:Housing Used
  • Conductor Material:Copper
  • Sheath Material:PVC or Nylon
  • Insulation Material:PVC or Nylon

Base Info

  • Model NO.:electrical cable
  • Material Shape:Round Wire
  • Range of Application:Normal Electrical Used
  • Certification:ISO9001, CCC
  • Brand:Hongda
  • Standard:IEC, BS, AS,NZS, SABS
  • Color:as Your Require
  • Core Number:as Your Require
  • Rated Voltage:Under 1kv
  • Rated Temperature:70c 90c 120c 200c
  • Armour:None Armour
  • Strand Number:7, 19, 37, 54, 61, 91
  • Purity of Copper Conductor:99.99%
  • Transport Package:Plastic Film, Plastic Drum
  • Specification:0.5mm2-400mm2
  • Trademark:Hongda
  • Origin:Henan China
  • HS Code:8544492900
  • Production Capacity:3000km,Month

Description

Basic Info.

Model NO. electrical cable Material Shape Round Wire Range of Application Normal Electrical Used Certification ISO9001, CCC Brand Hongda Standard IEC, BS, AS/NZS, SABS Color as Your Require Core Number as Your Require Rated Voltage Under 1kv Rated Temperature 70c 90c 120c 200c Armour None Armour Strand Number 7, 19, 37, 54, 61, 91 Purity of Copper Conductor 99.99% Transport Package Plastic Film/ Plastic Drum Specification 0.5mm2-400mm2 Trademark Hongda Origin Henan China HS Code 8544492900 Production Capacity 3000km/Month

Product Description


Customized 3 Core 2.5mm Electrical Cable Price
Customized 3 core 2.5mm electrical cable price

Customized 3 Core 2.5mm Electrical Cable Price

1  Main application
This porduct is suitable for linking the household electrical appliance,small electric tools,Instrument and power lighting devices with the rated voltage equal or less than 450/750V AC.The operation temperature of the wire is 90ºC for BV-90 and RV-90,BV-105 modle not morethan 105ºC,The other is 90ºC.Installation temperature not lower than 0ºC. standard: IEC60227 or
BS ,EN,AS

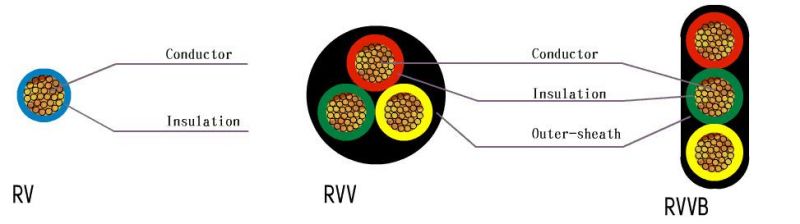

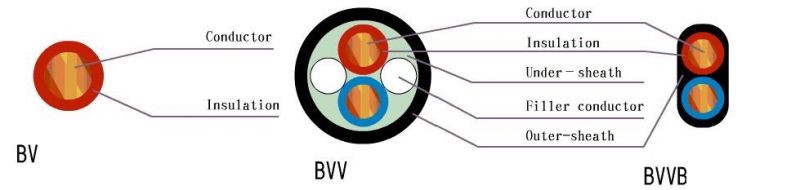

2  Structure of cable wire
Customized 3 Core 2.5mm Electrical Cable Price
Customized 3 Core 2.5mm Electrical Cable Price

3 Type,designation and application

ItemTypeDescription
160227 IEC 01(BV)Single core rigid conductor unsheathed cable
for general purposes(H07V-U or H07V-R)
260227 IEC 02(RV)Single core flexible conductor unsheathed cable
 for general purposes(H07V-K)
360227 IEC 05(BV)Single core 70ºC solid conductor unsheathed cable
 for internal wiring(H05V-U or H05V-R)
460227 IEC 06(RV)Single core 70ºC flexible conductor unsheathed cable
 for internal wiring(H05V-K)
560227 IEC 07(BV-90)Single core 90ºC solid conductor unsheathed cable
for internal wiring(H07V-U or H07V-R)
660227 IEC 08(RV-90)Single core 90ºC flexible conductor unsheathed cable
 for internal wiring(H07V-K)
760227 IEC 10(BVV)Light PVC sheathed cable(NYY or NYM)
860227 IEC 42(RVB)Flat unsheathed flexible wire
960227 IEC 52(RVV)Light PVC sheathed flexible wire
(H03VV-F,H03VV2-F)
1060227 IEC 53(RVV)Common PVC sheathed flexible wire
(H05VV-F,H05VV2-F)
11BVCopper conductor PVC insulated wire(H07V-U or H07V-R)
12BLVAluminum conductor PVC insulated wire
13BVRCopper conductor PVC insulated flexible cable(H07V-R)
14BVVCopper conductor PVC insulated sheathed
 circular cable(NYY or NYM)
15BLVVAluminum conductor PVC insulated and sheathed round cable
16BVVBCopper conductor PVC insulated and sheathed flat cable
17BLVVBAluminum conductor PVC insulated sheathed flat cable
18NMDCopper conductor PVC/Nylon Insulated PVC Jacked flat cable
19RVSTwisted copper conductor PVC insulated flexible cable for conection
20AVPCopper conductor PVC insulated wire with shied for installation
21RVPCopper conductor PVC insulated flexible wire with shield
22RVVPCopper conductor PVC insulated, shielded,
PVC sheathed flexible cable

4.Factory


     Henan Hongda Cable Co., Ltd. located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Hongda Cable
covers an area of 100,000 square meters, including 50,000 square meters of building area. We have more than 120 staff members and professional workers. our fixed assets of 90,000,000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity
     Henan Hongda Cable Co. Ltd. is the original Zhengzhou Hongda Cable Co. Ltd. established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products,We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 300 (sets) domestic and oversea-leading production and testing equipment

5.Packing and Transportation
  We provide you with the best product packaging design services, thereby allowing you to save more shipping charges


6.Certificate
Customized 3 Core 2.5mm Electrical Cable Price
7.FAQ

   Q: Are you the factory or the trading company?

    A: We are the factory.

   Q: How long is your guarantee Period?

    A: We uaually offer 1 year guarantee for our general products.

   Q: How can I get the samples?

    A: We can make the sample order. And usually we will charge for it.

        But the samples fee will be return to you when you make the bulk order.

   Q: Where is your factory? How can we visit your factory?

    A: Our factory located in Zhengzhou city, Henan Province. You could reach here by train and by air.

        We can pick you up in the airport and the railway station.

   Q; What is your MOQ?

    A: It`s base on the cable type or wire type. Please contact me. We will let you know.
