35mm2 25mm2 95mm2 70mm2 185mm2 Aluminum Conductor Electrical Power Cable
Henan Hongda Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：single core aluminum cable
- Wire Core Material：Aluminum
- Certification：ISO, CCC, CE
- Model：Al,PVC,PVC
- Brand：Hongda
- Stanard：IEC60502-1
- Sample：Free Supply
- Transport Package：Wooden Drum
- Specification：single core 15~630sqmm
- Trademark：Hongda
- Origin：China
- HS Code：8544492100
- Production Capacity：1000km,Month
Description
YJV CU/XLPE/PVC
YJLV
AL/XLPE/PVCmm2 mm mm mm mm kg/km kg/km A A A A 1×4 RE 2.24 0.7 1.4 6.5 73.7 49.0 45 35 60 50 1×6 RE 2.76 0.7 1.4 7.0 95.8 58.7 55 45 70 50 1×10 CC 3.8 0.7 1.4 8.0 140.1 78.2 75 60 95 75 1×16 CC 4.8 0.7 1.4 9.0 201.8 102.8 100 80 125 100 1×25 CC 6.0 0.9 1.4 10.6 298.9 144.2 140 115 160 130 1×35 CC 7.0 0.9 1.4 11.6 396.7 180.2 175 140 190 150 1×50 CC 8.4 1.0 1.4 13.1 543.9 234.6 210 170 225 180 1×70 CC 10.0 1.1 1.4 15.0 744.7 311.6 270 215 280 225 1×95 CC 11.5 1.1 1.5 16.6 985.6 397.8 340 275 335 270 1×120 CC 13.0 1.2 1.5 18.4 1233.0 490.6 400 320 380 305 1×150 CC 14.5 1.4 1.6 20.5 1533.8 605.8 460 370 425 340 1×185 CC 16.2 1.6 1.6 22.7 1884.9 740.3 530 415 480 375 1×240 CC 18.4 1.7 1.7 25.3 2418.0 933.1 625 490 555 435 1×300 CC 20.5 1.8 1.8 27.7 2996.5 1140.4 720 565 630 495 1×400 CC 23.5 2.0 1.9 31.4 3962.3 1487.5 815 640 705 555 1×500 CC 26.5 2.2 2.0 35.0 4933.0 1839.5 855 680 765 595 1×630 CC 30.0 2.4 2.2 39.1 6188.8 2291.0 980 790 860 680

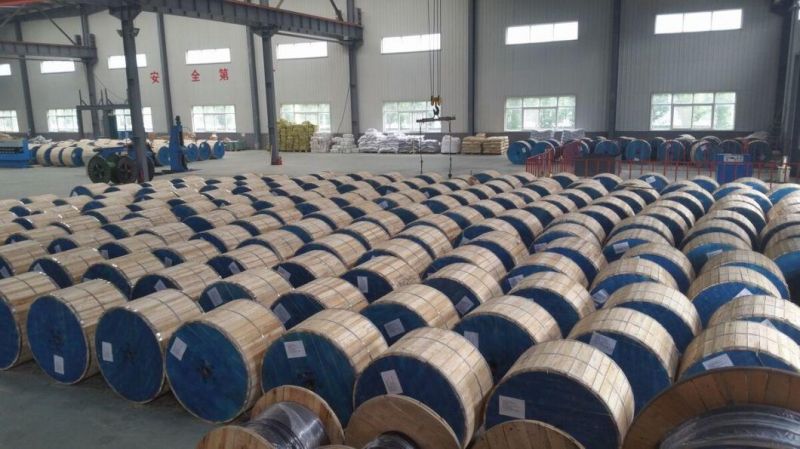

Packing:
Best Regards
Henan Hongda Cable Co., Ltd http://zzhongdacable.en.made-in-china.com
Changping Road 3,Zhandian NewDistrict,Wuzhi County,Jiaozuo,Henan Province, China
Office Add: Room2108,Yaxing Times Square,Zhengzhou,Henan,China. P.C. 450000
************************************************************************************************
YJLV
AL/XLPE/PVC
| Nominal section area (mm2) | Copper conductor (Ω/km) | Aluminum conductor (Ω/km) |
| 1.5 | 12.1 | - |
| 2.5 | 7.41 | 12.1 |
| 4 | 4.61 | 7.41 |
| 6 | 3.08 | 4.61 |
| 10 | 1.83 | 3.08 |
| 16 | 1.15 | 1.91 |
| 25 | 0.727 | 1.20 |
| 35 | 0.524 | 0.868 |
| 50 | 0.387 | 0.641 |
| 70 | 0.268 | 0.443 |
| 95 | 0.193 | 0.320 |
| 120 | 0.153 | 0.253 |
| 150 | 0.124 | 0.206 |
| 185 | 0.0991 | 0.164 |
| 240 | 0.0754 | 0.125 |
| 300 | 0.0601 | 0.100 |
| 400 | 0.0470 | 0.0778 |
| 500 | 0.0366 | 0.0605 |
| 630 | 0.0283 | 0.0469 |
