• Model NO.：UL2464
• Wire Core Material：Copper
• Certification：ISO, RoHS, UL, VDE, Reach
• Model：UL2464
• Brand：Bort
• Color：White Blue Red Black Yellow
• Rated Voltage：300V
• UL Flame Test：UL Vm-1&CSA FT1
• Current：DC,AC
• Species：Terminal
• Character：Environmental Protection
• User：Socket Terminals
• Transport Package：Coil
• Trademark：BORT
• Origin：China
• HS Code：8544492900
• Production Capacity：5000kilometer,Per Year

Basic Info.

Model NO. UL2464 Wire Core Material Copper Certification ISO, RoHS, UL, VDE, Reach Model UL2464 Brand Bort Color White Blue Red Black Yellow Rated Voltage 300V UL Flame Test UL Vm-1&CSA FT1 Current DC/AC Species Terminal Character Environmental Protection User Socket Terminals Transport Package Coil Trademark BORT Origin China HS Code 8544492900 Production Capacity 5000kilometer/Per Year

Product Description

UL2464 Flexible PVC Jacket Heat Resistant Cable



★Rated temperature:80ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2

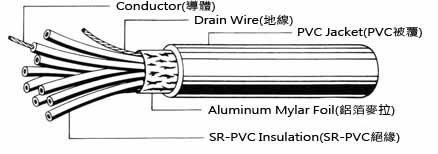

★Solid or stranded,tinned or bare copper conductor
★PVC insulation
★Cores cabled under AL-MYLAR shield
★Tinned or bare stranded copper drain wire
★Tinned or bare stranded copper wire overall more than 80% coverage braided shield
★PVC jacket
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure easy stripping and cutting
★Sound broadcast,audio,instrumentation&computer


AWG/NO.OFCOND	No./mm	mm	m/n/d	mm	mm
24×2C	11/0.16	0.25	16/4/0.10	0.80	4.35
24×3C	11/0.16	0.25	16/4/0.10	0.80	4.50
24×4C	11/0.16	0.25	16/5/0.10	0.80	4.80
24×5C	11/0.16	0.25	16/6/0.10	0.80	5.10
24×6C	11/0.16	0.25	16/6/0.10	0.80	5.45
24×7C	11/0.16	0.25	16/6/0.10	0.80	5.50
22×2C	17/0.16	0.25	16/5/0.10	0.80	4.75
22×3C	17/0.16	0.25	16/6/0.10	0.80	4.95
22×4C	17/0.16	0.25	16/6/0.10	0.80	5.30
22×5C	17/0.16	0.25	16/7/0.10	0.80	5.65
22×6C	17/0.16	0.25	16/8/0.10	0.80	6.05
22×7C	17/0.16	0.25	16/8/0.10	0.80	6.10
