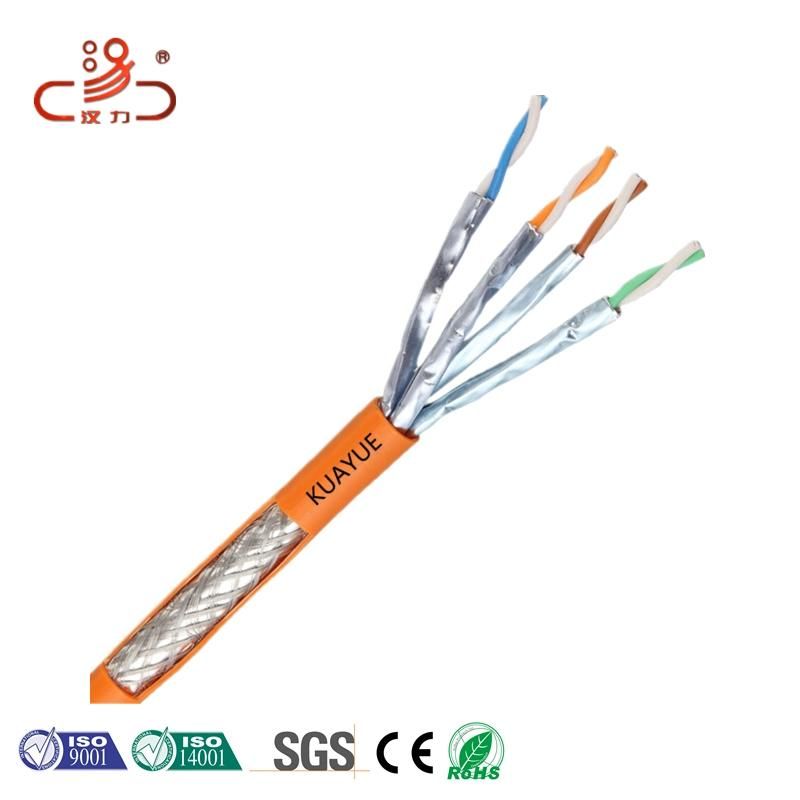

• Model NO.：Cat6a
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, CCC, UL, VDE
• Model：SFTP
• Brand：Kuayue
• Conductor：Bc,CCA
• Insulation：HDPE
• Shield：Al-Foil
• Braiding：48-144*0.12mm CCA
• 2ND Shield：Al-Foil
• Jacket：LSZH,PVC
• Length：305 M
• Transport Package：305m
• Specification：44X44X23
• Trademark：hanli
• Origin：Zhejiang
• HS Code：8544491100
• Production Capacity：1800km,Week

Product Name/Code: Cat 6a PVCPerformanceApplication:FrequencyRLAttenuationNEXTPSNEXT100 Base-T4 (MHz)(dB)(dB/100m)  100 Base-TX  min.maxmin (dB)min (dB)100VG - AnyLAN 1.00020.002.0080.0077.001000 Base-T (Gigabit Ethernet) 4.00023.003.6080.0077.00155 Mbps ATM 10.0025.005.7080.0077.00622 Mbps AT 16.0025.007.2080.0077.00Reference Standard20.0025.008.1080.0077.00EIA/TIA 568B & ISO/IEC 1180131.2523.6010.1080.0077.00Cable Construction62.5021.5014.5075.5072.50ConductorSolid Bare Copper100.0020.1018.5072.4069.40AWG23AWG250.0018.0026.8067.9064.90Conductor Diameter(mm)0.575500.0017.3030.2066.5063.50InsulationSolid PE          Average Thickness (mm)0.2FrequencyELFEXTPSELFEXT ACRInsulation Diameter(mm)1.35(MHz)    Drain wireTinned copper min (dB)min (dB)  Construction (mm)1/0.51.00080.0077.00 78.00Al foil (Individual)Aluminium/PET foil4.00080.0077.00 76.40  10.0074.0071.00 74.30  16.0069.9066.90 72.80SheathingPVC /FRPVC20.0068.0065.00 71.90Thickness(mm)1.431.2564.1061.10 69.90Diameter(mm)8(23 AWG)62.5058.1055.10 61.00100.0054.0051.00 53.90Core Identificatin/Color CodeAccording to customer request250.0048.0045.00 41.10Bending Radius6xOverall Diameter500.0046.0043.00 36.30       Fire PerformanceElectrical PerformanceFlame propagation Test to IEC 332 Part 1(PVC)
Flame Propagation Test to IEC 60332 Part 1 and Part 3(FEPVC)Max.Conductor DC Resistance at 20 ºC(Ω/Km)<93.8Operating Temperature( ºC )70Velocity of propagation79%Impedance(ohm)100±15


Packing Details

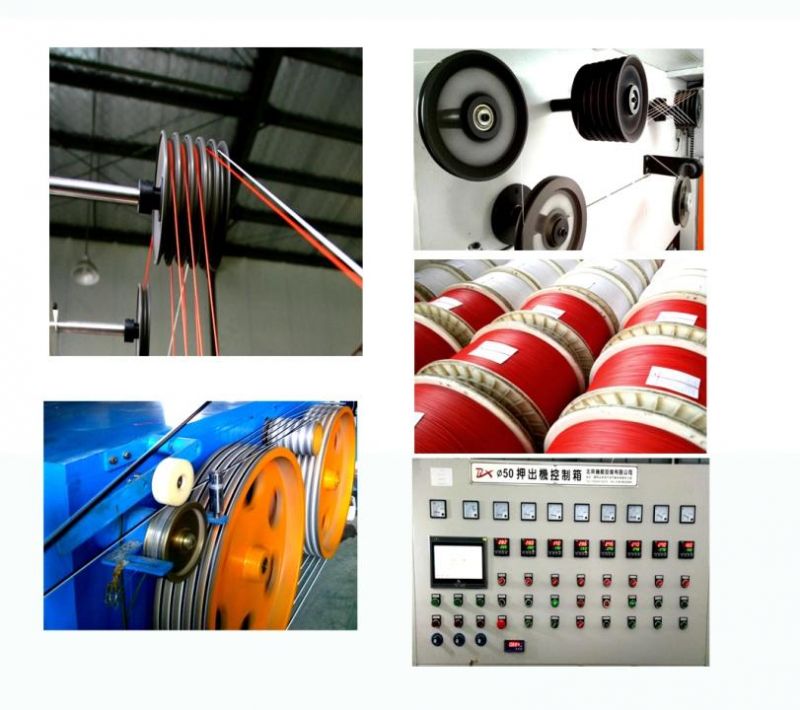

Company Information


Certificate

Test

FAQ

Q1: Are you a factory or trading company?
A1: We are a manufacturer.

Q2: Where is your factory located? How can I visit there?

A2:Our factory are located in Hangzhou city.

You can fly to Hangzhou Xiaoshan International airport. And tell us your flight No. We will arrange to pick you up.

Q3: May I buy samples from you?

A3: Yes! You are welcome to place sample order to test our superior quality and services.

 Q4: What is your Warranty?

A4: All the products will have 12 months Warranty

Q5:What payment method do you accept?

A5:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.

Q6: Can you put my brand name (logo) on these products?

 A6: Yes! The professional OEM services will be welcomed to us.  Our factory accepts to make the logo free for bulk orders.

Q7: May I know the status of my order?

A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

Q8: What's the leading time? (How long do you need to prepare my goods?

A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.

Q9: How will you deliver my goods to me?

A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.
