• Model NO.：N2XBY
• Wire Core Material：Copper or Aluminum
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Model：Yjv22
• Brand：Feiya
• Temperature Range：-5 Degree Till +70 Degree
• OEM&ODM：Yes
• Rated Voltage：0.6,1kv
• Operating Environment：Underground
• Material：PVC,PE Jacket
• Other Service：Can Be Customized
• Use Place：Power Transmission and Distribution
• Lowsmokezerohalogan：LSZH, Lsoh, Ls0h, Lsfh, Ohls
• Colors：Can Be Customized
• Transport Package：Wooden Box Packing or Pallet Shipping Containers
• Specification：copper,aluminum,pvc
• Trademark：Feiya
• Origin：China
• HS Code：8544
• Production Capacity：80000 Meter,Meters Per Month

Basic Info.

Model NO. N2XBY Wire Core Material Copper or Aluminum Certification ISO, CCC, CE, RoHS, UL, VDE Model Yjv22 Brand Feiya Temperature Range -5 Degree Till +70 Degree OEM&ODM Yes Rated Voltage 0.6/1kv Operating Environment Underground Material PVC/PE Jacket Other Service Can Be Customized Use Place Power Transmission and Distribution Lowsmokezerohalogan LSZH, Lsoh, Ls0h, Lsfh, Ohls Colors Can Be Customized Transport Package Wooden Box Packing or Pallet Shipping Containers Specification copper/aluminum/pvc Trademark Feiya Origin China HS Code 8544 Production Capacity 80000 Meter/Meters Per Month

Product Description

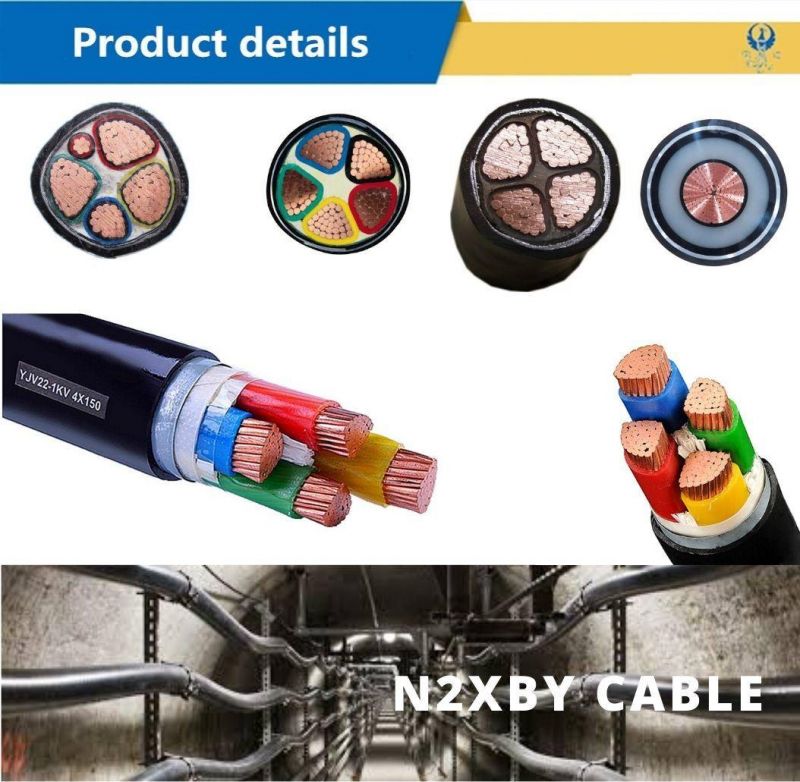

0.6/1kV Copper/Aluminum PVC/XLPE Insulation Power Cable

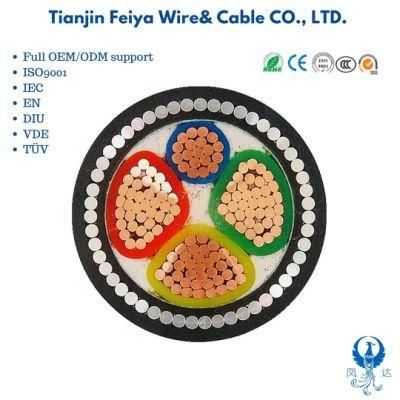

CONSTRUCTION

1. Conductor: Plain Annealed Copper, Class 2 Stranded Circular, Compacted or Sectored
2. Insulation: Cross-linked Polyethylene (XLPE)  Compound
   • Insulation Color :
     • 4 Cores: Brown,  Black, Grey,Blue or Red, Yellow, Blue, Black
   • Assembly :
     • Cores cabled together with filler and covered with Polyester (PET) Tape
3. Outer Sheath: Polyvinyl Chloride (PVC) Compound Type ST 2
   • Outer Sheath Color : Black

ELECTRICAL CHARACTERISTICS

• Operating Voltage, Uo/U :   0.6/1KV
• Operating Temperature : -15'C to 90'C
• Final Short Circuit Temperature : 250′ C
• Test Voltage : 3.5kV for 5 minutes
• Current Carrying Capacity
  1.  Clipped Direct (Ref Method C)
     • One 3 or 4-Core Cable, 3-Phase A.C : 73A
  2. In free air or on a perforated cable tray etc,  horizontal or vertical (Ref method E)
     • One 3 or 4-Core Cable, 3-Phase A.C : 78A
  3. Direct in Ground or in ducting in ground, in or around building (Ref method D)
     • One 3 or 4-Core Cable, 3-Phase A.C : 58A

REFERENCE STANDARD

• Design Specification: IEC60502-1
• Conductor: IEC60228, BS EN60228
• Flame Retardancy: IEC60332-1, BS EN60332-1



Look for customised cables? Get more information connect with Daisy







Q1: Are you a trading company or manufacturer?

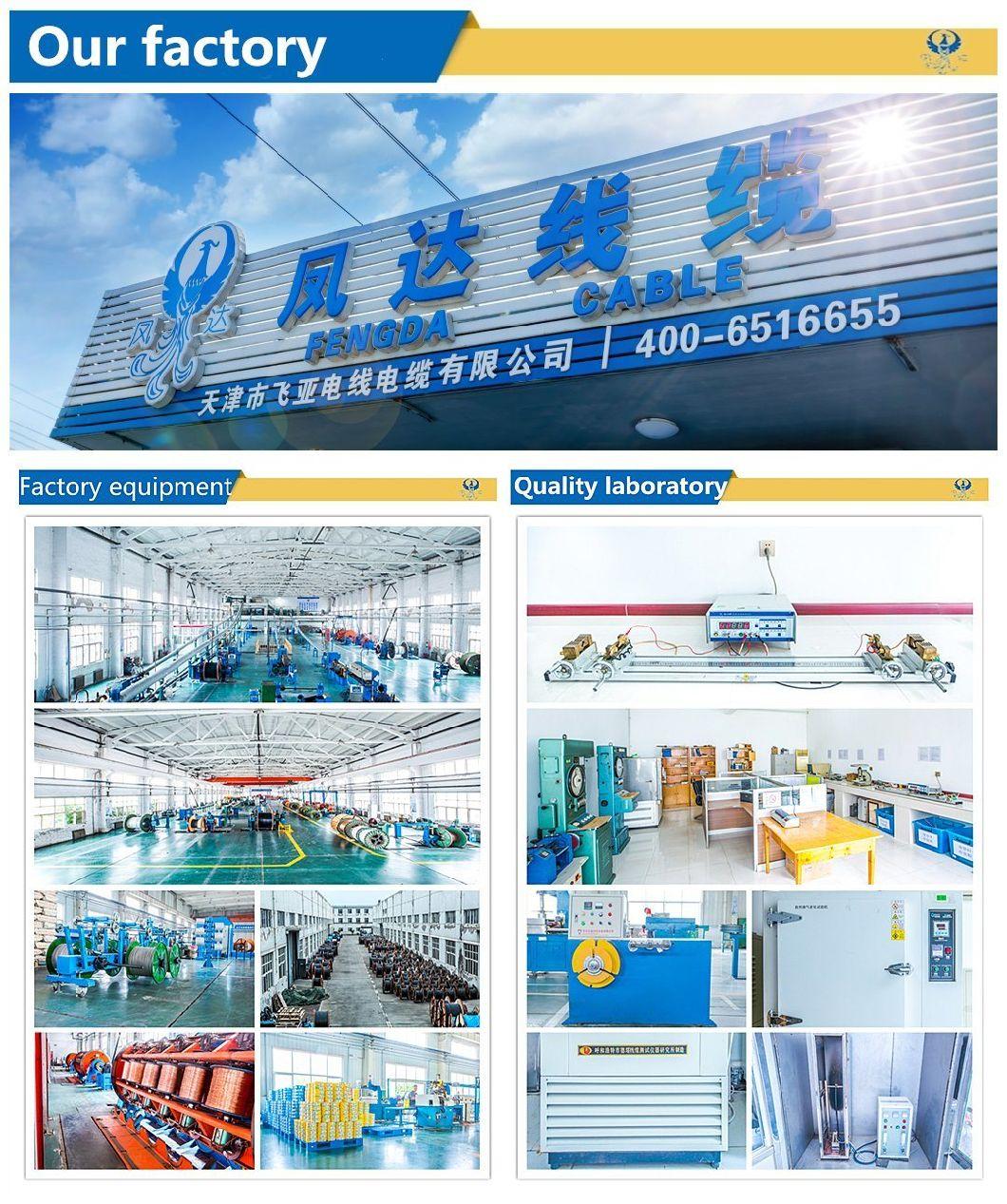

A1: Tianjin Feiya wire & Cable Co., Ltd. is a professional manufacturer.

Q2: What kinds of products does Tianjin Feiya wire & Cable Co., Ltd. Manufacture?

A2: Our products mainly cover low, medium and high voltage (KV) crosslinked polyethylene insulated power cable, PVC insulated power cable, PVC insulated wire (construction cable), control cable, signal cable, rubber cable, coal mine cable, welding cable, ship cable and other related customized cables. These cables are used in Power metallurgy, Oil&Chemical Industry, Nation Defense Power Station, Mine, Port and Architectural Engineering, andother fields.

Q3: Which standards do you comply with when you produce the electrical wires and cables?

A3: We have passed ISO9001: 2000 and ISO140001: 2004. All products conform to GB, IEC, BS, ASTM, VDE JB and UL standards. Besides, we have the ability to design and produce various wires and cables, and customize them for you according to the special requirements of customers (providing OEM services).

Q4: What is your MOQ?
A4: It`s base on the cable type or wire type. Please contact Calder. He will let you know.

Q5: How much the Courier freight will be for the samples?

A5: Courier freight depends on the quantity, weight and carton size and your area.
