56mm Minimum Bending Radius (fixed) Railway Rolling Stock Cable for Manufacturing Process
Metallurgica Bresciana (Maanshan) Special Cables Co., Ltd.- Type:Insulated

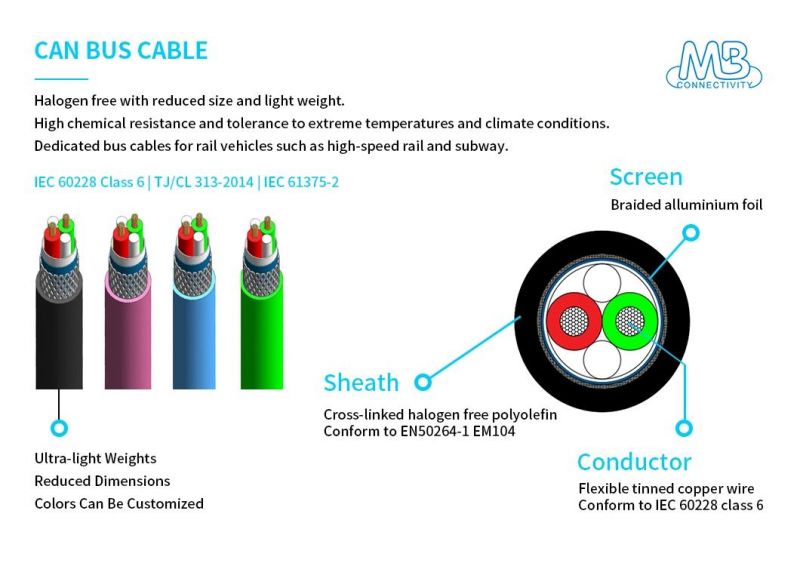

- Conductor Type:Conforms to IEC 60228 Category 6 Conductor
- Application:Overhead, Underground
- Conductor Material:Tinned Copper Wire
- Sheath Material:Crosslinking
- Insulation Material:Foamed Polyethylene
Base Info

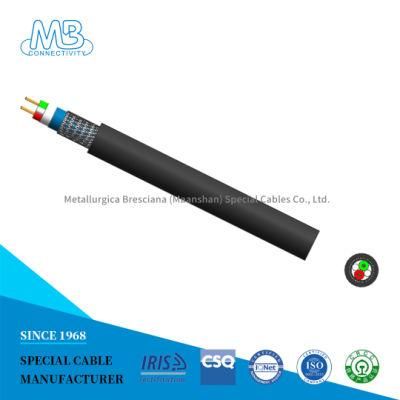

- Model NO.:CAN-BUS 2x0.50mm2
- Material Shape:Round Wire
- Range of Application:Flame Retardant
- Certification:ISO9001, Iris Certificate
- Cable Structure:Twisted
- Insulation Diameter:2.3mm
- Filling Material:PE
- Shield Material:Aluminium Foil
- Shield Coverage:Min.90%
- Casing Diameter:7.0mm
- Casing Thickness:0.6mm
- Working Temperature:-40 ~ +90ºC
- Usage:Automation,Manufacturing Process,Integrated Wiring
- Color:Black or Customized
- Guideline:Tj,Cl 313-2014, IEC 61375-2
- MOQ:100 Meters
- Transport Package:Drum,Bobbin,Coil
- Specification:76kg,km
- Trademark:METALLURGICA BRESCIANA
- Origin:Anhui, China
- Production Capacity:1000000meters,Month
Description
Mechanical Physical Properties Production Line Company Profile Our Customers The quality of cables we are making are the key factor for the safety of mass transportation. We are dedicated to the satisfaction and success of every customer. Q1: Are you the real factory?Working temperature range -40 ~ +90ºC Operating voltage 250V Weight 76kg/km Minimum bending radius (fixed) 56mm Sheath tensile strenght ≥10MPa Sheath elongation ≥125% Sheath aging conditions 120x240ºCxh Change rate of sheath tensile strength ≤30% Sheath elongation resistance rate of change ≤30% Sheath thermal extension test conditions 200x15ºCxmin Thermal extension test mechanical stress 20N/cm2 Elongation rate under load in hot extension test ≤100% Hot elongation test elongation rate when unloading ≤25% High frequency electrical performance Characteristic impedance (Z0) 120±12Ω (0.75~3MHz) FeaturesAttenuation (ATT) 1.5dB/100m Max. (1.5MHz), 2(3MHz)
A:Yes, we are one of the production plant of our international company.
Q2: What is your main products?
A:Cables for different industries and uses. We offer customized solutions.
Q3: What is your delivery time?
A: Withing 15 days for about 30km of standard product. Time is variable for special solutions.
Q4: MOQ: what is your minimum quantity?
A: 300 meters.
Q5: Package & Shipping & Delivery
A: For large orders: customized.
