ABC (Aerial Bundle) Cable NFC 33-209 Standard XLPE 3x70mm2+54.6mm2

Aerial Bundled Conductor (ABC) Cables

Specific Parameters
Low Voltage Aerial Bundled Cable/ Low Voltage ABC Cable

The basic construction is as follows:
3 power cores consisting of standard aluminium conductors, insulated withXLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)

The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.

To be used at cotages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75oC for polyethylene insulated conductors or 90oC for crossliked polyethylene(XLPE) insulated conductors.


Application: the aerial bundled cables designed for fixed installation as overhead power lines up to 1000 V incl,To supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 90ºC

Construction

Phase Conductor	Aluminium conductor, round stranded compressed (RM).
Neutral Conductor	Alloy aluminium conductor (AlMgSi), round stranded compressed (RM).
Insulation	XLPE. Load-bearing / neutral core - marked with standard and producers phase core - marked with digits 1, 2, 3.
Assembly	Cores and the neutral, conductor stranded together in right-hand lay, additionally 1, 2 or 3 cores of reduced cross section can be co-stranded.

Technical Data

Rated voltage	kV	0.6/1
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	20 × O of cable

NFC 33-209 Standard ABC Cable Dimensions



ABC Cable NFC 33-209 Standard
Number of Cores x Nominal Cross Section	Overal Diameter	Weight	Maximum Conductor Resistance	Minimum Breaking Load	Current Rating
No.x mm^2	mm	Kg/Km	Ω/Km	KN	A
2x10 RM	12.8	93	3.08	1.5	38
4x10 RM	15.4	183	3.08	1.5	38
2x16 RM	14.8	129	1.91	2.3	72
2x16 RN + 2x1.5 RE	14.8	176	1.910 / 12.100	2.3	72
4x16 RM	17.8	257	1.91	2.3	72
4x16 RN + 2x1.5 RE	17.8	304	1.910 / 12.100	2.3	72
2x25 RM	18	202	1.2	3.8	107
2x25 RM + 2x1.5 RE	18	249	1.200 / 12.100	3.8	107
4x25 RM	21.7	404	1.2	3.8	107
4x25 RM + 2x1.5 RE	21.7	451	1.200 / 12.100	3.8	107
2x35 RM	20.8	269	0.868	5.2	132
2x35 RM + 2x1.5 RE	20.8	316	0.868 / 12.100	5.2	132
4x35 RM	25.1	539	0.868	5.2	132
4x35 RM + 2x1.5 RE	25.1	586	0.868 / 12.100	5.2	132
2x50 RM	23.4	352	0.641	7.6	165
2x50 RM + 2x1.5 RE	23.4	399	0.641 / 12.100	7.6	165
1x54.6 RM + 3x25 RM	21.7	507	0.630 / 1.200	3.8	107
1x54.6 RM + 3x25 RM + 1x16 RM	24.3	573	0.630 / 1.200 / 1.910	3.8/2.3	107/72
1x54.6 RM + 3x25 RM + 2x16 RM	29.7	639	0.630 / 1.200 / 1.910	3.8/2.3	107/72
1x54.6 RM + 3x25 RM + 3x16 RM	31.1	705	0.630 / 1.200 / 1.910	3.8/2.3	107/72
1x54.6 RM + 3x35 RM	25.1	615	0.630 / 0.868	5.2	132
1x54.6 RM + 3x35 RM + 1x16 RM	28.1	680	0.630 / 0.868 / 1.910	5.2/2.3	132/72
1x54.6 RM + 3x35 RM + 2x16 RM	34.3	748	0.630 / 0.868 / 1.910	5.2/2.3	132/72
1x54.6 RM + 3x35 RM + 3x16 RM	35.9	814	0.630 / 0.868 / 1.910	5.2/2.3	132/72
1x54.6 RM + 3x35 RM + 1x25 RM	28.1	714	0.630 / 0.868 / 1.200	5.2/3.8	132/107
1x54.6 RM + 3x50 RM	28.2	741	0.630 / 0.641	7.6	165
1x54.6 RM + 3x50 RM + 1x16 RM	31.6	806	0.630 / 0.641 / 1.910	7.6/2.3	165/72
1x54.6 RM + 3x50 RM + 2x16 RM	38.6	875	0.630 / 0.641 / 1.910	7.6/2.3	165/72
1x54.6 RM + 3x50 RM + 3x16 RM	40.4	940	0.630 / 0.641 / 1.910	7.6/2.3	165/72
1x54.6 RM + 3x50 RM + 1x25 RM	31.6	841	0.630 / 0.641 / 1.200	7.6/3.8	165/107
1x54.6 RM + 3x70 RM	33	950	0.630 / 0.443	10.2	205
1x54.6 RM + 3x70 RM + 1x16 RM	37	1014	0.630 / 0.443 / 1.910	10.2/2.3	205/72
1x54.6 RM + 3x70 RM + 2x16 RM	45.2	1083	0.630 / 0.443 / 1.910	10.2/2.3	205/72
1x54.6 RM + 3x70 RM + 3x16 RM	47.3	1148	0.630 / 0.443 / 1.910	10.2/2.3	205/72
1x54.6 RM + 3x70 RM + 1x25 RM	37	1048	0.630 / 0.443 / 1.200	10.2/3.8	205/107
1x54.6 RM + 3x70 RM + 2x25 RM	45.2	1150	0.630 / 0.443 / 1.200	10.2/3.8	205/107
1x54.6 RM + 3x70 RM + 3x25 RM	47.3	1250	0.630 / 0.443 / 1.200	10.2/3.8	205/107
1x54.6 RM + 3x95 RM	37.4	1176	0.630 / 0.320	13.5	240
1x54.6 RM + 3x95 RM + 1x16 RM	41.9	1243	0.630 / 0.320 / 1.910	13.5/2.3	240/72

Please check the specification, Our competitive price will send you in 12 hours.  we can customize other cross-sections on request.


^{Packaging&Delivery}

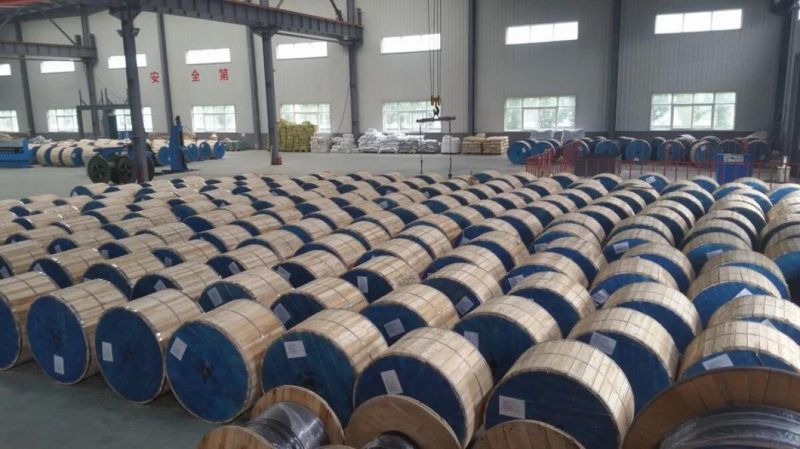

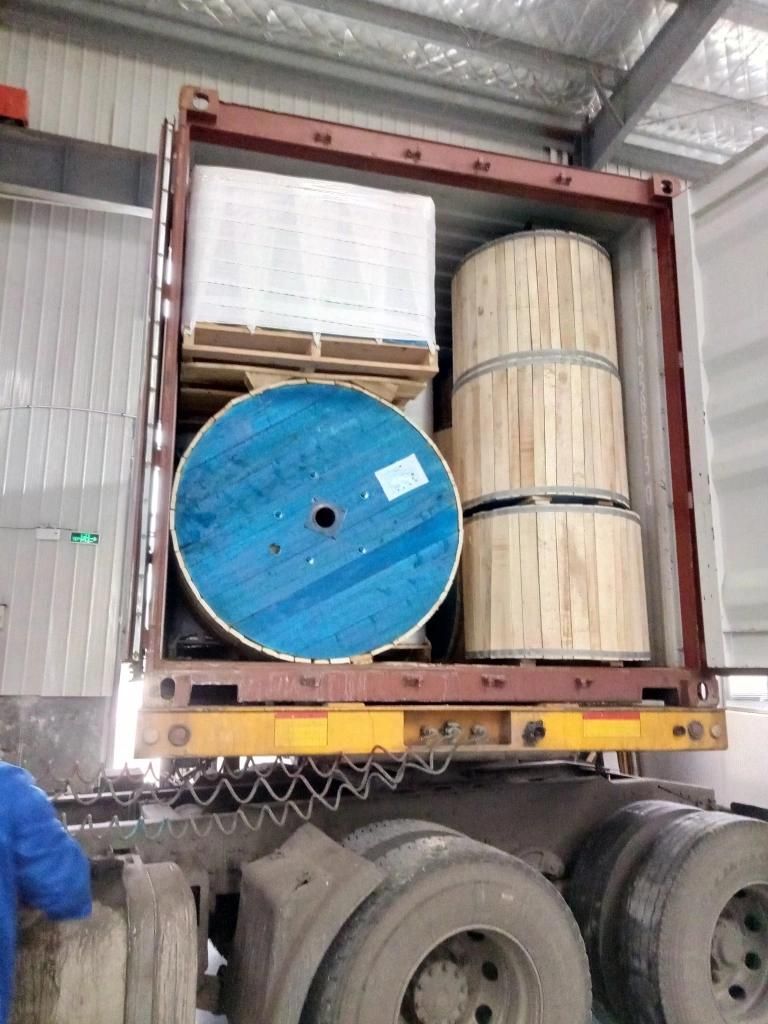

Packaging Details:Wooden drums,steel wooden drums or as your requirement
Delivery Time:Normally within 10 days (detailly depend on the order quantity)

 ^{Contact us}

Looking forward to cooperation with you.If you have any question or need our certification and sample.Pls contact me freely.You can talk with me by Email or chat software.
