• Model NO.：OPGW
• Certification：RoHS, UL, CE, ISO9001, CCC, SGS
• Brand：Optelec
• Sheath Material：Aluminium Alloy Wire
• Product Name：Opgw Cable
• Model：Optical Fiber Composite Overhead Ground Wire
• Transport Package：Wooden Drum
• Specification：IEEE-1138, ITU-G652D, ISO9001
• Trademark：OPTELEC
• Origin：China
• HS Code：85447000
• Production Capacity：100km,Month

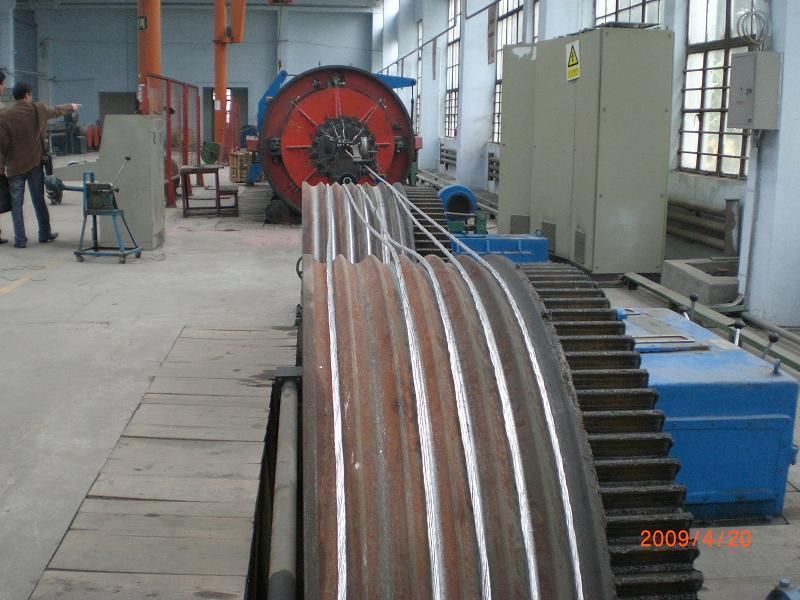

Central Optical Fiber SUS Tube Structure (Parts)Structure DrawingStructure:central optical fiber SUS tube structure with single stranded layer Order Type ModelOPGW-36B1-48 [59;11]OPGW-40B1-58 [71;16]Max. fiber count3640Tube sizeφ3.2 mmφ3.5mmCable diameterφ9.6 mmφ10.5 mmCross-section carry area48 mm258 mm2Cable weight338 kg/km400 kg/kmRated Tensile Strength(RTS)59 kN71 kNDC resistance at 20degC1.782 Ω/km1.490 Ω/kmShort current capacity (40~200degC)11 kA2@s16 kA2@sLinear expansion coefficient13.0×10-6/degC13.0×10-6/degCYoung's modulus162.0 kN/mm2162.0 kN/mm2 Structure:central optical fiber SUS tube structure with double stranded layers Order Type ModelOPGW-30B1-127 [77;137]OPGW-40B1-163 [99;226]Max. fiber count3040Tube sizeφ3.0 mmφ3.4 mmCable diameterφ15.0 mmφ17.0 mmCross-section carry area127 mm2163 mm2Cable weight529 kg/km673 kg/kmRated Tensile Strength(RTS)77 kN99 kNDC resistance at 20degC0.329 Ω/km0.255 Ω/kmShort current capacity (40~200degC)137 kA2@s226 kA2@sLinear expansion coefficient17.5×10-6/degC17.5×10-6/degCYoung's modulus97.3 kN/mm297.3 kN/mm2Production Line

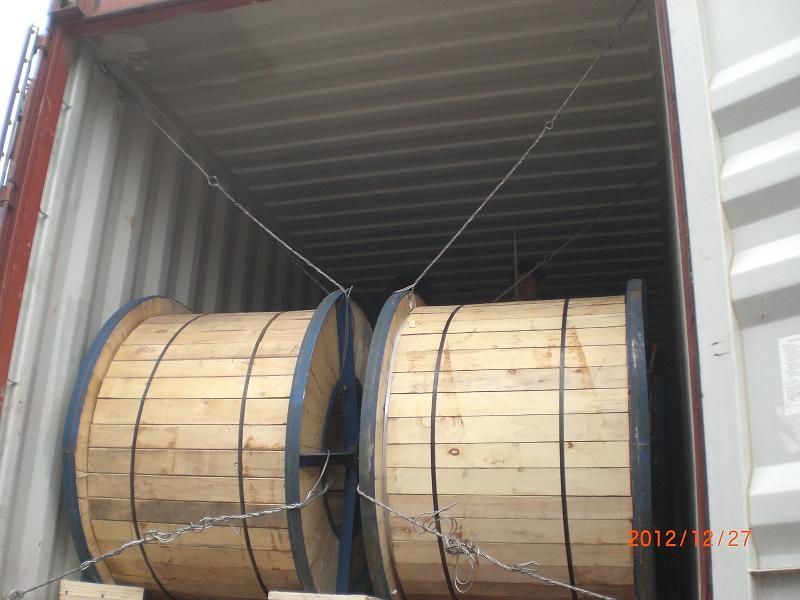

 Packing&Shipping

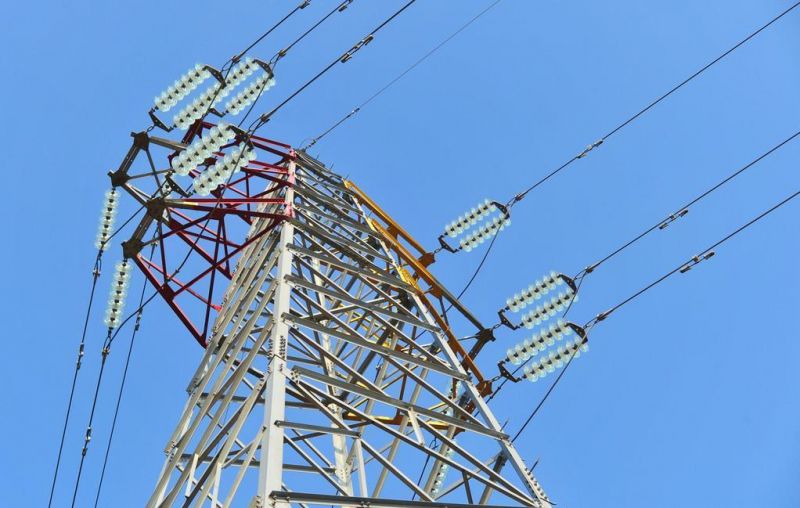

 Installation Guide
