• Model NO.：CPR-Dca
• Material Shape：Granules
• Range of Application：LSOH
• Certification：ISO9001, CE, RoHS
• Brand：Jsxd
• Original Tensile Strength：12 MPa
• Original Breakage Elongation：158 %
• pH：5.2
• Oxygen Index：43 %
• Conductivity：0.6 Us,mm
• Transport Package：Aluminum Foil Bag Inside and Kraft Bag Outside
• Specification：25 kg
• Trademark：JSXD
• Origin：China
• HS Code：3901909000
• Production Capacity：8000 Ton Per Month

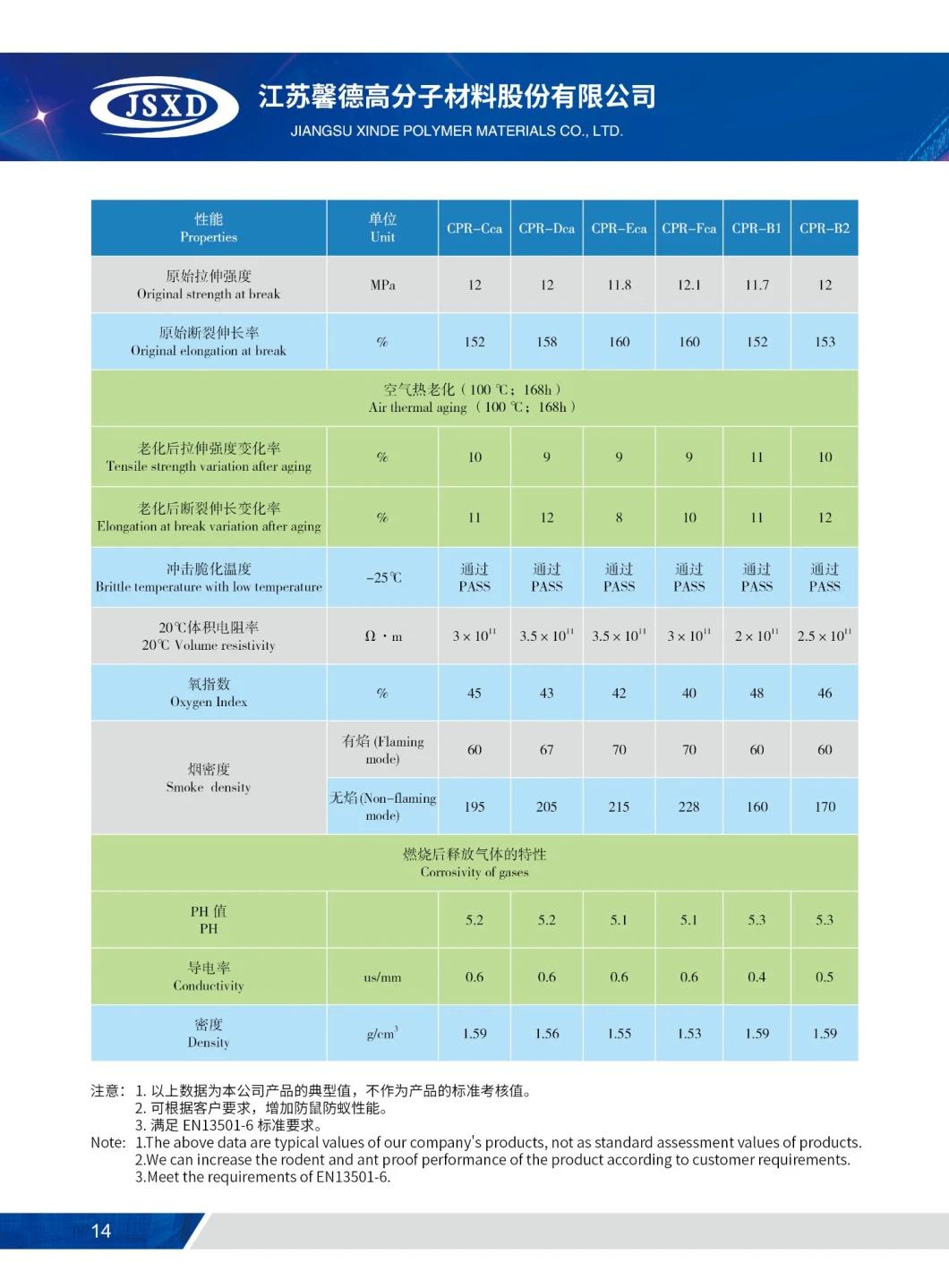

Basic Info.

Model NO. CPR-Dca Material Shape Granules Range of Application LSOH Certification ISO9001, CE, RoHS Brand Jsxd Original Tensile Strength 12 MPa Original Breakage Elongation 158 % pH 5.2 Oxygen Index 43 % Conductivity 0.6 Us/mm Transport Package Aluminum Foil Bag Inside and Kraft Bag Outside Specification 25 kg Trademark JSXD Origin China HS Code 3901909000 Production Capacity 8000 Ton Per Month

Product Description

CPR Standard Low Smoke Halogen Free Flame Retardant Material For Fiber Cable Jacket CPR-Dca


MATTERS NEEDING ATTENTION
Description:
This series of products meet the EN13501-6 standard for fiber optic cable. The material has low smoke emission ,excellent flame retardant performance,halogen-free gas release.Optical fiber cables made with this product comply with CPR regulations.

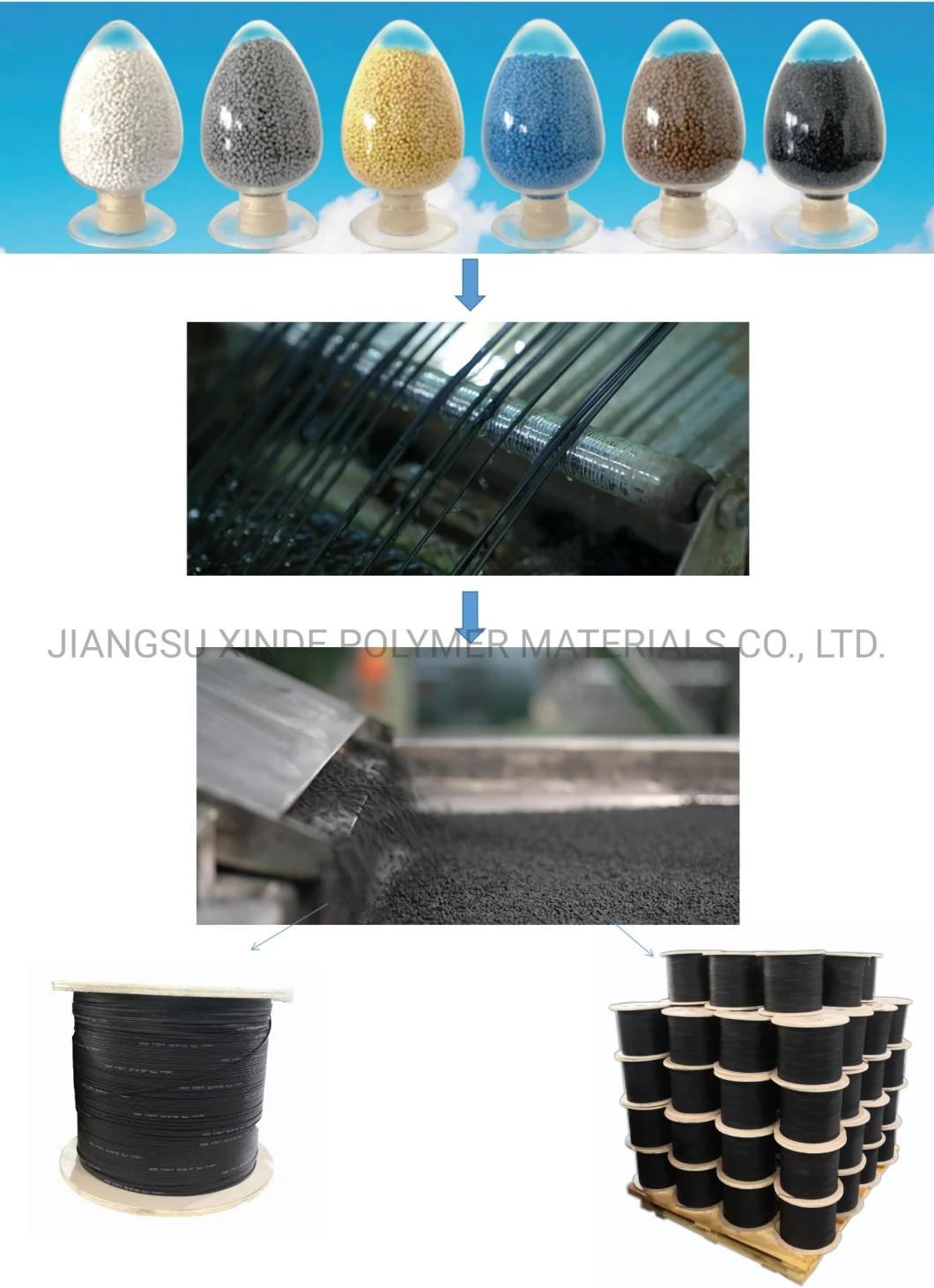

Processing:
This series of products, it is recommended to dry for about 2 hours before processing, drying temperature: 70ºC, drying temperature can rise to 80ºC in the starting state. It is recommended that the aspect ratio is about 25, and the screw with good plasticization is processed. The processing temperature is suggested to be :135ºC-140ºC-145ºC-150ºC -155ºC(reference temperature)

Packing:
Net weight 25kg: Inner aluminum foil/polyethylene composite film bag, outer kraft paper composite bag.

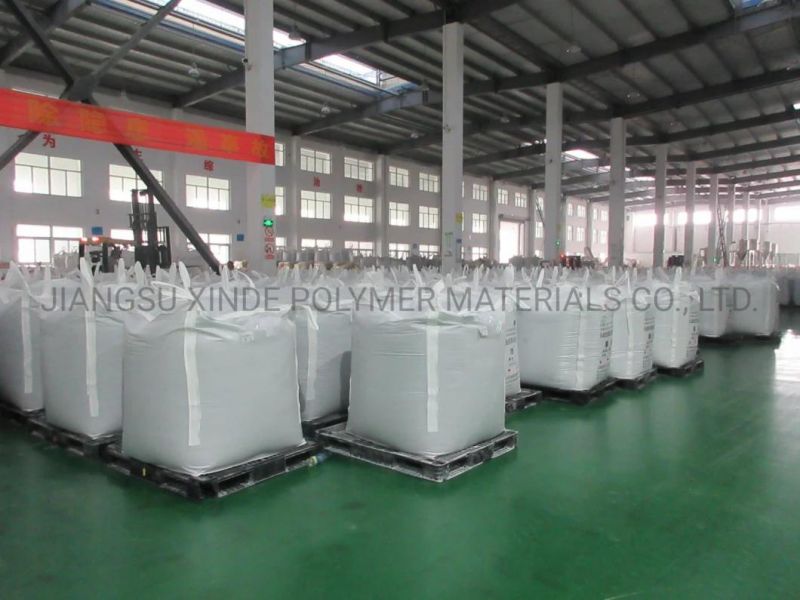

Net weight 1000kg: Inner aluminum foil/polyethylene composite film bag, outer polypropylene woven composite bag.

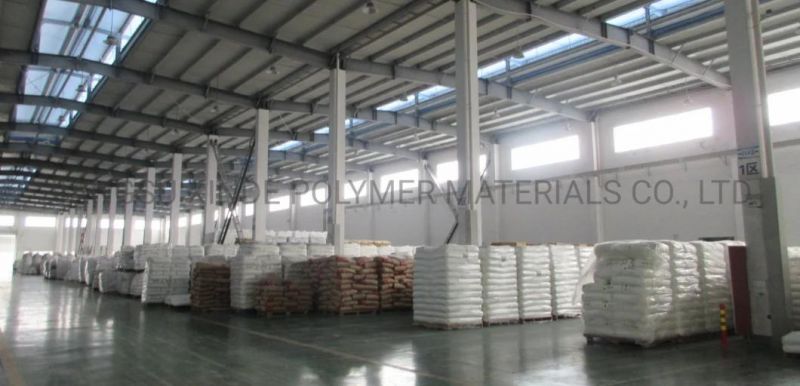

Storage:
The product should be stored in a clean, dry and ventilated warehouse, and should not be damaged by sun, rain, water and other abnormal conditions.  Storage temperature should not be lower than 0ºC. The storage period of the product shall not exceed 6 months from the date of production.
