• Material Shape：Round Wire
• Range of Application：TV,AV
• Certification：ISO9001, UL, CCC, RoHS
• Brand：Hwatek
• Color：Optional
• Qty/Roll：305m, 610m or as Request
• Transport Package：Rolled in Reels, Packed in Pallets.
• Trademark：Hwatek
• Origin：China
• HS Code：8544492100

Basic Info.

Material Shape Round Wire Range of Application TV/AV Certification ISO9001, UL, CCC, RoHS Brand Hwatek Color Optional Qty/Roll 305m, 610m or as Request Transport Package Rolled in Reels, Packed in Pallets. Trademark Hwatek Origin China HS Code 8544492100

Product Description

Products are used in Notebook computer, digital camera, video camera, LCD TV, sophisticated medical equipment and aviation, intelligent robot.

Product number	Conductor	Insulation	Shield	Braid Shield	Jacket	Nom. Impedence Ω
	NO./mm	Nom.  Dia. mm	Material	No./No./mm	Nom. Dia. mm
HT-1.5C-2VS	7/0.12	1.60	-	16/5/0.10	3.0	75±5
HT-2.5C-2V	1/0.4	2.40	AL-Mylar	16/5/0.12	4.0	75±5
HT-3C-2V	1/0.50	3.00	AL-Mylar	16/7/0.12	5.0	75±5
HT-3C-2VS	7/0.18	3.10	AL-Mylar	16/7/0.12	5.0	75±5
HT-1.5D-2V	7/0.18	1.60	-	16/5/0.10	3.0	50±5
HT-2.5D-2V	1/0.80	2.70	-	16/7/0.12	4.30	50±5
HT-3D-2V	7/0.32	3.00	-	16/7/0.12	5.30	50±5

Application: communication and signal control systems
Application standard: JISC3501
Product character:
Good flexibility, light weight and reliable joint, strong shielding property
Flame rate: CMX, CM, CMG, CMR
Standard thickness ,easily strip and cut

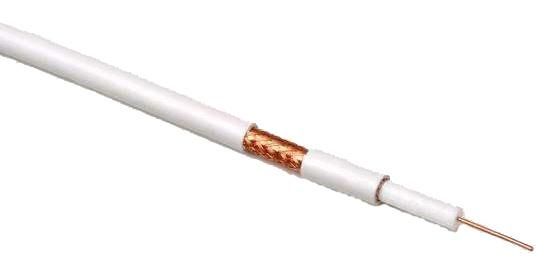

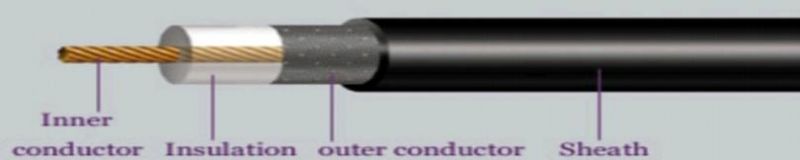

Constructure:
Stranded or single bare copper conductor
PE insulation
Vertical wrapped AL-mylar shielding,  tinned or bare copper braiding
PVC jacket
Technical parameter:
Rated temperature :70ºC
Rated Voltage:30V

Company Profiles

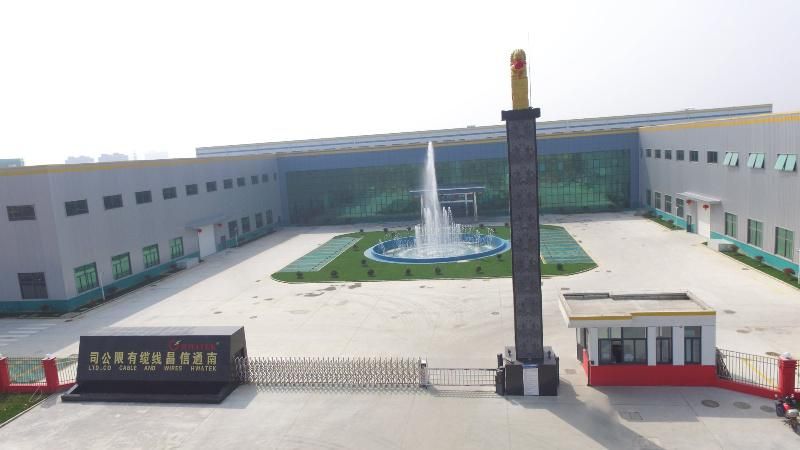

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates

Production Progress
Shipping
FAQ
1.Q:What can you supply?
   A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
   A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
   A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
   A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
   A: Always a pre-production sample before mass production and final Inspection before shipment.
Major Customers
