• Model NO.：UTP CAT5E
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, CCC
• Model：UTP Cat5e
• Brand：Cx-Cable
• Size of Conductor：24AWG,26AWG
• Numbers of Conductor：8
• Insulation：HDPE
• Jacket：PVC,PE
• Color：Customers′request
• Outer Carton Size：41*41*48cm
• Test：Fluke Link
• Transport Package：305m,Easy Pull Box, 2boxes,Carton
• Specification：CE,SGS,ROHS,ISO
• Trademark：OEM or CX-Cable
• Origin：Zhejiang China
• HS Code：8544491100
• Production Capacity：20000boxes,Per Month

TypeUTP CAT5e  4*2*0.50Conductor0.50±0.01mm Bare copperInsulation0.90mm HDPETotal number of insulated conductor8, twisted in 4 pairsColor codewhite-blue/blue,white-orange/orange,
white-green/green,white-brown/brownIndividual pair shieldnoneOverall shieldnoneDrain wirenoneSheath5.1mm PVCOptions: Jelly Compound, Jacket: UV,  RoHS complied.

Application:
1 Meets or exceeds requirements of ANSI/TIA-568-C.2
   Category 5e and ISO 11801 2nd Edition Class D channel standards
2 Third party tested to Category 5e channel compliance.
3 Used in station and all networking requirement(ISDN),ATM155Mbps,100Mbps TPDDI.
4 Certification: ISO9001; CE; ROHS; CPR
5 Standard: UL758,UL1581,UL444,TIA/EIA-568,CSA C22.2,ISO/IEC 11801,YD/T1019-2013

Electrical Performance:Frequency
(MHz)Return loss
(dB)Attenuation
(dB/100m)NEXT
(dB)FEXT
(dB)120.002.106463.8423.014.305551.71025.006.604943.81625.008.204639.72025.009.204437.731.2523.6411.804233.86221.5417.103727.610020.1122.003423.6

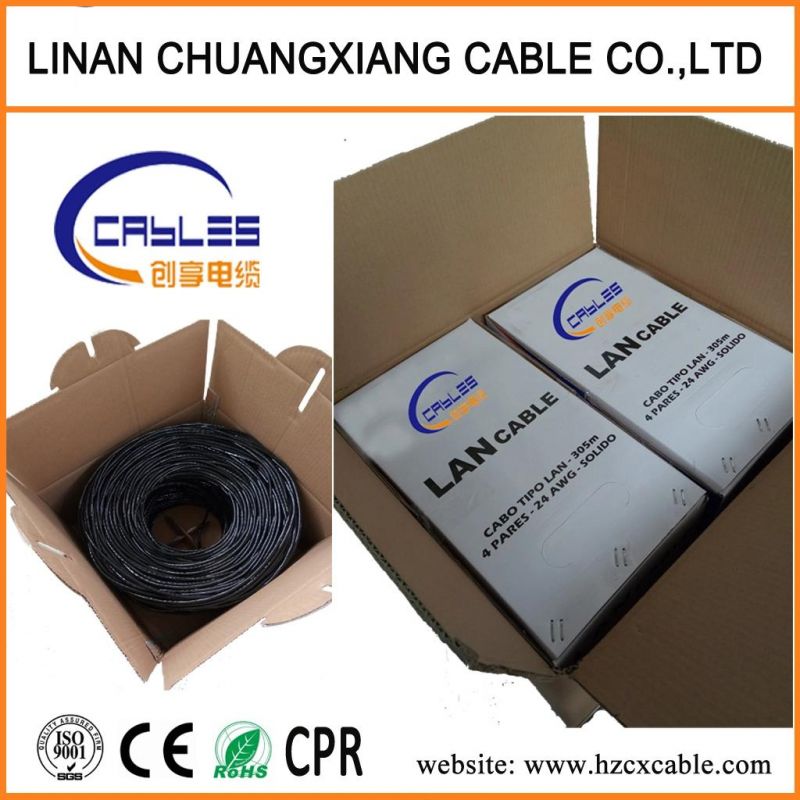

Cable Packing Details:

300m/pull box/Outer Carton
100M/pull box
500m/wooden reel/box

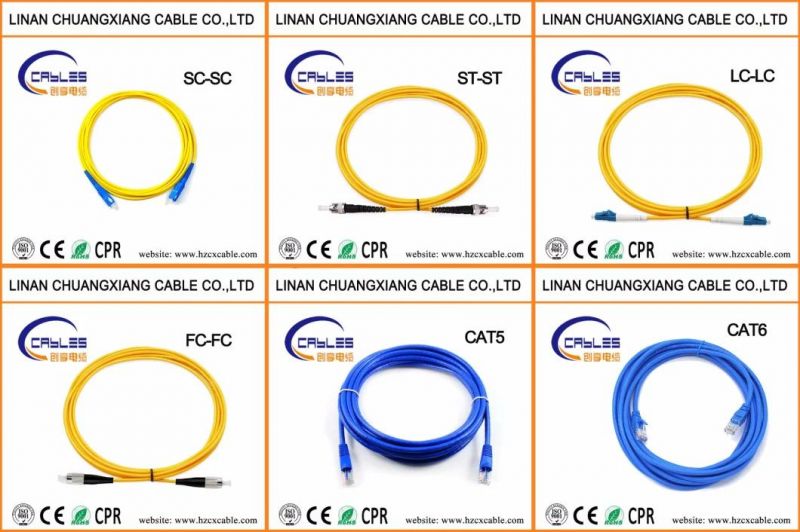

More Product:



FAQ

1. Q: What kind of cable do you produce?
A: We specialize in producing coaxial cables, Lan cables & telephone cables.

2. Q: What's your MOQ?
A: Our MOQ is 20km per item. Free samples can be sent for your quality evaluation.

3. Q: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit. Its base on the quantity of the order.

4. Q: What are your payment terms?
A: We accept T/T, L/C. Other payments accept through negotiation.

5. Q: What is your manner of packing?
A: Inner packing: wooden reel, plastic reel, paper reel, shrink wrap;
Outer Packing: carton, pull-out-box, plastic pallet, wooden pallet;
We can provide customized packing as per your taste or brand requirements.

6. Q: Can your factory customize cables based on customer's samples?
A: Yes, we can. OEM and ODM are both welcome.

7. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Hangzhou, Zhejiang Province, China, 3 hours drive way fromShanghai and Ningbo,
1.5 hour's drive way from Hangzhou international airport. All clients, from home or abroad, are warmly welcome
to visit us.
