Boc Multi-Purpose Break-out Cable Use Simplex Cable 900um Tight Buffer Fiber Optical Cable

Ningbo Haishu Efon Communication Equipment Limited
  • Application：Communication
  • Type：Single-mode Fiber
  • Connection Structure：Other
  • Material Shape：Round Wire
  • Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
  • Allowed Tensile Strength：1000N<10000N

Base Info

  • Model NO.：GJFJBV-X
  • Core：2-24
  • Certification：RoHS, UL, CE, ISO9001, VDE, CCC
  • Brand：Efon
  • Sheath Material：LSZH,PE Sheath,Flame Retardant Sheath,Anti-Rodent
  • Fiber Type：G.652D or G.657A1 A2
  • Fiber Count：1-48
  • Strength Member：FRP
  • Material of Jacket：UV and Flame Resistant LSZH
  • Jacket Color：White or Black
  • Tensile Strength：1000n
  • Crush Resistance：300n
  • Applications：Indoor Outdoor Access Cabling
  • Certifications：Ce SGS
  • Warranty：2 Years

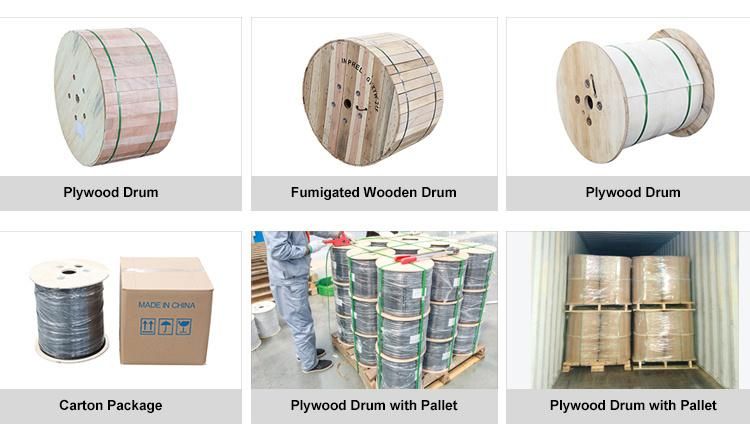

  • Transport Package：Wooden Drum Iron-Wooden Drum with Fumigated or Not
  • Specification：CE
  • Trademark：OEM
  • Origin：China
  • HS Code：85447000
  • Production Capacity：300km,Week

Description

Fiber Type             Attenuation Overfilled launch BandwidthEffective Modal Bandwidth10GB/S Ethernet link length Min Bending Radius  Conditions 1310/1550nm 850/1300nm    850/1300nm      850nm     850nm  Unit     dB/km    dB/km    MHZ.km     MHZ.km          m        mm G652D  0.36/0.22            16 G657A1  0.36/0.22            10 G657A2  0.36/0.22            7.5 50/125    3.0/1.0     ≥500/500          30 62.2/125    3.0/1.0     ≥200/500          30 OM3    3.0/1.0     ≥1500/500      ≥2000      ≥300        30 OM4    3.0/1.0     ≥3500/500      ≥4700      ≥550        30 B1-OM3    3.0/1.0    ≥1500/500      ≥2000      ≥300        7.5 B1-OM4    3.0/1.0     ≥3500/500      ≥4700       ≥550        7.5



Structure and Technical Specification

Cable Code

   Cable Diameter

            (mm)

    Cable Weight

        (kg/km)


   Tensile Strength

       (N/100mm)

   Crush Resistance

       (N/100mm)

PVC jacketLSZH jacketShort TermLong TermShort TermLong Term   4         7.4±0.5      50      56       440      130    1000    300  6         8.4±0.5      66      74       660      200    1000    300  8         9.8±0.5      91     101       660      200    1000    300 12        12.4±0.5     140     155       660      200    1000    300 18        12.4±0.5     140     155      1320      400    1000    300 24        14.4±0.5     181     201      1320      400    1000

    300

3616.4±0.5    208     255      1320      400    1000

    300

4819±0.5    280     344      1320      400    1000    300

 Note :THis datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for

          more information.

Mechanical Performance

Max Tension Performance

IEC 60794-1-2-E

Max. Operation Tension

IEC 60794-1-2-E1

Crush Test

IEC 6079 -1-2-E3

Impact Test

IEC 60794-1-2-E4

Repeated Bending

IEC 60794-1-2-E6

Torsion Test

IEC 60794-1-2-E7

Cable bend

IEC 60794-1-2-E11A

Attenuation Coefficient

ITU-T G.652

Structural Test

IEC-60793-1-20

Environmental Performance

Temperature Cycling

IEC 60794-1-2-F1

Water Penetration

IEC 60794-1-2-F5B

Filing Compound Flow

IEC 60794-1-E14
