• Model NO.：FHLR2GCB2G
• HS Code：8544492110
• Production Capacity：500km,Month

Basic Info.

Model NO. FHLR2GCB2G HS Code 8544492110 Production Capacity 500km/Month

Product Description

Conductor: annealed bare copper class 5 IEC60228
Insulator: silicone rubber
Shielding Layer: Tinned copper with Al foil tape wrapped
Jacket: Silicone rubber
Covering: PET braiding with silicone resin coating

Rated temp: 150/180ºC
Rated volt: AC600V/ DC900V
Test Voltage: 5000V. 5Min
Flame test: FT 2

Mechanical properties:

Tensile strength: ≥8N/mm²

Elongation at break of insulation: ≥250%

Min.Bending radius: 6×OD
Standard: LV112, LV216, ISO6722
Characteristics:
Silicone rubber wire & cable have very good flexibility and good performance of resistance to high temperature, range from -55ºC up to 180ºC.
The use of silicone rubber, a high grade corona resistant insulation material, gives the cable excellent dielectric strength.

The braided synthetic yarn covering, which is applied directly over the insulation, gives the cable, because of its short braiding pitch and high compactness, an excellent mechnical protection by maintaining good flexibility.

The varnishing of the braiding results in good antifriction properties, high abrasion resistance and excellent chemical resistance against transformer oil, light fuel oil and most types of cleaning agents.
In the event of fire, no corrosive and toxic gases will be given off.
Hence, damage caused by fire can be kept to minimum.

Application:

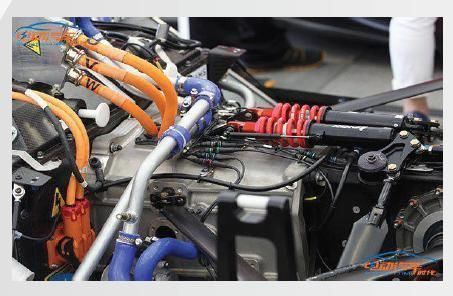

It's mainly used for connection cable between battery to engine motor within electric vehicle, hybird auto,etc.
