• Model NO.：YJV,YJV22,YJV32
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CE, SABS
• Brand：Henan Jiapu
• Voltage Rating：3.6,6, 6,10kv
• No.of Cores：3cores
• Applicable Standard：IEC60502 IEC60331 DIN BS
• Max Working Temp：90 Degrees
• Capacity：2000km,Month
• Delivery Length：Accord with The Request
• Min.Order Qty：1km
• Transport Package：Wooden Drum or Wooden&Steel Drum
• Specification：IEC, ASTM, DIN, BS, GB, Any standard
• Trademark：Jiapu
• Origin：Henan China
• HS Code：8544601200
• Production Capacity：2000km,Month

 No.X Nominal Cross Section of Conductor
Nominal Diameter of Conductor
Nominal Thickness of Insulation
Nominal Thickness of Copper Tape Screen
Nominal Thickness of Inner Sheath
Nominal Thickness of Steel Tape Armouring
Nominal Thickness of PVC Sheath
Approx. Overall Diameter
Approx. Weight
Al Conductor
Cu Conductor
No. X mm2
mm
mm
mm
mm
mm
mm
mm
kg/m
kg/m
3 X 25
6.0
2.5
0.1
1.2
0.2
1.9
37.9
1.87
2.32
3 X 35
6.9
2.5
0.1
1.3
0.5
2.0
41.5
2.10
2.73
3 X50
8.2
2.5
0.1
1.3
0.5
2.0
44.3
2.37
3.22
3 X 70
9.7
2.5
0.1
1.4
0.5
2.1
47.9
2.77
4.00
3 X 95
11.3
2.5
0.1
1.4
0.5
2.2
51.6
3.21
4.91
3 X 120
12.8
2.5
0.1
1.5
0.5
2.4
55.4
3.69
5.84
3 X 150
14.2
2.5
0.1
1.5
0.5
2.5
58.6
4.15
6.85
3 X 185
15.9
2.5
0.1
1.5
0.5
2.6
62.5
4.73
8.11
3 X 240
18.3
2.6
0.1
1.6
0.5
2.7
68.5
5.62
10.05
3 X 300
20.4
2.8
0.1
1.7
0.5
2.9
74.5
6.55
12.11
3 X 400
23.2
3.0
0.1
1.9
0.8
3.2
83.6
8.78
15.86
3 X 500
26.4
3.2
0.1
2.1
0.8
3.4
93.0
10.52
18.85

2)6/10(12)kV,6.35/11(12)kV,,Three Cores,Al or Cu/XLPE/CTS/STA/PVC Armoured Power Cable
No.X Nominal Cross Section of Conductor
Nominal Diameter of Conductor
Nominal Thickness of Insulation
Nominal Thickness of Copper Tape Screen
Nominal Thickness of Inner Sheath
Nominal Thickness of Steel Tape Armouring
Nominal Thickness of PVC Sheath
Approx. Overall Diameter
Approx. Weight
Al Conductor
Cu Conductor
No. X mm2
mm
mm
mm
mm
mm
mm
mm
kg/m
kg/m
3 X 25
6.0
3.4
0.1
1.3
0.5
2.0
43.4
2.16
2.61
3 X 35
6.9
3.4
0.1
1.3
0.5
2.0
45.4
2.36
2.99
3 X50
8.2
3.4
0.1
1.4
0.5
2.2
48.8
2.69
3.54
3 X 70
9.7
3.4
0.1
1.5
0.5
2.3
52.4
3.10
4.33
3 X 95
11.3
3.4
0.1
1.5
0.5
2.4
56.1
3.56
5.26
3 X 120
12.8
3.4
0.1
1.5
0.5
2.5
59.5
4.04
6.19
3 X 150
14.2
3.4
0.1
1.5
0.5
2.6
62.7
4.49
7.19
3 X 185
15.9
3.4
0.1
1.6
0.5
2.6
66.6
5.12
8.49
3 X 240
18.3
3.4
0.1
1.7
0.5
2.8
72.4
5.99
10.42
3 X 300
20.4
3.4
0.1
1.8
0.5
3.0
77.5
6.86
12.42
3 X 400
23.2
3.4
0.1
1.9
0.8
3.2
85.4
8.97
16.05
3 X 500
26.4
3.4
0.1
2.0
0.8
3.4
93.7
10.65
19.50

3)8.7/10(15)kV,Three Cores,Al or Cu/XLPE/CTS/STA/PVC Armoured Power Cable
No.X Nominal Cross Section of Conductor
Nominal Diameter of Conductor
Nominal Thickness of Insulation
Nominal Thickness of Copper Tape Screen
Nominal Thickness of Inner Sheath
Nominal Thickness of Steel Tape Armouring
Nominal Thickness of PVC Sheath
Approx. Overall Diameter
Approx. Weight
Al Conductor
Cu Conductor
No. X mm2
mm
mm
mm
mm
mm
mm
mm
kg/m
kg/m
3 X 25
6.0
4.5
0.1
1.4
0.5
2.1
48.6
2.53
2.98
3 X 35
6.9
4.5
0.1
1.4
0.5
2.2
50.7
2.76
3.39
3 X50
8.2
4.5
0.1
1.5
0.5
2.3
53.9
3.10
3.95
3 X 70
9.7
4.5
0.1
1.5
0.5
2.4
57.4
3.51
4.74
3 X 95
11.3
4.5
0.1
1.5
0.5
2.6
61.2
4.05
5.75
3 X 120
12.8
4.5
0.1
1.6
0.5
2.6
64.7
4.56
6.72
3 X 150
14.2
4.5
0.1
1.6
0.5
2.7
67.9
5.04
7.74
3 X 185
15.9
4.5
0.1
1.7
0.5
2.8
71.9
5.66
9.04
3 X 240
18.3
4.5
0.1
1.8
0.5
3.0
77.7
6.56
11.00
3 X 300
20.4
4.5
0.1
1.9
0.8
3.2
84.1
8.39
13.96
3 X 400
23.2
4.5
0.1
2.0
0.8
3.3
90.5
9.71
16.79
3 X 500
26.4
4.5
0.1
2.1
0.8
3.5
98.8
11.45
20.57

4)12/20(24)kV, 12.7/22(24)kV,Three Cores,Al or Cu/XLPE/CTS/STA/PVC Armoured Power Cable
No.X Nominal Cross Section of Conductor
Nominal Diameter of Conductor
Nominal Thickness of Insulation
Nominal Thickness of Copper Tape Screen
Nominal Thickness of Inner Sheath
Nominal Thickness of Steel Tape Armouring
Nominal Thickness of PVC Sheath
Approx. Overall Diameter
Approx. Weight
Al Conductor
Cu Conductor
No. X mm2
mm
mm
mm
mm
mm
mm
mm
kg/m
kg/m
3 X 25









3 X 35
6.9
5.5
0.1
1.5
0.5
2.4
55.6
3.14
3.77
3 X50
8.2
5.5
0.1
1.5
0.5
2.5
58.6
3.49
4.34
3 X 70
9.7
5.5
0.1
1.5
0.5
2.6
62.1
3.93
5.16
3 X 95
11.3
5.5
0.1
1.6
0.5
2.6
65.7
4.46
6.16
3 X 120
12.8
5.5
0.1
1.7
0.5
2.7
69.4
5.00
7.15
3 X 150
14.2
5.5
0.1
1.7
0.5
2.8
72.6
5.49
8.19
3 X 185
15.9
5.5
0.1
1.8
0.5
3.0
76.9
6.16
9.53
3 X 240
18.3
5.5
0.1
1.9
0.8
3.2
83.9
7.87
12.31
3 X 300
20.4
5.5
0.1
2.0
0.8
3.2
88.6
8.96
14.52
3 X 400
23.2
5.5
0.1
2.1
0.8
3.5
95.4
10.35
17.43
3 X 500
26.4
5.5
0.1
2.2
0.8
3.7
103.7
12.45
20.23

5)18/30(36)kV,19/33(36)kV,Three Cores,Al or Cu/XLPE/CTS/STA/PVC Armoured Power Cable
No.X Nominal Cross Section of Conductor
Nominal Diameter of Conductor
Nominal Thickness of Insulation
Nominal Thickness of Copper Tape Screen
Nominal Thickness of Inner Sheath
Nominal Thickness of Steel Tape Armouring
Nominal Thickness of PVC Sheath
Approx. Overall Diameter
Approx. Weight
Al Conductor
Cu Conductor
No. X mm2
mm
mm
mm
mm
mm
mm
mm
kg/m
kg/m
3 X 25









3 X 35









3 X50
8.2
8.0
0.1
1.7
0.5
2.8
70.4
4.56
5.41
3 X 70
9.7
8.0
0.1
1.7
0.5
2.9
73.9
5.04
6.26
3 X 95
11.3
8.0
0.1
1.8
0.5
3.0
77.7
5.62
7.32
3 X 120
12.8
8.0
0.1
1.9
0.8
3.2
82.8
6.99
9.15
3 X 150
14.2
8.0
0.1
1.9
0.8
3.2
85.8
7.56
10.26
3 X 185
15.9
8.0
0.1
2.0
0.8
3.3
89.9
8.30
11.67
3 X 240
18.3
8.0
0.1
2.1
0.8
3.5
95.7
9.36
13.79
3 X 300
20.4
8.0
0.1
2.2
0.8
3.6
100.6
10.51
16.07
3 X 400
23.2
8.0
0.1
2.3
0.8
3.8
107.2
11.99
19.07
3 X 500
26.4
8.0
0.1
2.4
0.8
4.0
120.1
14.15
23.85
 FACTORY VIEW

QC&QA

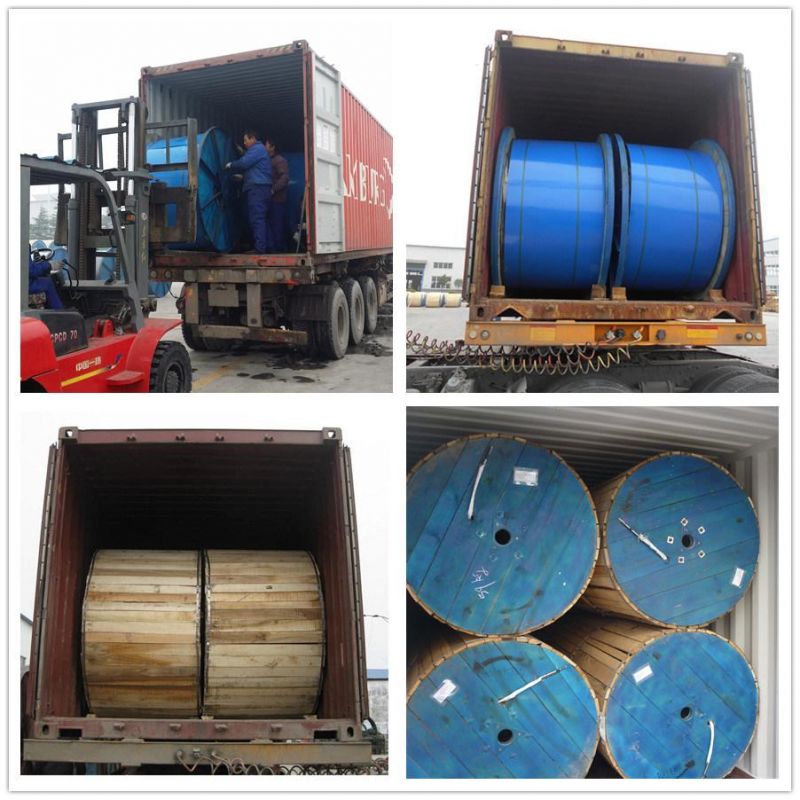

LOADING DETAILS
