Special-PUR Control Cable Jz-500-FC-PUR Electrical Wire 300/500V

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Electrical Facilities
  • Conductor Material：Copper
  • Sheath Material：Full PUR Compound Type Tmpu to DIN En 50363-10-2
  • Insulation Material：PUR

Base Info

  • Model NO.：JZ-500-FC-PUR
  • Material Shape：Round Wire
  • Range of Application：Cold-Resistant
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

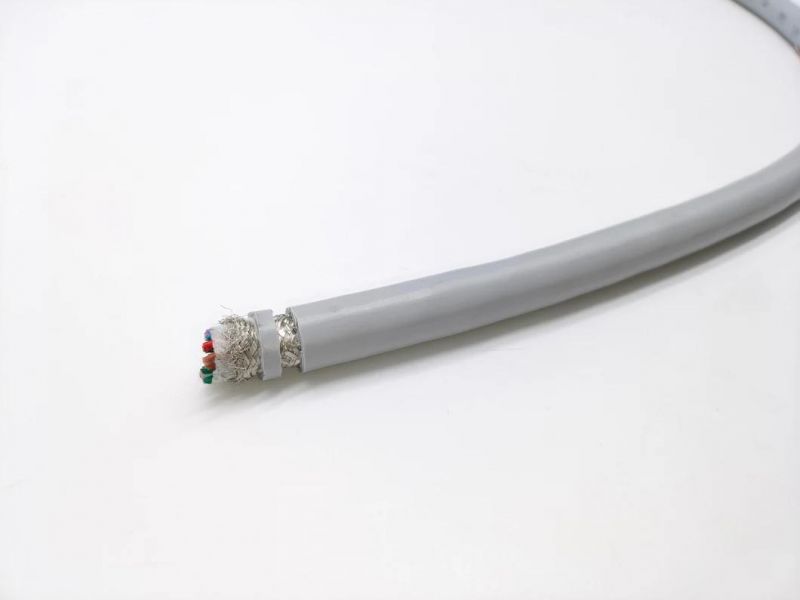

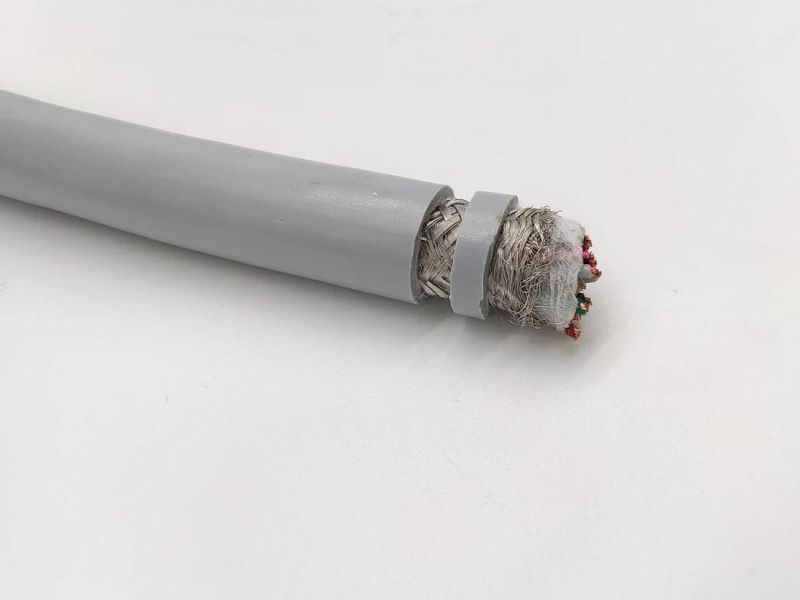

ItemSpecial-PUR Control CableConductorConductor consisting of bare copper wiresInsulationSpecial PVC compound type TI2 to DIN VDE 0207-363-3 / DIN EN 50363-3ScreenTinned copper braided screen, approx. 85% coverageWrappingCore wrapping of fleeceOuter SheathSpecial full polyurethane compound type TMPU to DIN EN 50363-10-2Nominal VoltageU0/U 300/500 VTemperature RangeFlexing -10°C to +80°C
Fixed installation -40°C to +80°CColorOptionalCertificationCE/ULApplicationExtremely robust cable noted for its good abrasion resistance and notch resistance. Due to its resistance to coolant emulsions, this cable is well suited for use in mechanical engineering, tool making, and systems engineering, and in steel mills and rolling mills in particularly critical areas. Good flexibility means that installation is quick and easy. Suitable for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms, and in open air (fixed installation). The dense screening assures interference-free transmission of all signals and impulses. An ideal interference-free control cable for the above applications.
